• Configurable PVID Tagging – This switch allows you to override
the default Port VLAN ID (PVID used in frame tags) and egress status
(VLAN-Tagged or Untagged) on each port. (Refer to "VLAN
Configuration" on page 3-161.)
• Local VLAN Capable – This switch supports multiple local bridges;
i.e., multiple spanning trees. (Refer to "VLAN Configuration" on page
3-161.)
• GMRP – GARP Multicast Registration Protocol (GMRP) allows
network devices to register endstations with multicast groups. This
switch does not support GMRP; it uses the Internet Group
Management Protocol (IGMP) to provide automatic multicast
filtering.
Web – Click System, Bridge Extension Configuration.
3-18
S
WITCH

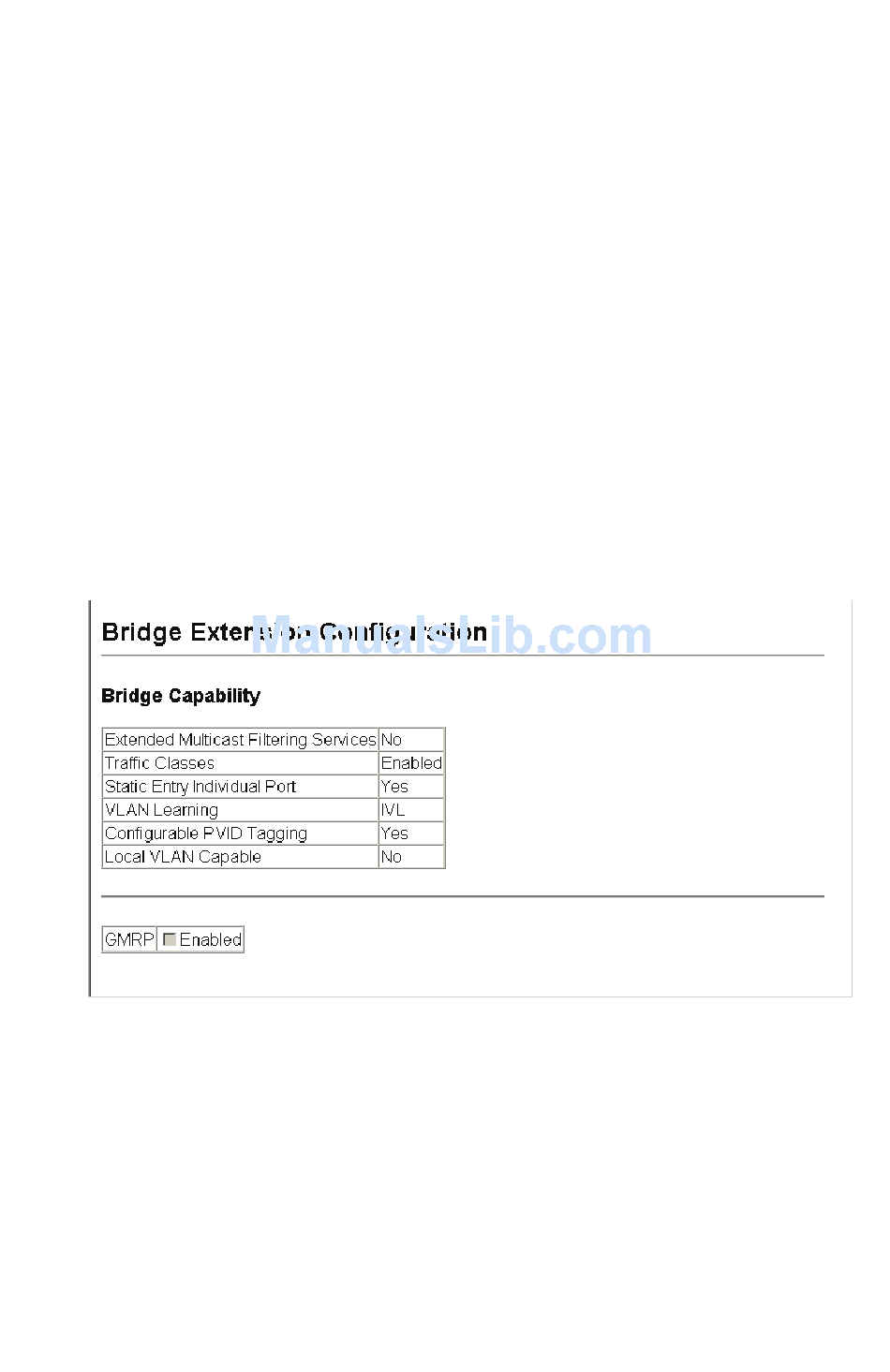

Figure 3-5. Bridge Extension Configuration
