Enabling Cos; Selecting The Queue Mode; Figure 3-84. Enable Traffic Classes - SMC Networks 6152L2 - annexe 1 Management Manual

C
ONFIGURING THE

Enabling CoS

Enable or disable Class of Service (CoS). Command Attributes.
Command Attributes
• Traffic Classes - Click to enable Class of Service. (Default: Enabled)
Web – Click Priority, Traffic Classes Status.

Selecting the Queue Mode

You can set the switch to service the queues based on a strict rule that
requires all traffic in a higher priority queue to be processed before lower
priority queues are serviced, or use Weighted Round-Robin (WRR)
queuing that specifies a relative weight of each queue. WRR uses a
predefined relative weight for each queue that determines the percentage
of service time the switch services each queue before moving on to the
next queue. This prevents the head-of-line blocking that can occur with
strict priority queuing.
Command Attributes
• WRR - Weighted Round-Robin shares bandwidth at the egress ports
by using scheduling weights 1, 2, 4, 6, 8, 10, 12, 14 for queues 0 through
7 respectively. (This is the default selection.)
• Strict - Services the egress queues in sequential order, transmitting all
traffic in the higher priority queues before servicing lower priority
queues.
3-190
S
WITCH

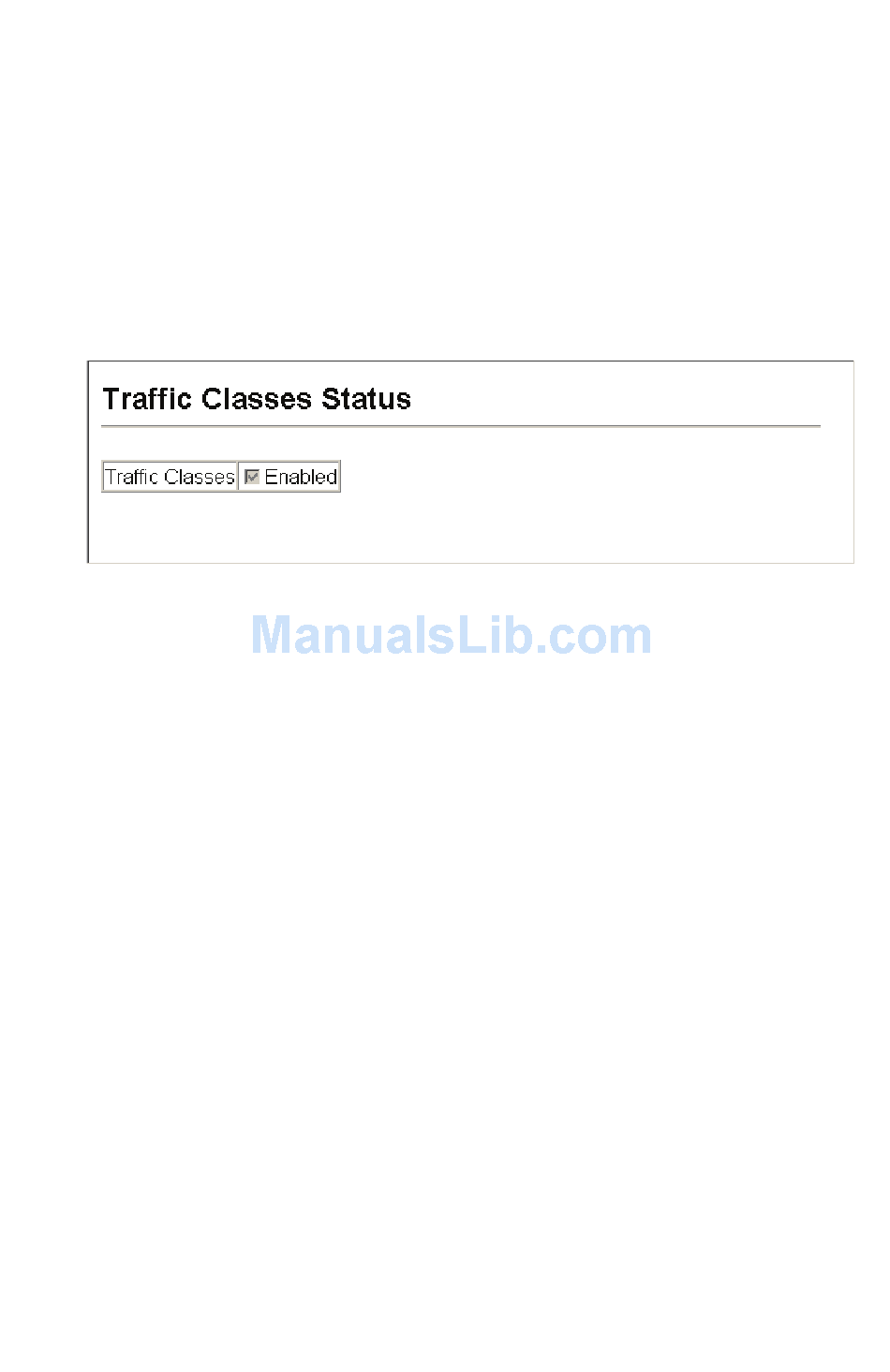

Figure 3-84. Enable Traffic Classes
