- Receiver – A subscriber port that can receive multicast data sent
through the MVR VLAN.
- Non-MVR – An interface that does not participate in the MVR
VLAN. (This is the default type.)
• Immediate Leave – Configures the switch to immediately remove an
interface from a multicast stream as soon as it receives a leave message
for that group.
• Trunk – Shows if port is a trunk member (Port Configuration only).
Web – Click MVR, Port or Trunk Configuration.

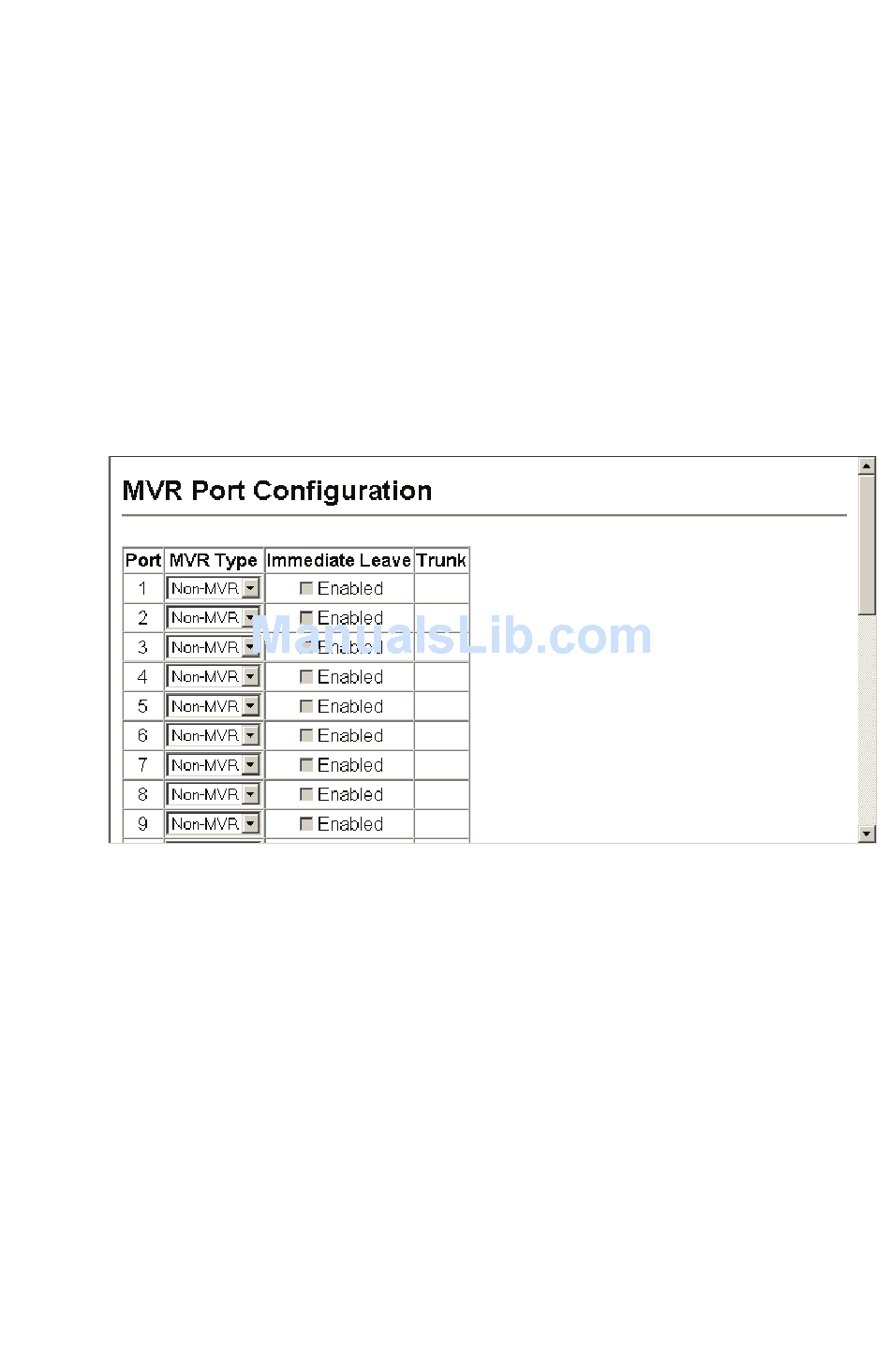

Figure 3-104. MVR Port Configuration

M VLAN R
ULTICAST EGISTRATION
3-225
