Binding a Port to an Access Control List

After configuring the Access Control Lists (ACL), you can bind the ports
that need to filter traffic to the appropriate ACLs. You can assign one IP
access list to any port.
Command Usage
• Each ACL can have up to 60 rules.
• This switch supports ACLs for ingress filtering only. However, you can
only bind one IP or MAC ACL to any port for ingress filtering. In
other words, only one ACL can be bound to an interface - Ingress IP
or MAC ACL.
Command Attributes
• Port – Fixed port or SFP module. (Range: 1-52)
• IP – Specifies the IP ACL to bind to a port.
• MAC – Specifies the MAC ACL to bind to a port.
• IN – ACL for ingress packets.
• ACL Name – Name of the ACL.
Web – Click Security, ACL, Port Binding. Mark the Enable field for the
port you want to bind to an ACL for ingress traffic, select the required
ACL from the drop-down list, then click Apply.

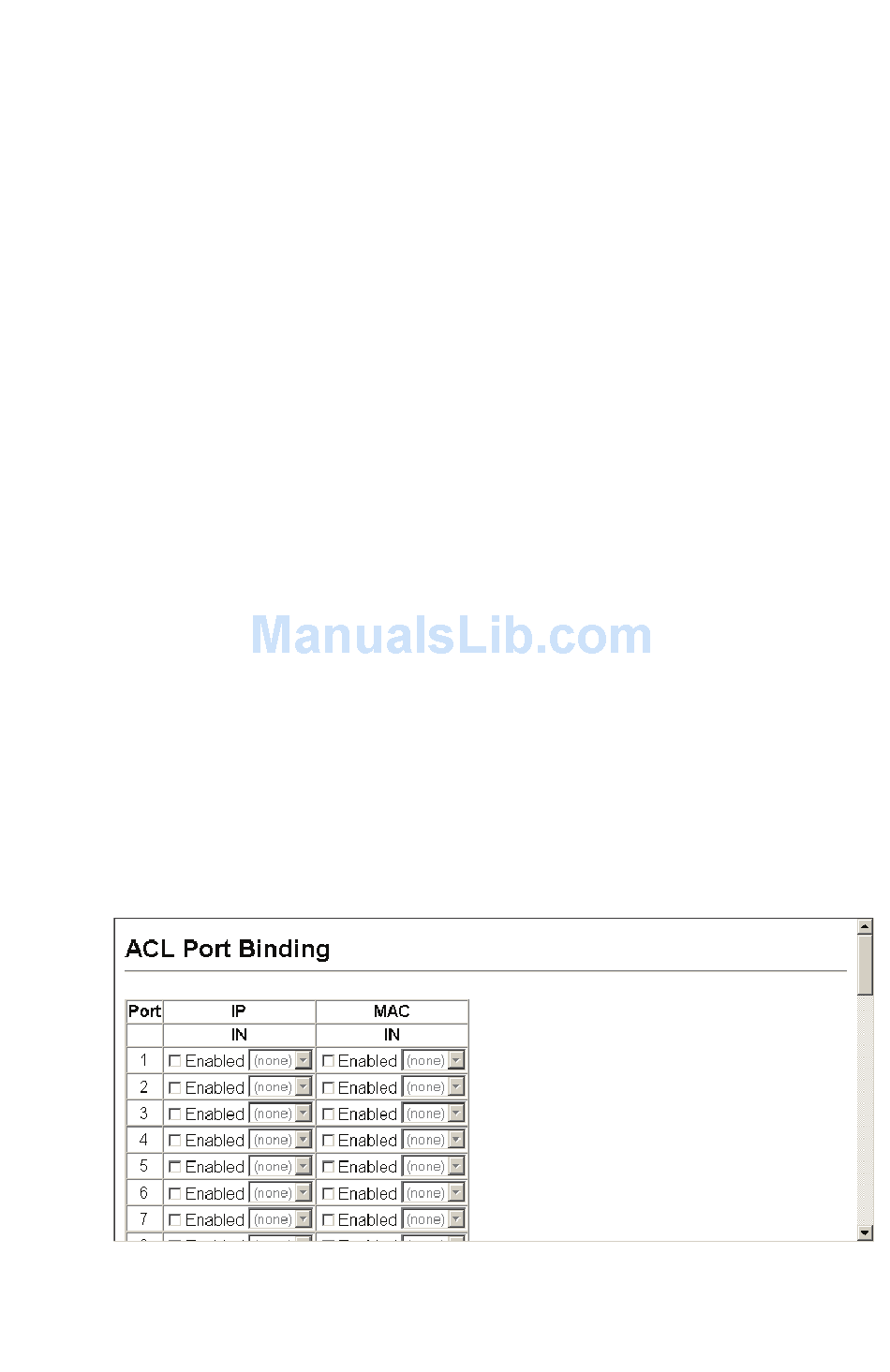

Figure 3-47. Mapping ACLs to Port Ingress Queues

A C
CCESS ONTROL
L
ISTS
3-105
