Figure 3-14. Console Port Setting - SMC Networks 6152L2 - annexe 1 Management Manual

Available in CLI only:
• Password – Specifies a password for the line connection. When a
connection is started on a line with password protection, the system
prompts for the password. If you enter the correct password, the
system shows a prompt. (Default: No password)
• Login – Enables password checking at login. You can select
authentication by a single global password as configured for the
Password parameter, or by passwords set up for specific user-name
accounts. (Default: Local)
Web – Click System, Line, Console. Specify the console port connection
parameters as required, then click Apply.

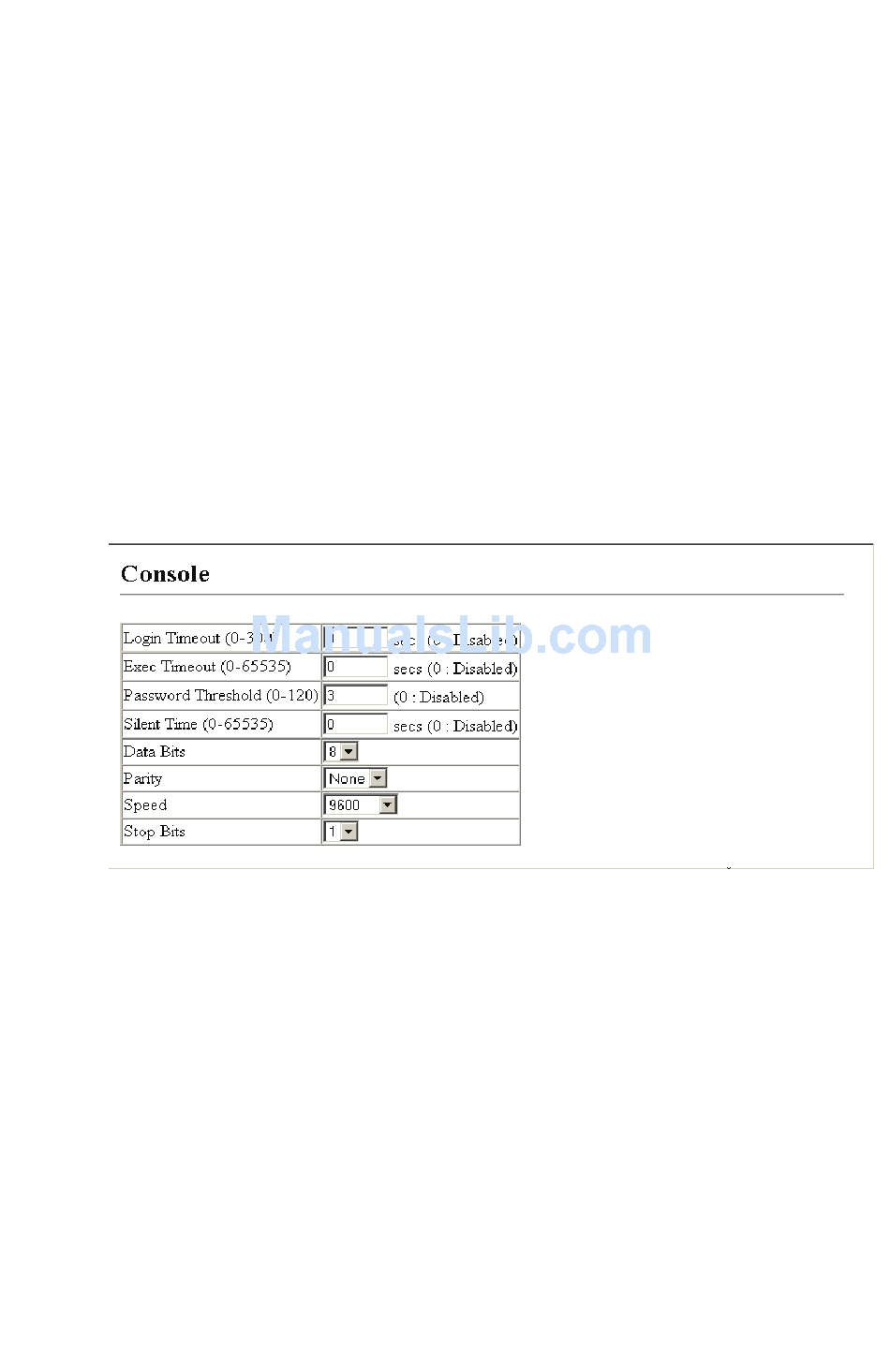

Figure 3-14. Console Port Setting

B C
ASIC ONFIGURATION
3-31
