Web – Click VLAN, 802.1Q VLAN, Port Configuration or Trunk
Configuration. Fill in the required settings for each interface, click Apply.
CLI – This example sets port 3 to accept only tagged frames, assigns
PVID 3 as the native VLAN ID, and then sets the switchport mode to
hybrid.
Console(config)#interface ethernet 1/3
Console(config-if)#switchport acceptable-frame-types tagged
Console(config-if)#switchport ingress-filtering
Console(config-if)#switchport native vlan 3
Console(config-if)#switchport gvrp
Console(config-if)#switchport mode hybrid
Console(config-if)#

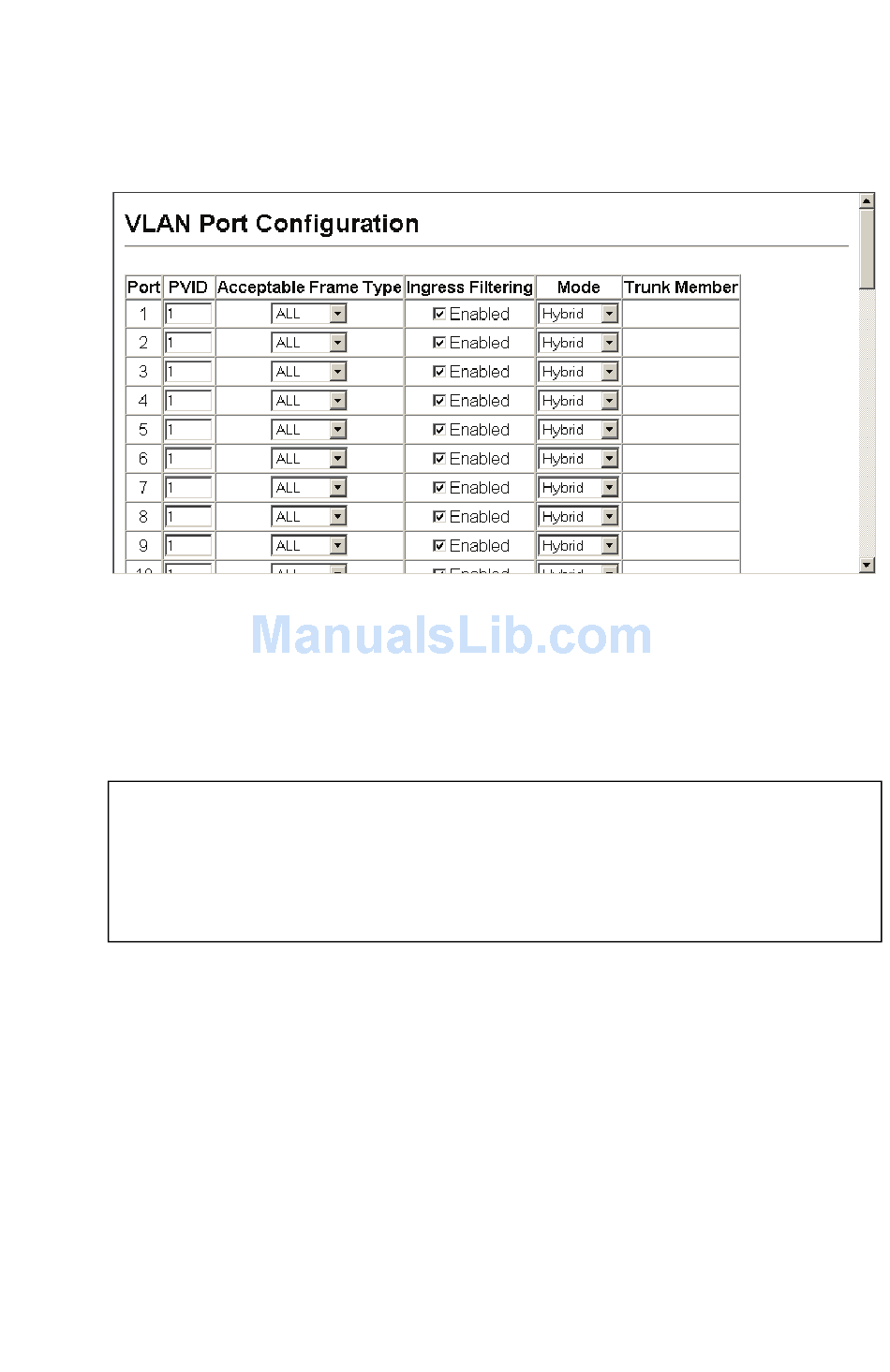

Figure 3-74. Configuring VLAN Ports

VLAN C
ONFIGURATION
4-146
4-202
4-204
4-205
4-218
4-202
3-175
