C
ONFIGURING THE
Web – Specify the action (i.e., Permit or Deny). Select the address type
(Any, Host, or IP). If you select "Host," enter a specific address. If you
select "IP," enter a subnet address and the mask for an address range. Then
click Add.
CLI – This example configures one permit rule for the specific address
10.1.1.21 and another rule for the address range 168.92.16.x – 168.92.31.x
using a bitmask.
Console(config-std-acl)#permit host 10.1.1.21
Console(config-std-acl)#permit 168.92.16.0 255.255.240.0
Console(config-std-acl)#

Configuring an Extended IP ACL

Command Attributes
• Action – An ACL can contain either all permit rules or all deny rules.
(Default: Permit rules)
• Src/Dst Address Type – Specifies the source or destination IP
address. Use "Any" to include all possible addresses, "Host" to specify
a specific host address in the Address field, or "IP" to specify a range
3-100
S
WITCH

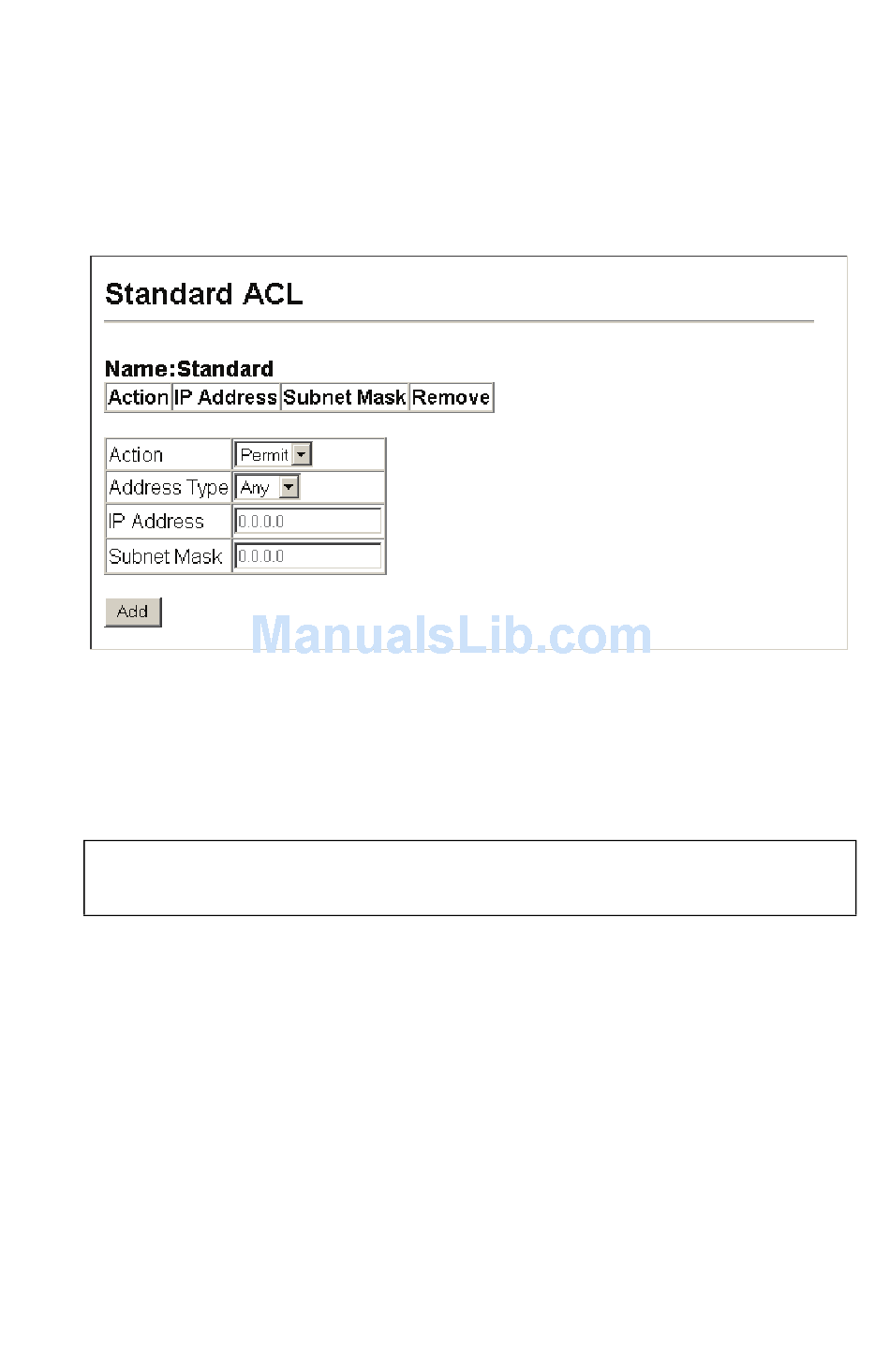

Figure 3-44. Configuring Standard IP ACLs

4-116
