Configuring A Standard Ip Acl; Figure 3-43. Naming And Choosing Acls - SMC Networks 6152L2 - annexe 1 Management Manual

Web – Click Security, ACL, Configuration. Enter an ACL name in the
Name field, select the list type (IP Standard, IP Extended, or MAC), and
click Add to open the configuration page for the new list.

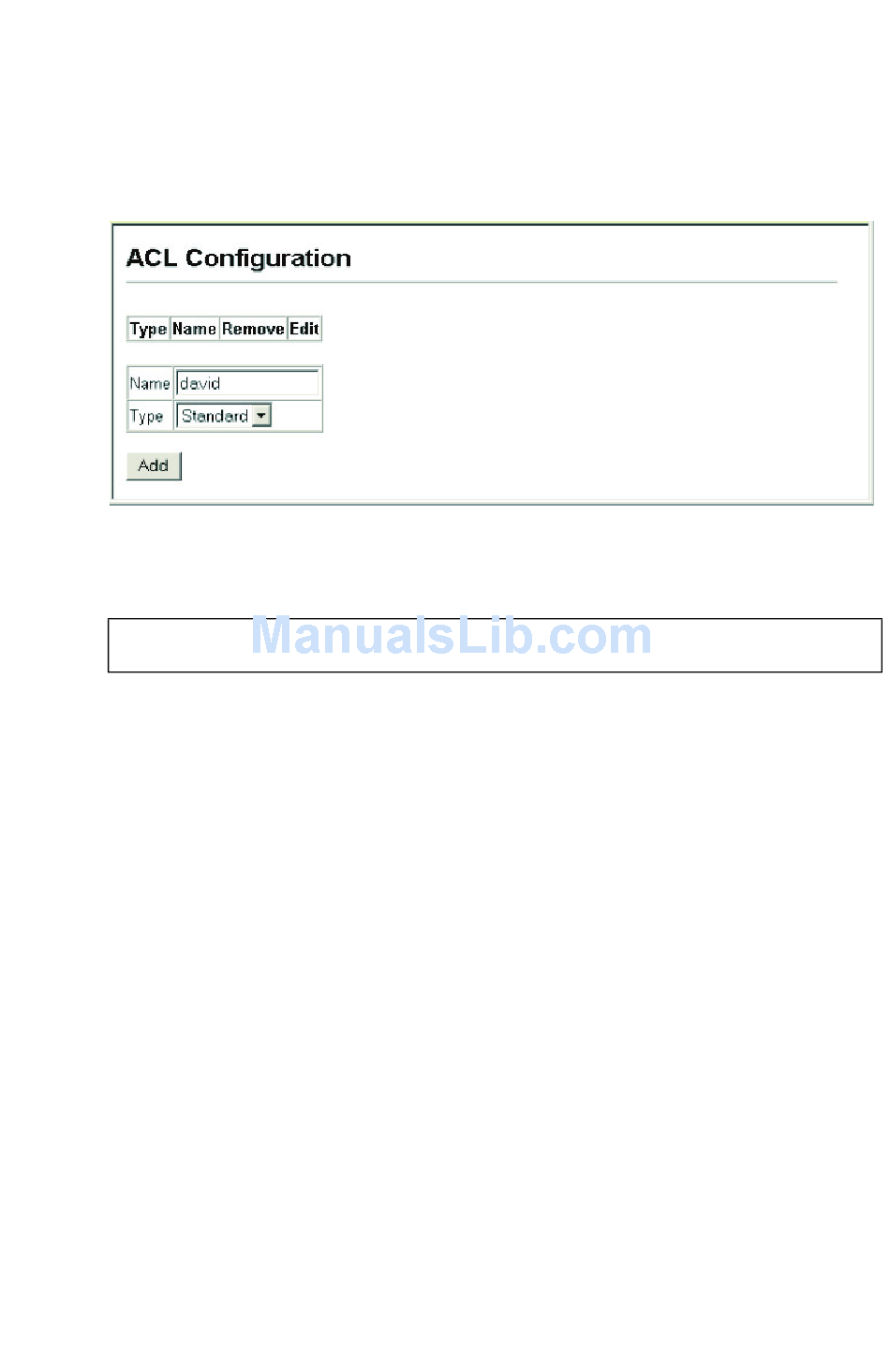

Figure 3-43. Naming and Choosing ACLs

CLI – This example creates a standard IP ACL named bill.
Console(config)#access-list ip standard bill
Console(config-std-acl)#

Configuring a Standard IP ACL

Command Attributes
• Action – An ACL can contain all permit rules or all deny rules.
(Default: Permit rules)
• Address Type – Specifies the source IP address. Use "Any" to include
all possible addresses, "Host" to specify a specific host address in the
Address field, or "IP" to specify a range of addresses with the Address
and SubMask fields. (Options: Any, Host, IP; Default: Any)
• IP Address – Source IP address.
• Subnet Mask – A subnet mask containing four integers from 0 to 255,
each separated by a period. The mask uses 1 bits to indicate "match"
and 0 bits to indicate "ignore." The mask is bitwise ANDed with the
specified source IP address, and compared with the address for each
IP packet entering the port(s) to which this ACL has been assigned.
