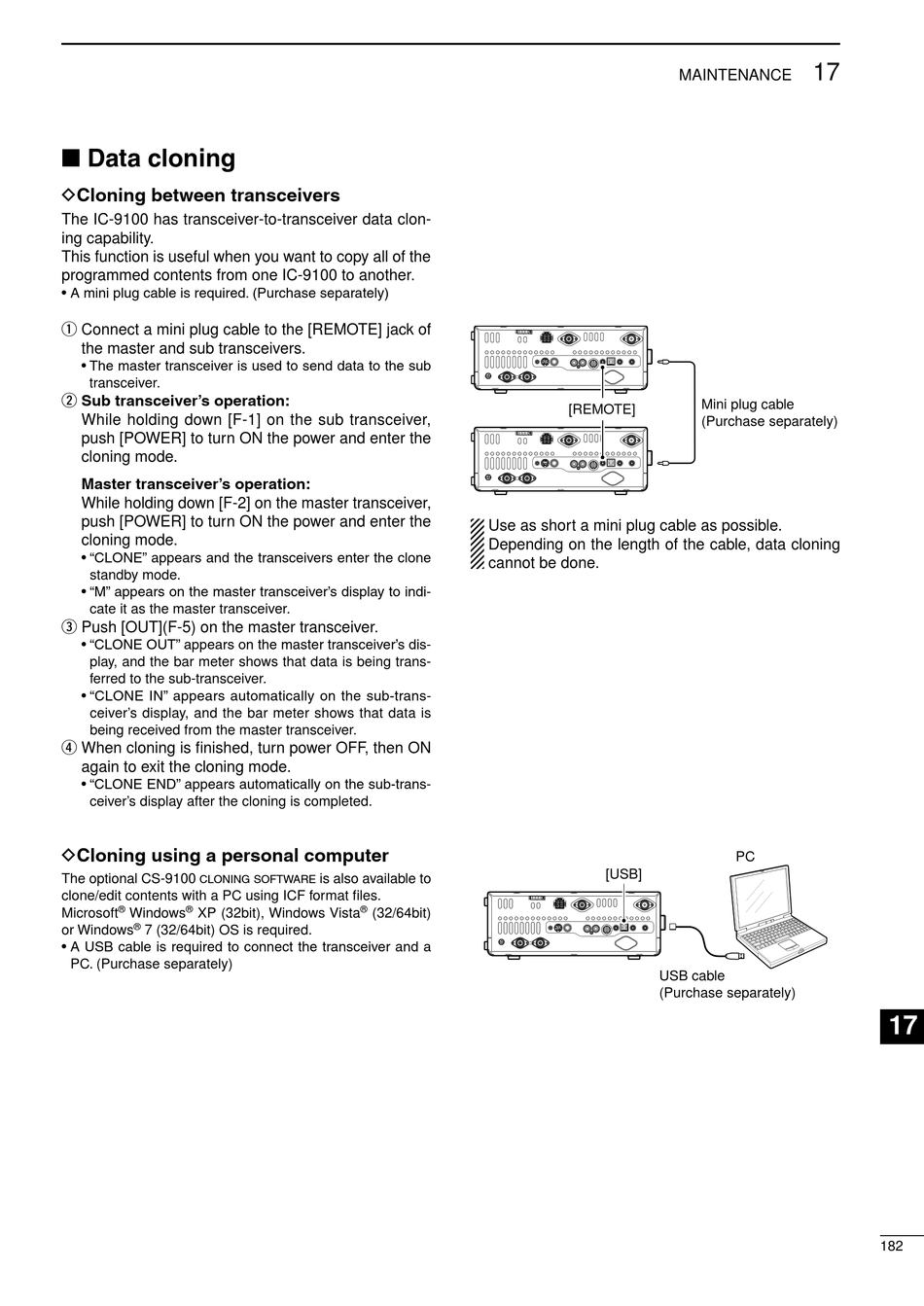

■ Data cloning

DCloning between transceivers

The IC-9100 has transceiver-to-transceiver data clon-
ing capability.
This function is useful when you want to copy all of the
programmed contents from one IC-9100 to another.
• A mini plug cable is required. (Purchase separately)
q Connect a mini plug cable to the [REMOTE] jack of
the master and sub transceivers.
• The master transceiver is used to send data to the sub
transceiver.
w Sub transceiver's operation:
While holding down [F-1] on the sub transceiver,
push [POWER] to turn ON the power and enter the
cloning mode.
Master transceiver's operation:
While holding down [F-2] on the master transceiver,
push [POWER] to turn ON the power and enter the
cloning mode.
• "CLONE" appears and the transceivers enter the clone
standby mode.
• "M" appears on the master transceiver's display to indi-
cate it as the master transceiver.
e Push [OUT](F-5) on the master transceiver.
• "CLONE OUT" appears on the master transceiver's dis-
play, and the bar meter shows that data is being trans-
ferred to the sub-transceiver.
• "CLONE IN" appears automatically on the sub-trans-
ceiver's display, and the bar meter shows that data is
being received from the master transceiver.
r When cloning is finished, turn power OFF, then ON
again to exit the cloning mode.
• "CLONE END" appears automatically on the sub-trans-
ceiver's display after the cloning is completed.

DCloning using a personal computer

The optional CS-9100 cloning software
clone/edit contents with a PC using ICF format files.
® ®
Microsoft Windows XP (32bit), Windows Vista
®
or Windows 7 (32/64bit) OS is required.
• A USB cable is required to connect the transceiver and a
PC. (Purchase separately)
Use as short a mini plug cable as possible.
Depending on the length of the cable, data cloning
cannot be done.
is also available to
®
(32/64bit)

MAINTENANCE

Mini plug cable
[REMOTE]
(Purchase separately)
PC
[USB]
USB cable
(Purchase separately)
