Data Cloning Between Transceivers - Icom IC-78 Instruction Manual

8

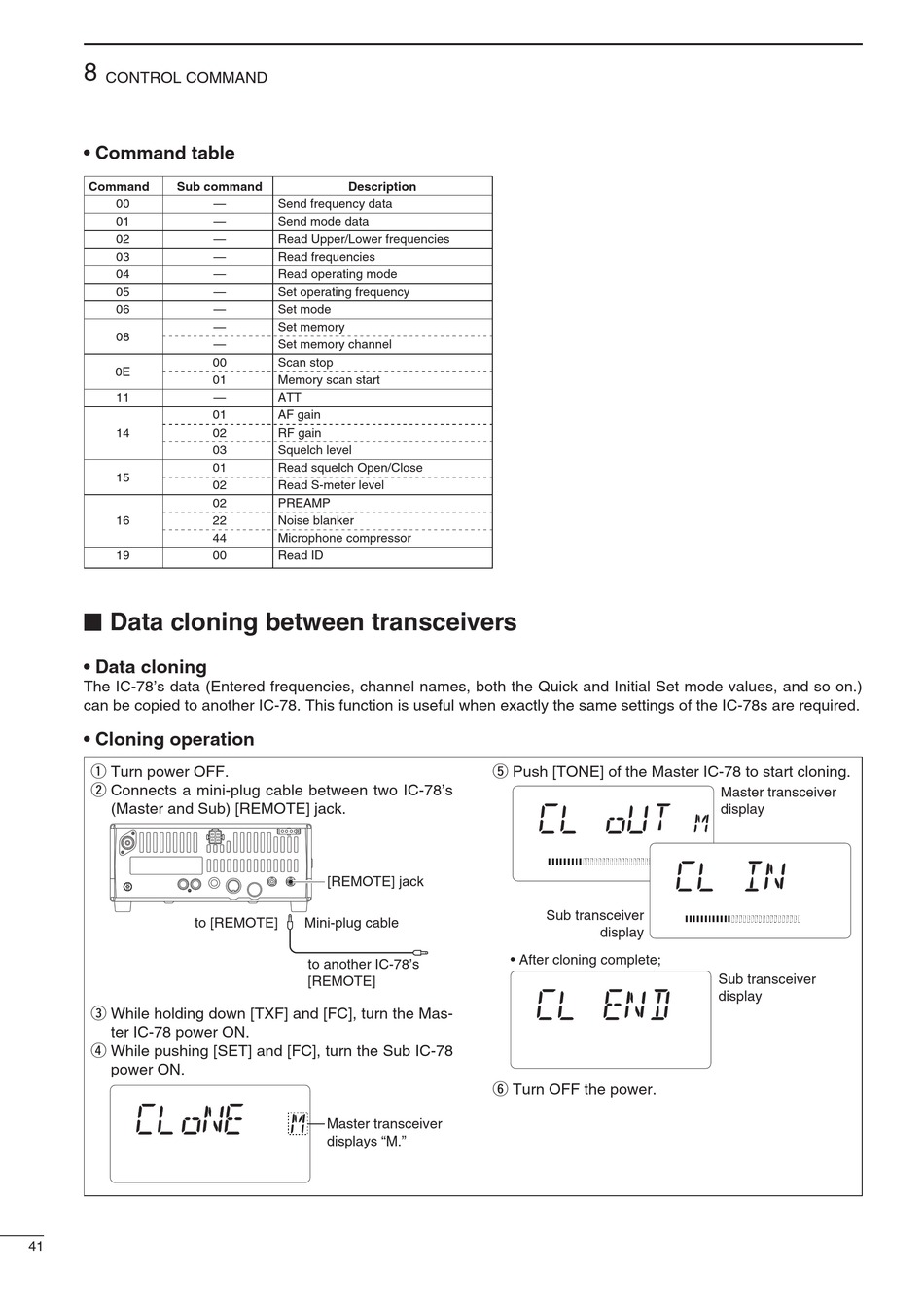

CONTROL COMMAND
• Command table
Command Sub command
00
01
02
03
04
05
06
08
0E
11
14
15
16
19

Data cloning between transceivers

n
• Data cloning
The IC-78's data (Entered frequencies, channel names, both the Quick and Initial Set mode values, and so on.)
can be copied to another IC-78. This function is useful when exactly the same settings of the IC-78s are required.
• Cloning operation
q Turn power OFF.
w Connects a mini-plug cable between two IC-78's
(Master and Sub) [REMOTE] jack.
to [REMOTE]
e While holding down [TXF] and [FC], turn the Mas-
ter IC-78 power ON.
r While pushing [SET] and [FC], turn the Sub IC-78
power ON.
41
Description
— Send frequency data
— Send mode data
— Read Upper/Lower frequencies
— Read frequencies
— Read operating mode
— Set operating frequency
— Set mode
— Set memory
— Set memory channel
00 Scan stop
01 Memory scan start
— ATT
01 AF gain
02 RF gain
03 Squelch level
01 Read squelch Open/Close
02 Read S-meter level
02 PREAMP
22 Noise blanker
44 Microphone compressor
00 Read ID
[REMOTE] jack
Mini-plug cable
to another IC-78's
[REMOTE]
Master transceiver
displays "M."
t Push [TONE] of the Master IC-78 to start cloning.
Sub transceiver
display
• After cloning complete;
y Turn OFF the power.
Master transceiver
display
Sub transceiver
display
