5 Mechanical Installation

5.1 Installation Requirements

• Make sure that the ambient conditions at the installation location comply with the specifications in
• Install the drive on a solid and level surface.
• Make sure that the mounting surface can support the weight of the drive. See
• Make sure that the mounting surface is non-combustible.

5.2 Installing the Enclosed Drive

Procedure
1. Attach the enclosed drive to the floor and to the wall using the mounting holes.
There are 2 mounting holes at the rear top, 6 mounting holes at the front bottom, and 6 mounting holes at the rear bot-
tom.

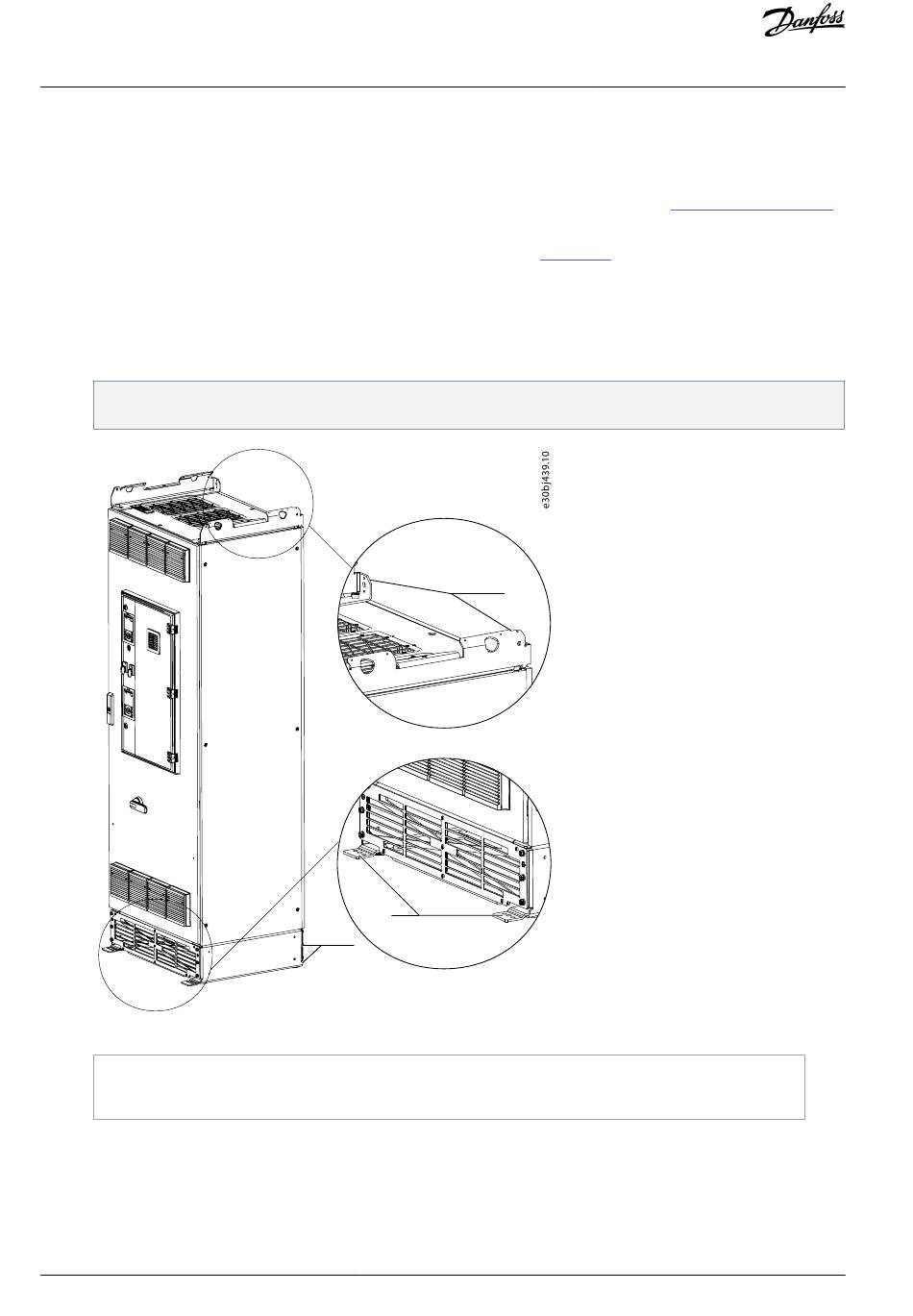

Illustration 8: Installing the Enclosed Drive, FE9, FE10
1 Mounting holes at the top
2 Mounting holes at the bottom

5.3 Cooling Requirements

5.3.1 General Cooling Requirements

The power units produce heat in operation. The fans circulate air and decrease the temperature of the drive. Make sure that there is
sufficiently free space around the drive.
