Wiring Diagram, 2 X Ae10+2 X Ie10, 1000-1100 A - Danfoss iC7-60EA3N05-206A Operating Manual

iC7-Automation Air-cooled Enclosed Drives
Operating Guide
DC+
DC-
1 1
-FC2.1 -FC2.2
2 2
-TB1.1
DC+ DC-
A
L1 L2 L3
PE
Illustration 62: Wiring Diagram, AE11+IE11, 658–880 A (continued)
A Power unit of the AFE module
B Power unit of the inverter module

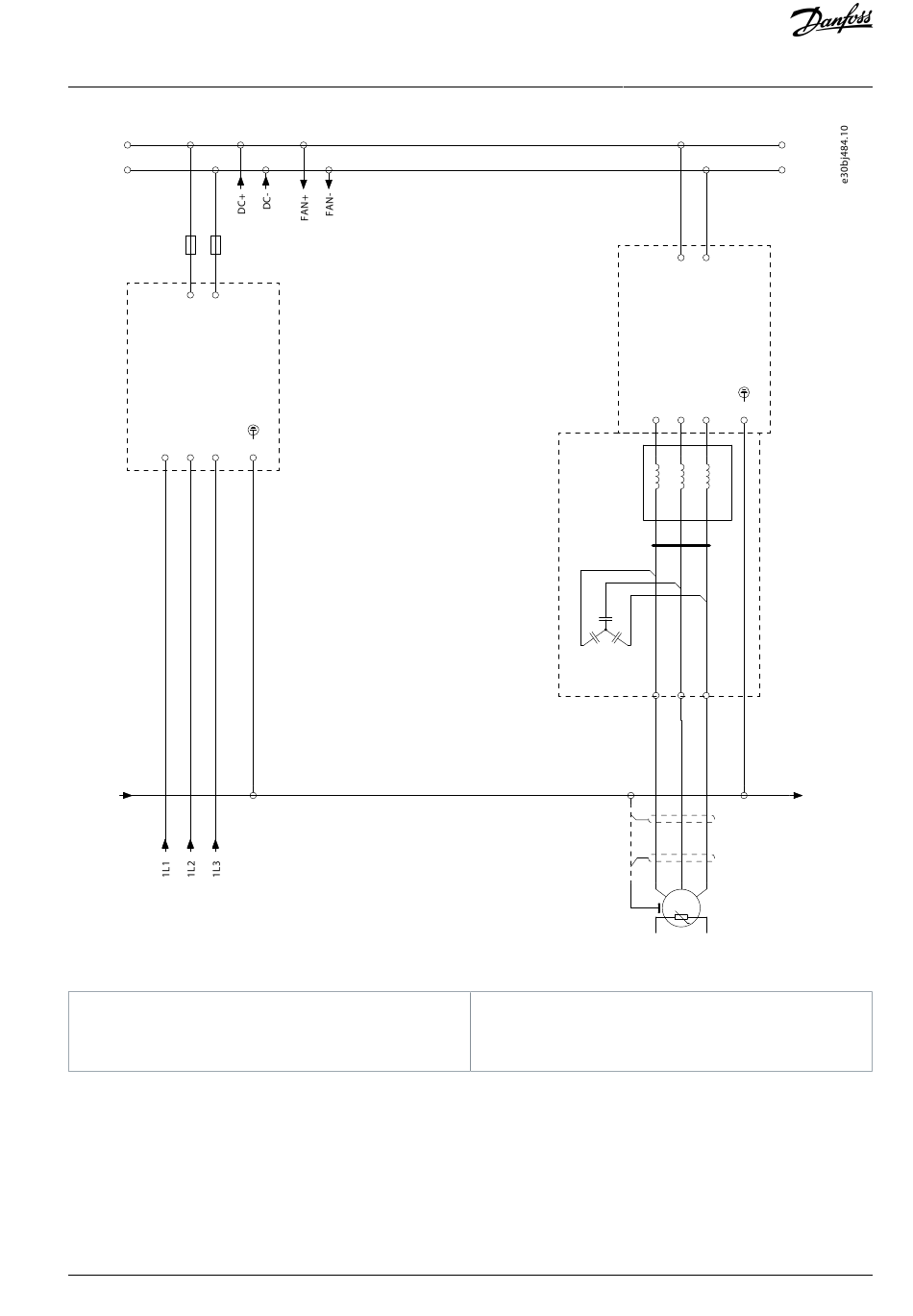

10.3.4 Wiring Diagram, 2 x AE10+2 x IE10, 1000–1100 A
Danfoss A/S © 2023.09
PE
-TB2.1
U
-TB2.1
+MAU1
+MAU2
C
+MAC2
+MAU2
+MAU1
+MAU2
PE
PE
C Integration unit
AQ330347384398en-000201 / 139Z8096 | 87
Specifications
DC+
DC-
DC+ DC-
B
V W
PE
V1 W1
U1
U2 V2 W2
+MAXX
U/T1 V/T2 W/T3
PE
U1 V1 W1
M
3~
Θ
1 2
