3.1 Unpacking

3.1.1 Items Supplied
Items supplied may vary according to product configu-
ration.
•
Make sure that the items supplied and the
information on the nameplate correspond to the
order confirmation.
•
Check the packaging and the frequency converter
visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts
for clarification.
MG07A402
Operating Guide
1
VLT
21
20
T/C: FC-280PK37T4E20H1BXCXXXSXXXXAX
19
P/N: 134U2184
0.37kW 0.5HP
18
IN: 3x380-480V 50/60Hz, 1.2/1.0A
OUT: 3x0-Vin 0-500Hz, 1.2/1.1A
17
IP20
16
Danfoss A/S, 6430 Nordborg, Denmark
15
14
1 Product logo
2 Product name
3 Disposal
4 CE mark
5 Serial number
6 TÜV logo
7 UkrSEPRO logo
8 Barcode
9 Country of origin
10 Reference to enclosure type
11 EAC logo
12 RCM logo
13 UL reference
14 Warning specifications
15 UL logo
16 IP rating
Output voltage, frequency, and current (at low/high
17
voltages)
Input voltage, frequency, and current (at low/high
18
voltages)
19 Power rating
20 Ordering number
21 Type code

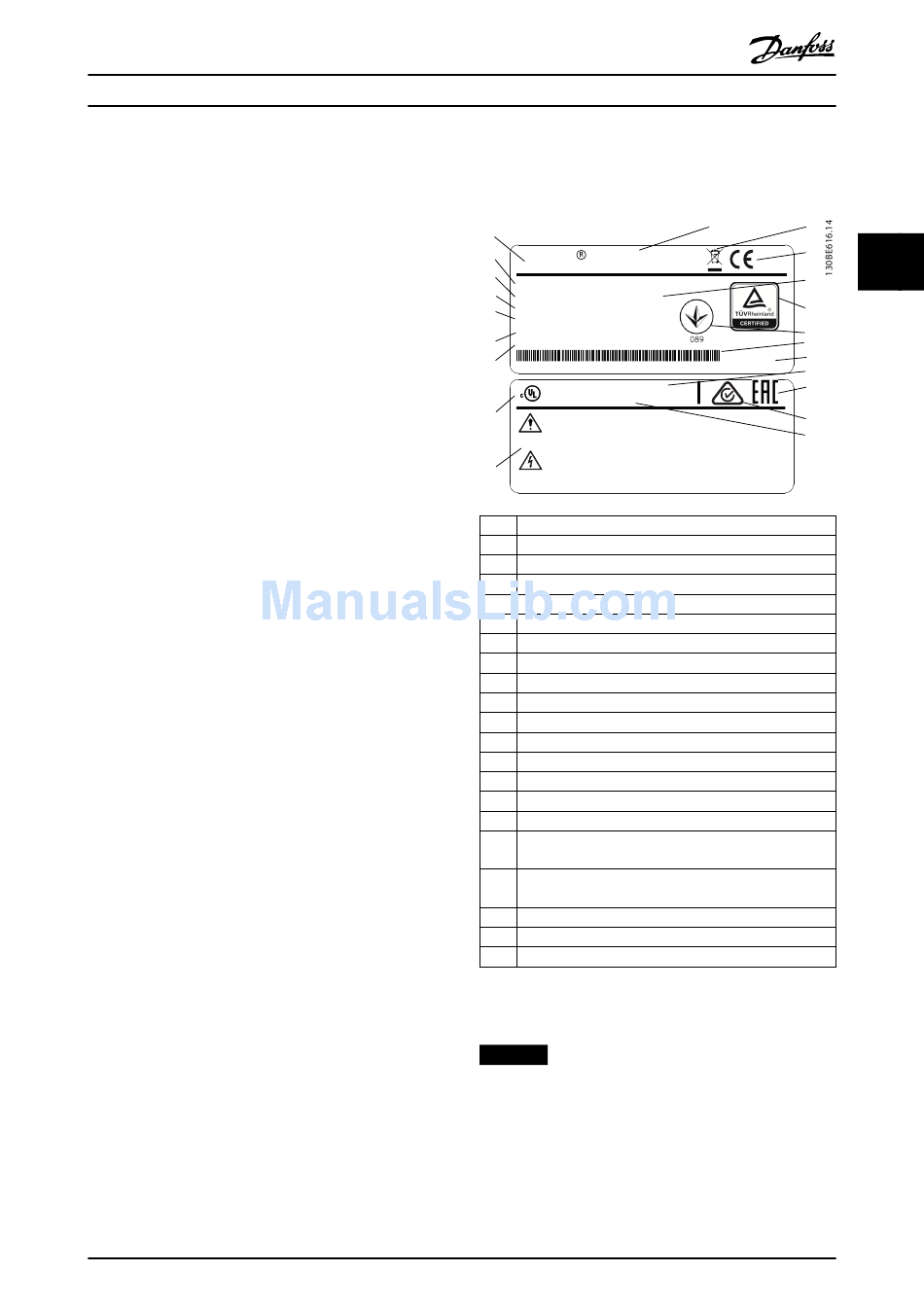

Illustration 3.1 Product Nameplate (Example)
NOTICE
Do not remove the nameplate from the frequency
converter (loss of warranty).
For more information of the type code, refer to the
chapter Type Code in the VLT
Guide.
