iC7-Automation Air-cooled Enclosed Drives
Operating Guide

3.5 Interior View of the Cabinet, FE9

1
2
3
4
5

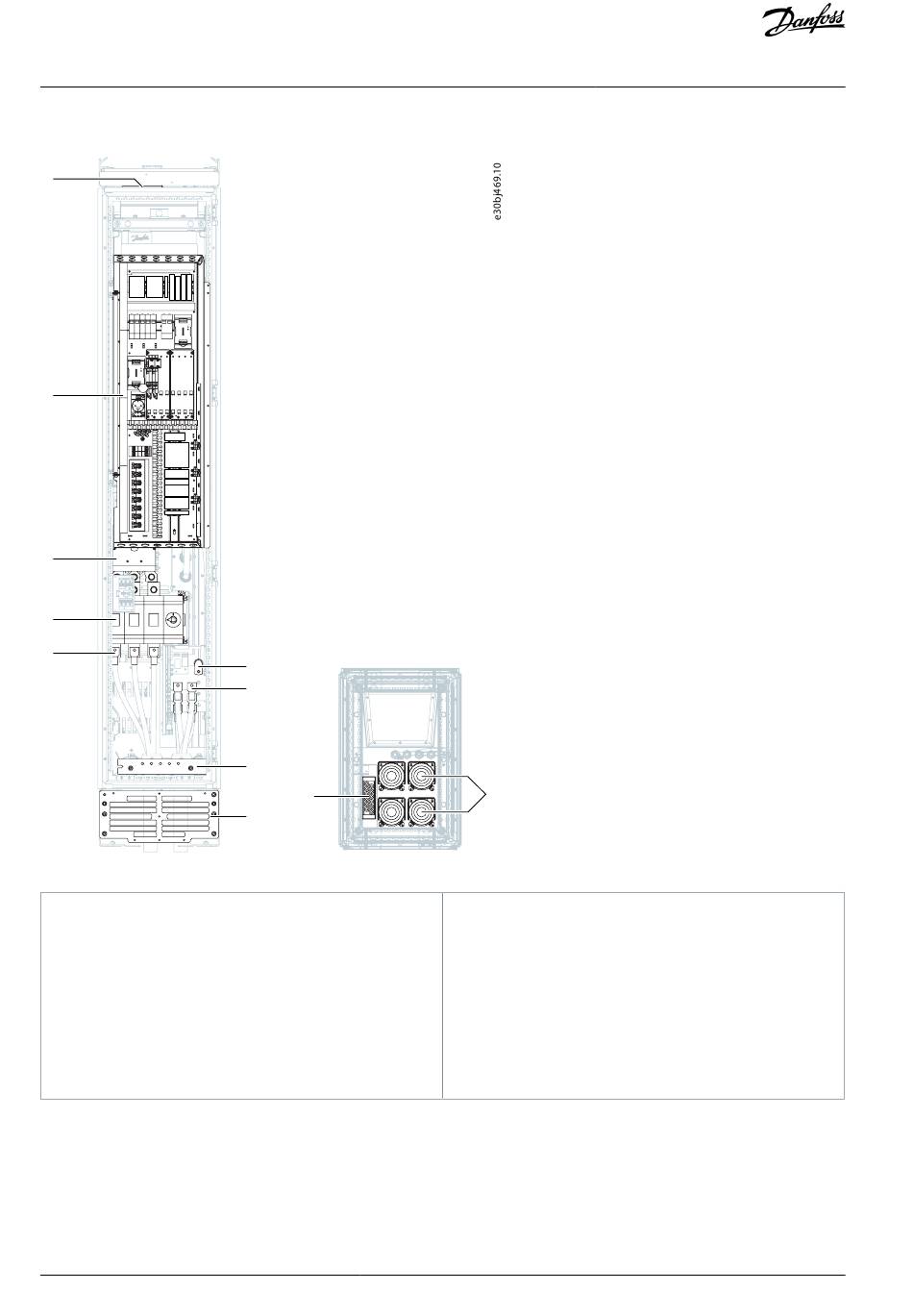

Illustration 1: Interior View, FE9
1 Control cable grommet, top
2 Control compartment
3 Contactor
4 Main switch (optional)
5 Mains terminals
6 dU/dt Filter
14 | Danfoss A/S © 2023.09
A
6
7
8
10
9
11
7 Motor terminals
8 PE bar
9 Inlet air grill
10 Control cable grommet, bottom
11 IP54 grommet for mains and motor cables (IEC)
A View from the bottom
AQ330347384398en-000201 / 139Z8096
Product Overview
