Dimensions For The Cooling Air Output Flange Option, Ae10, Ae11, Ie10, Ie11 - Danfoss iC7-60EA3N05-206A Operating Manual

iC7-Automation Air-cooled Enclosed Drives
Operating Guide
600
(23.62)

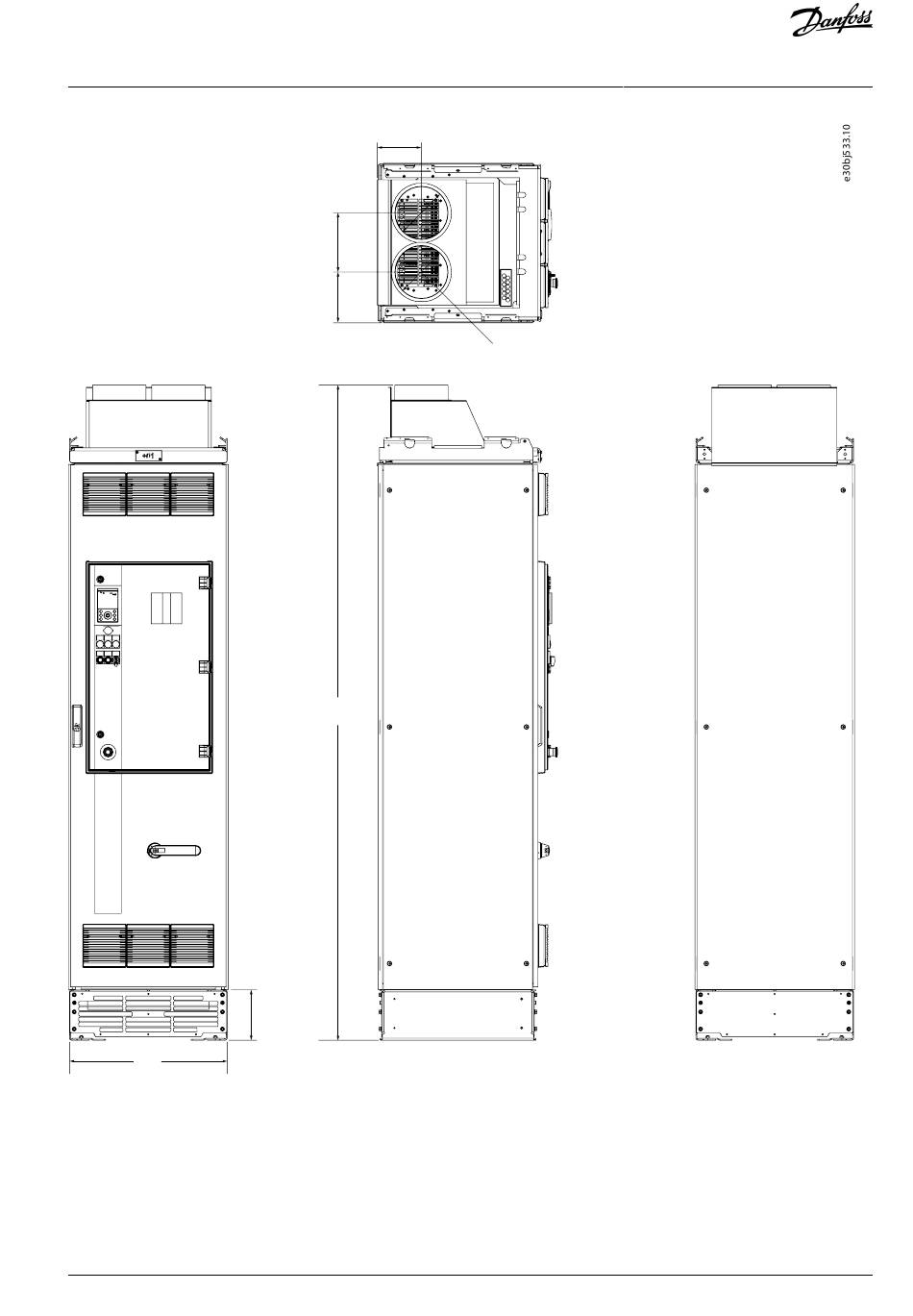

Illustration 56: Dimensions for the Cooling Air Output Flange (+OAOF), FE10, in mm (in)

10.2.11 Dimensions for the Cooling Air Output Flange Option, AE10, AE11, IE10, IE11

Danfoss A/S © 2023.09
167.9
(6.61)
225
(8.86)
193.3
(7.61)
2499.3
(98.40)
192
(7.56)
2 x Ø203
(2 x Ø7.99)
AQ330347384398en-000201 / 139Z8096 | 81
Specifications
