Dimensions For The Cooling Air Output Flange Option, Fe10 - Danfoss iC7-60EA3N05-206A Operating Manual

iC7-Automation Air-cooled Enclosed Drives
Operating Guide
206.5
(8.13)

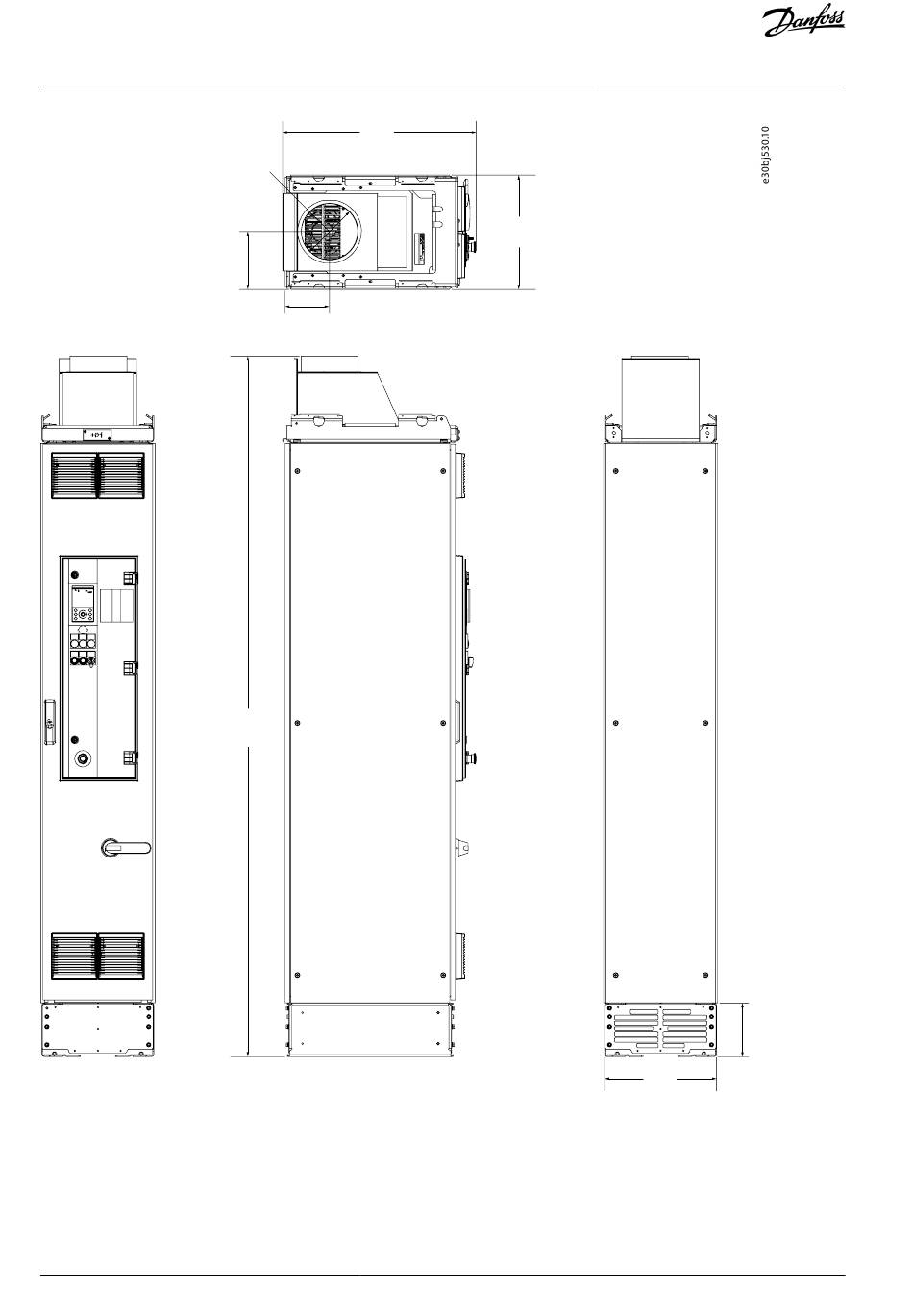

Illustration 55: Dimensions for the Cooling Air Output Flange (+OAOF), FE9, in mm (in)

10.2.10 Dimensions for the Cooling Air Output Flange Option, FE10

80 | Danfoss A/S © 2023.09
691.7
(27.23)
Ø203
(Ø7.99)
158.6
(6.24)
2502.5
(98.52)
408
(16.06)
400
(15.75)
AQ330347384398en-000201 / 139Z8096
Specifications
192
(7.56)
