iC7-Automation Air-cooled Enclosed Drives
Operating Guide

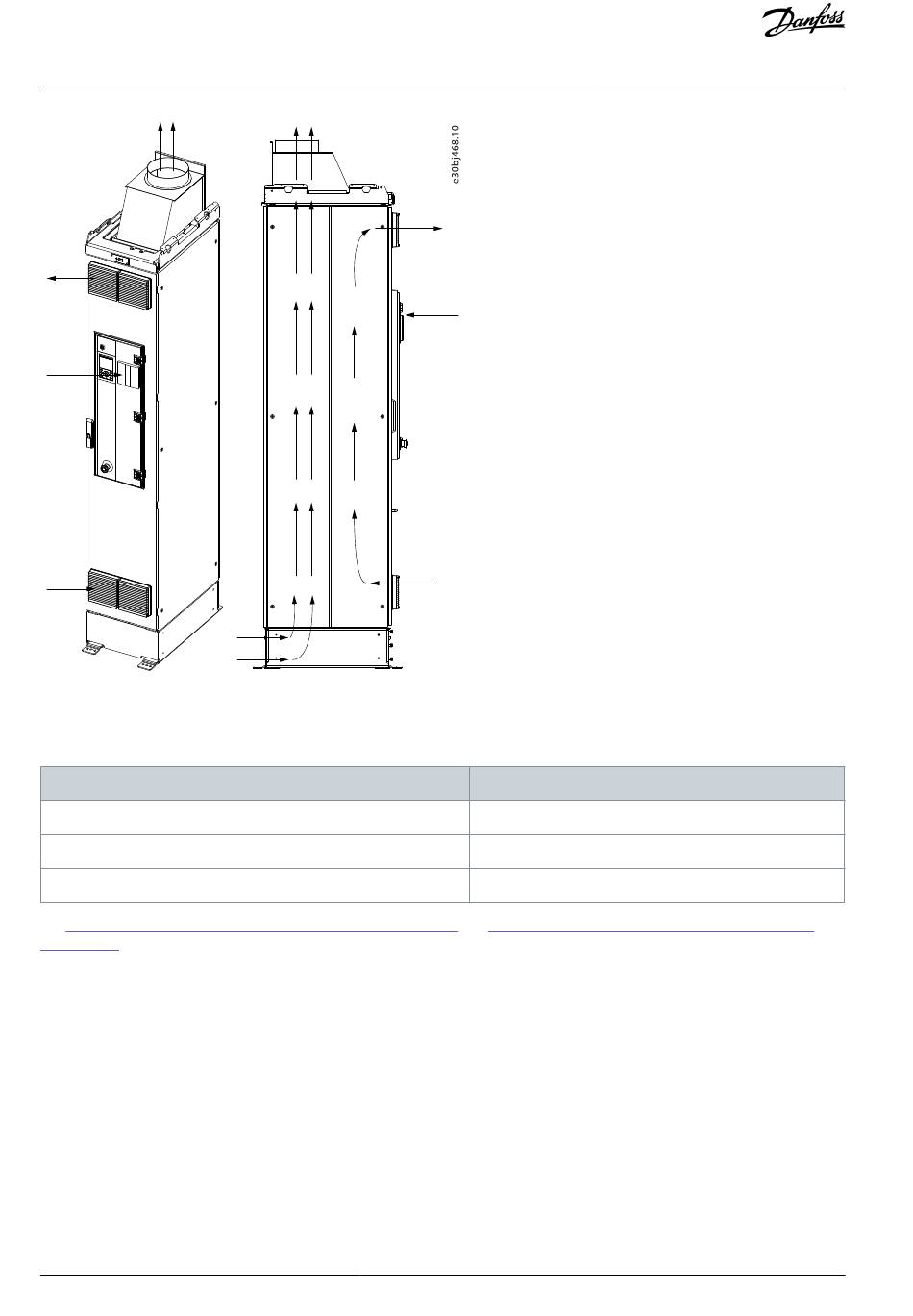

Illustration 11: Cooling Air Output Flange (+OAOF), Intake Front or Back, Output Top
The front and rear plates of the plinth are interchangeable, so the air intake can be in the front or at the back.
Table 8: Number of Air Output Holes in the Cooling Air Output Flange
Width of the cabinet in mm (in)
400 (15.7)
600 (23.6)
800 (31.5)
See 10.2.9 Dimensions for the Cooling Air Output Flange Option, FE9
Option, FE10.
28 | Danfoss A/S © 2023.09
Number of holes at the top
1
2
3
and 10.2.10 Dimensions for the Cooling Air Output Flange
AQ330347384398en-000201 / 139Z8096
Mechanical Installation
