3. To remove the battery, push it on the tooth side and slide it out of the plastic holder.
1

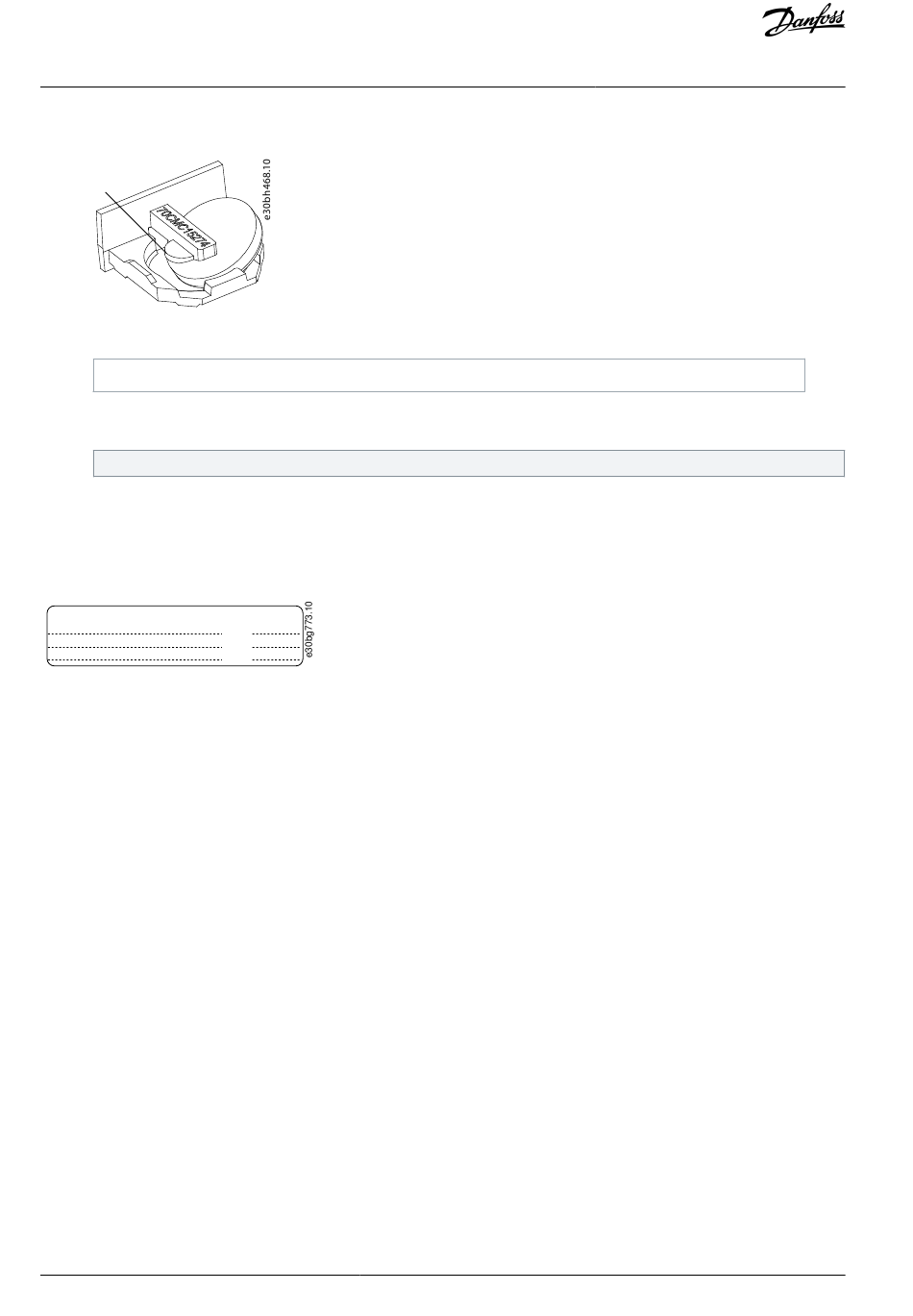

Illustration 44: Replacing the Battery
1 The tooth
4. To put a new battery in place, start from the opposite side and slide it into the slot in the holder, the plus side towards the
tooth.
The correct battery type is a coin type lithium battery BR1632.
5.
Push the holder back into the control board.

9.3 Using the Product Modified Label

In the accessories bag, there is also a "product modified" label. The function of the label is to tell the service personnel about the
changes that are made in the AC drive.
Product modified
Illustration 45: The Product Modified Label
Procedure
1. Attach the label on the side of the AC drive, in a place where it is easy to find.
a.
- Attach the label, for example, next to the other labels on the power unit.
2. If changes are made to the AC drive, write the change and date on the label.

9.4 Cleaning or Replacing the Door Filters

Clean filters are important to ensure a good air flow into the cabinet. The filters are only included in drives with protection rating
IP54.
Procedure
1. Locate the door filters on the outside of the cabinet door.
