5.4 Installing the Back-channel Cooling Option

Procedure
1. Attach the cover plate of the top hood with 4 screws.
1
2

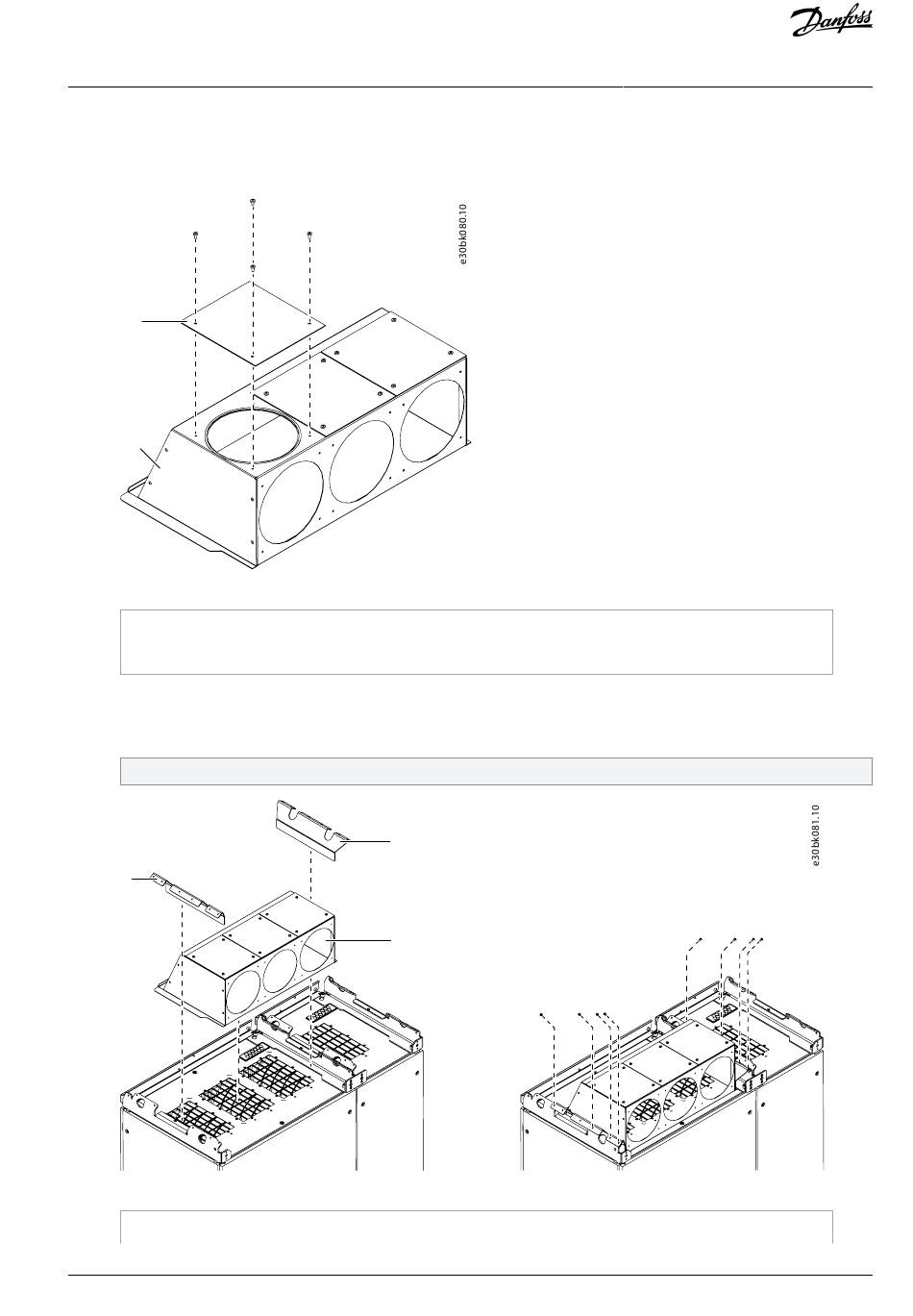

Illustration 12: Installing the Back-channel Cooling Option Cover Plate
1 The cover plate
2 The top hood
2. Place the top hood on top of the cabinet.
3.
Place the brackets so that they press the sides of the top hood down.
- a. Attach each bracket with 4 screws.
The brackets are identical, that is why each has 6 mounting holes.
1
Illustration 13: Installing the Back-channel Cooling Option Brackets
1 The brackets
