iC7-Automation Air-cooled Enclosed Drives
Operating Guide

3.6 Interior View of the Cabinet, FE10

1
2
3

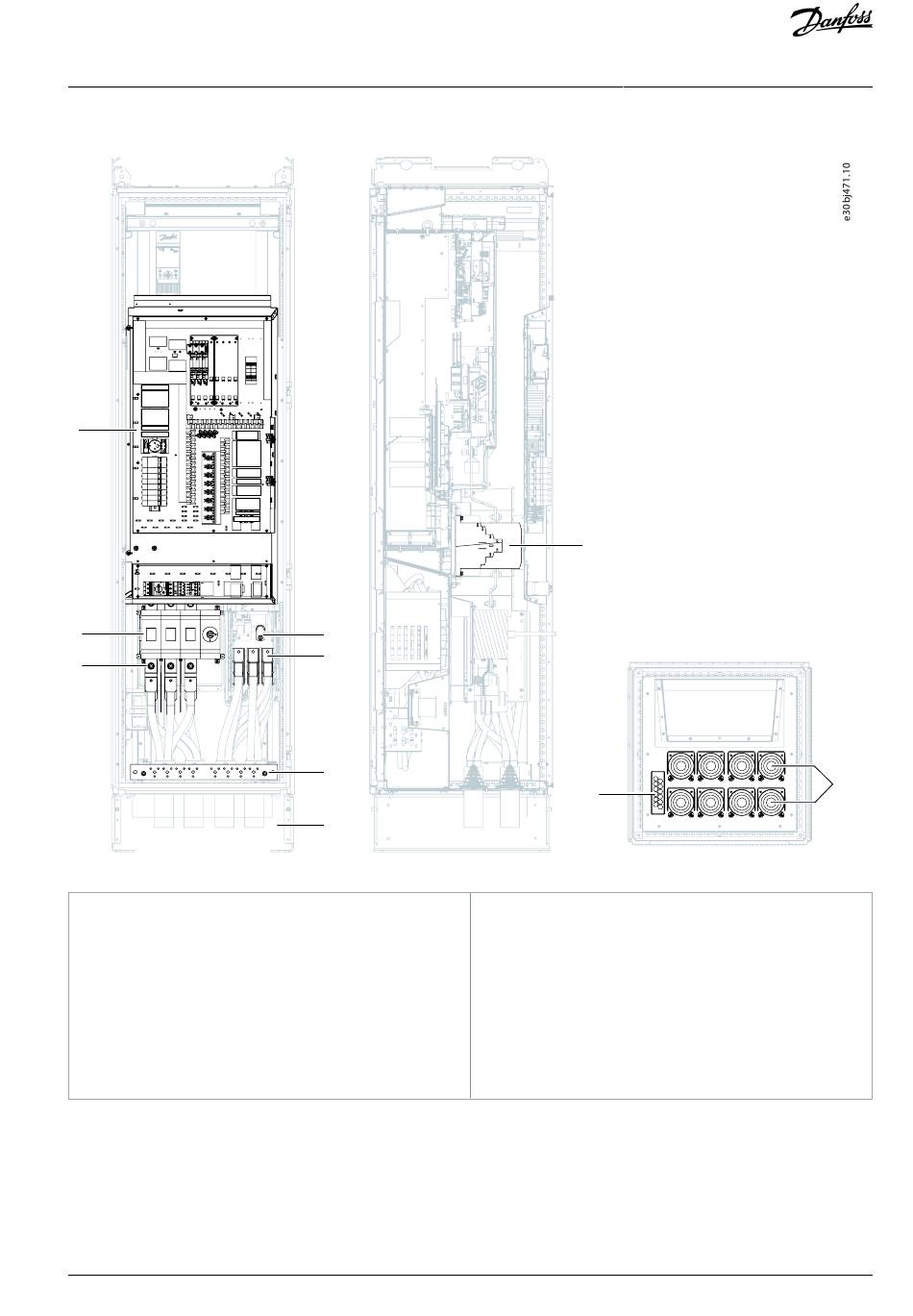

Illustration 2: Interior View, FE10
1 Control compartment
2 Main switch (optional)
3 Mains terminals
4 dU/dt Filter
5 Motor terminals
6 PE bar
Danfoss A/S © 2023.09
4
5
6
7
7
8
9
10
A
8
9
Inlet air grill
Contactor
Control cable grommet, bottom
IP54 grommet for mains and motor cables (IEC)
View from the bottom
AQ330347384398en-000201 / 139Z8096 | 15
Product Overview
A
10
