Parameter
Rated Current
Breaking Capacity Max
Operate Time Max.
Release Time Max.
DC Breaking Capacity
B
[VDC]
100
10
0.1

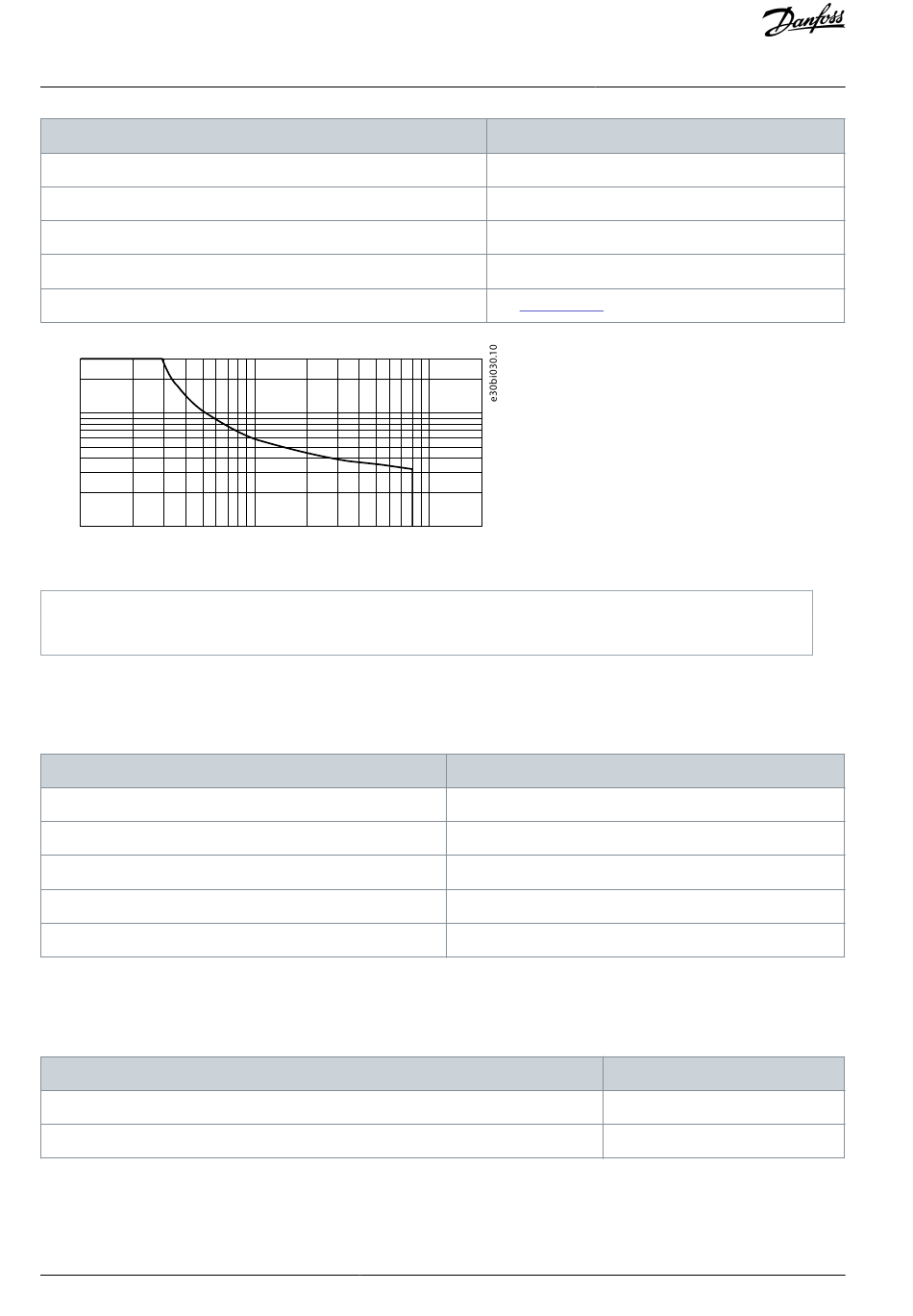

Illustration 29: Maximum DC Load Breaking Capacity
B DC voltage
C DC current

7.6.6 Analog Reference Voltage Output

The I/O and Relay Option contains 1 analog reference voltage output.
Table 24: Analog Reference Voltage Output Values
Parameter
Nominal Voltage
Accuracy
Maximum Output Current
Short Circuit Current
Electrical fast transient (EFT)
7.6.7 24 V DC Voltage Output
The I/O and Relay Option contains 1 voltage output of 24 V DC.
Table 25: 24 V DC Voltage Output
Parameter
Nominal Voltage
Accuracy
50 | Danfoss A/S © 2023.09
1
Value
8 A
2000 VA
9 ms
5 ms
See Illustration 29.
C
[A]
10
Value
10 V
-3...+3% of nominal voltage
10 mA
13 mA
2 kV
Control and Option Installation
Value
24 V
-15...+20%
