iC7-Automation Air-cooled Enclosed Drives
Operating Guide
1
2
3
4
L1 L2
5
6
7
8
9

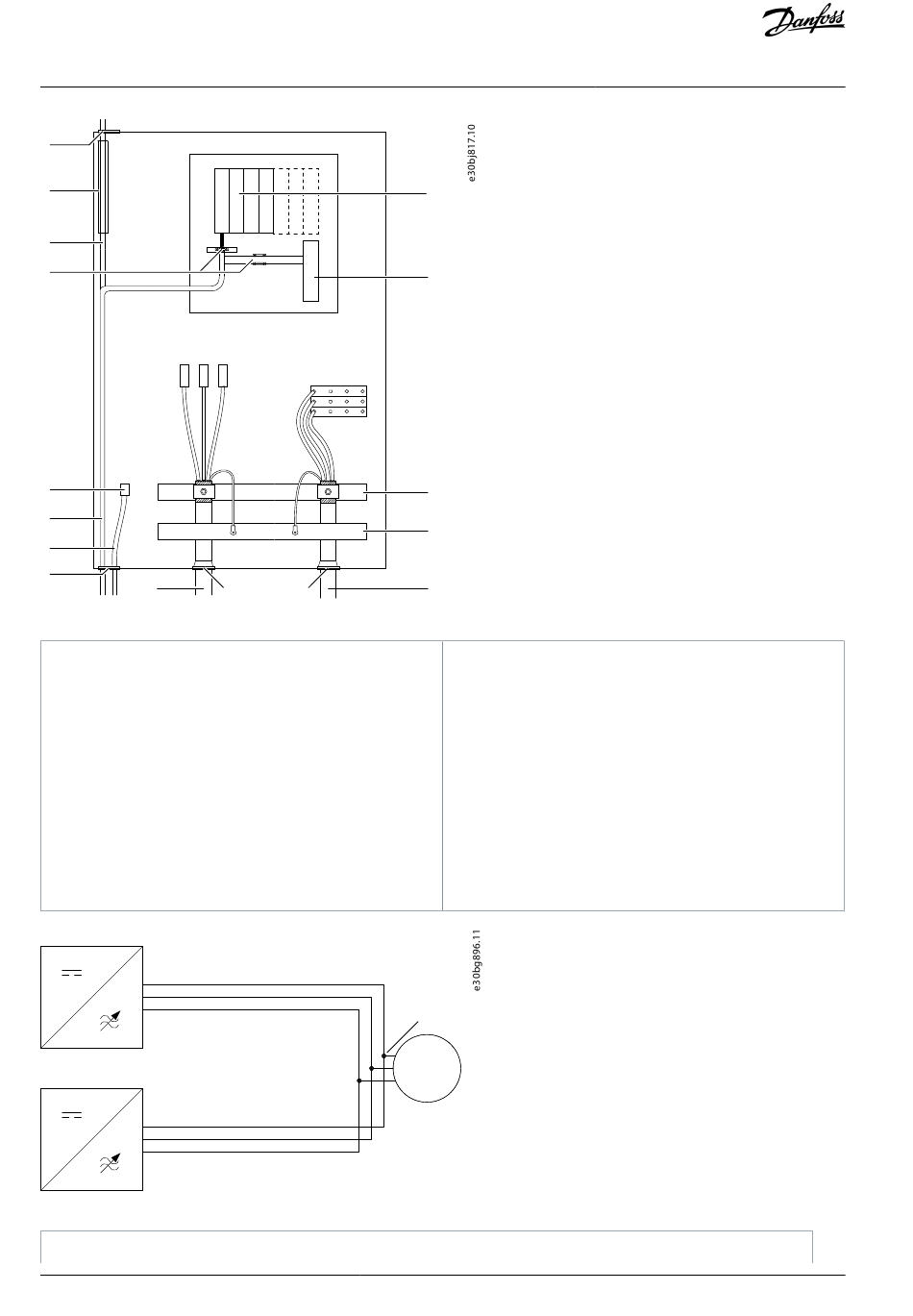

Illustration 17: Cabling Principle
1 Control cable grommet
2 Cable installation tubes, 2 pcs, diameter 32 mm
3 Control cables from the top
4 Strain relief and cable grounding
5 Auxiliary power terminals
6 Control cables from the bottom
7 Auxiliary power cable
8 Control cable grommet
1
1
Illustration 18: Recommended Installation
1 INU module
34 | Danfoss A/S © 2023.09
L3
U
V
W
10 10
11
12
13
14
15
9 Mains cable
10 Grommets
11 Control board and option boards
12 Terminal blocks
13 Strain relief and 360° grounding
14 PE busbar
15 Motor cable
2
M
Electrical Installation
AQ330347384398en-000201 / 139Z8096
