6.9 Disconnecting the dU/dt Filter Capacitors

To measure the insulation resistance of the motor cable, disconnect the dU/dt Filter capacitors of AE10, AE11, IE10, and IE11 from
the main circuit.
Procedure

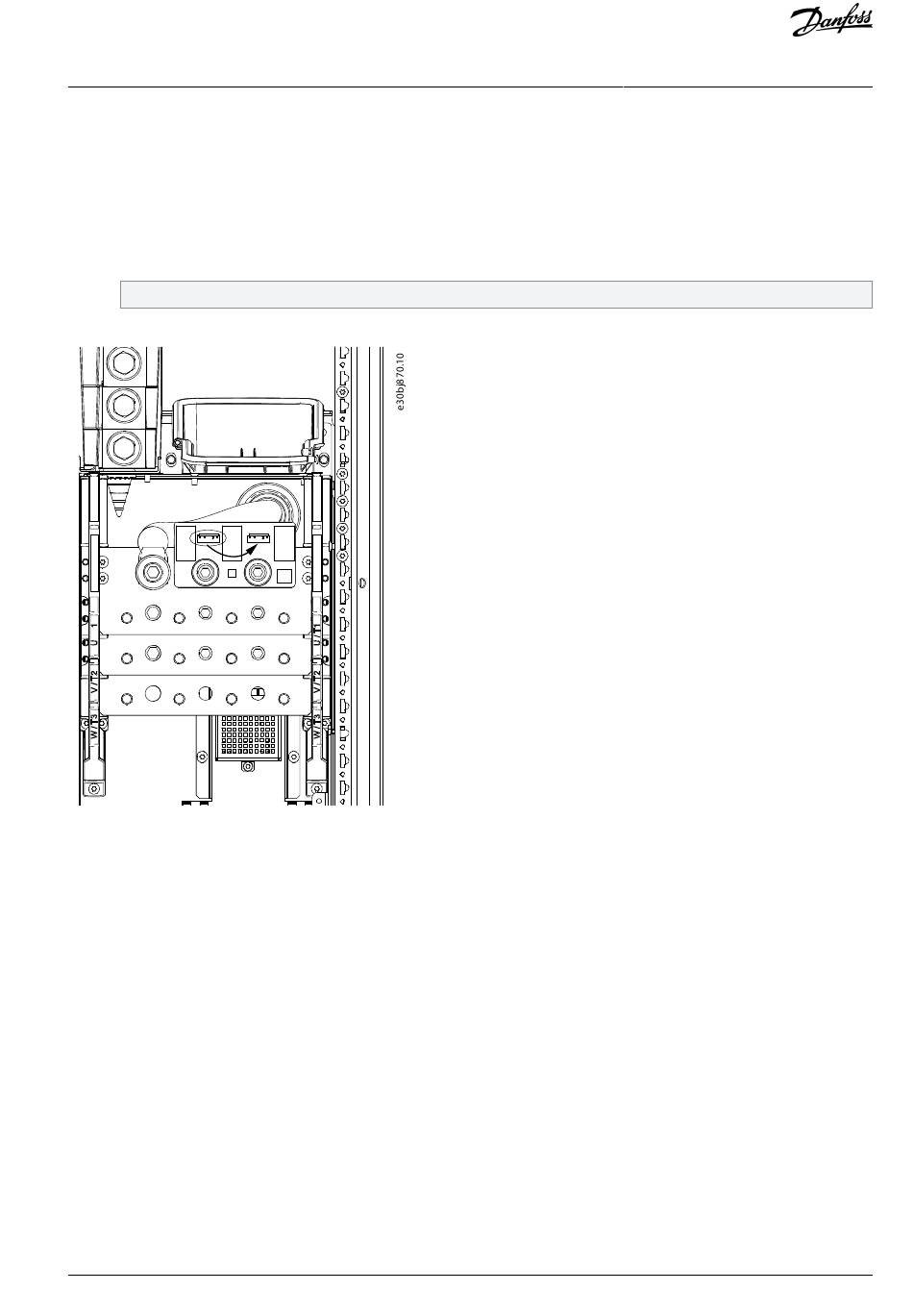

1. Move the terminal including its wires from the left side to the right side.
The terminal is on the U phase.
The dU/dt Filter capacitors are now disconnected from the main circuit.
