7 Control and Option Installation

7.1 General Information of the Control Compartment

The enclosed drive has a door-mounted control compartment for the control terminals, separated from the cabinet section. The
control compartment is accessed through a separate door on the cabinet door.
Make sure that the control cables are long enough to prevent tight bends in the cables between the control compartment and the
frame of the drive.
The 2 first I/O option boards are wired into the terminal blocks on the control compartment, and the next ones directly into the
option board terminals. The wiring of the boards:
• I/O and Relay Option OC7C1 as standard I/O: on the terminal block on the control compartment
• Relay Option OC7R0: on the terminal block on the control compartment
• General Purpose I/O OC7C0: on the terminal block on the control compartment
• I/O and Relay Option OC7C1 as an option: on the option board

7.2 Control Compartment Door Elements

1
2
3
4
5
6

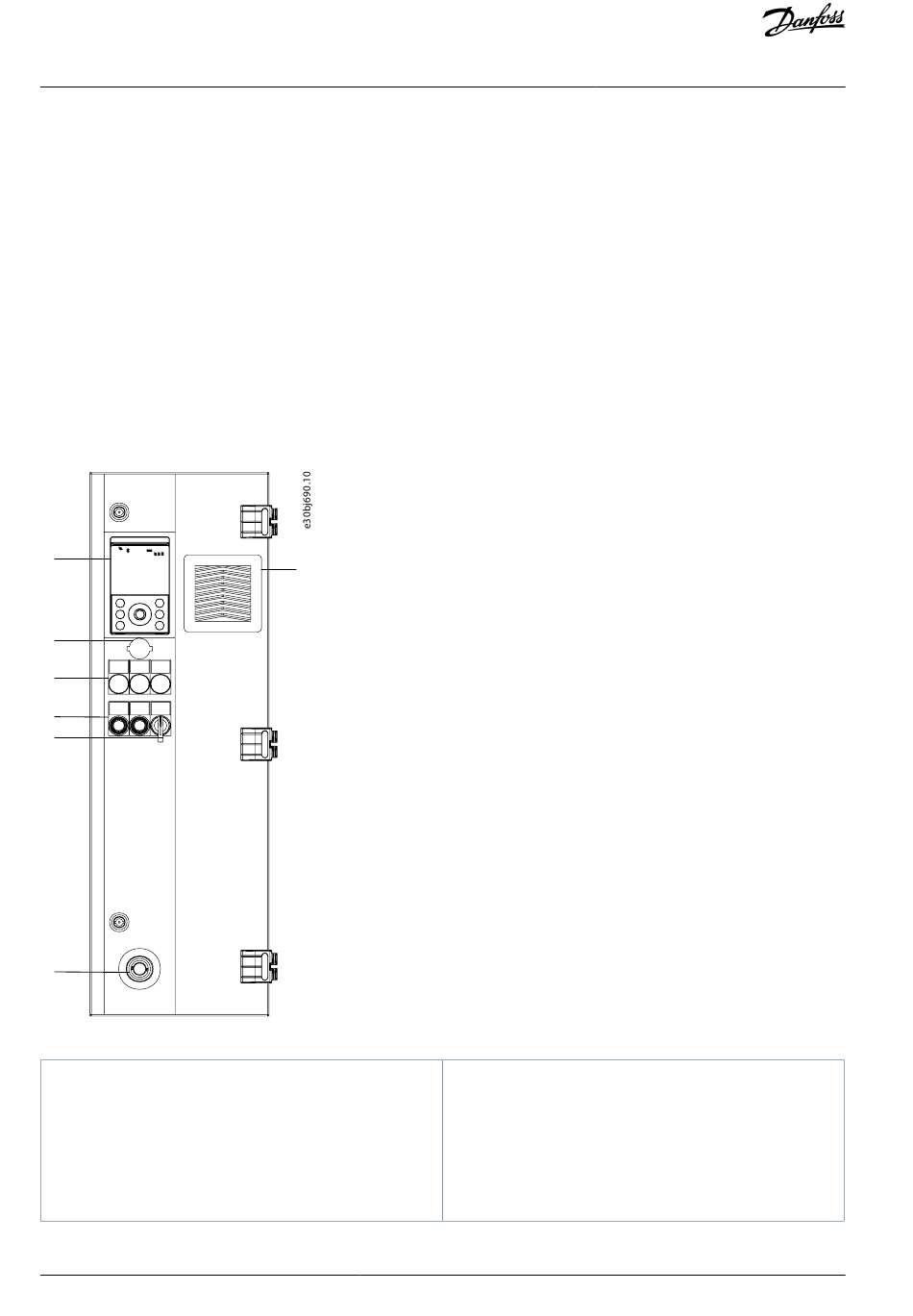

Illustration 22: Control Compartment Door Elements, FE9, FE10
1 Control panel, -PGA
2 Ethernet port, RJ45
3 Run, ready, and fault lights (+IICD), -PF3, -PF4, -PF5
4 Mains contactor push button Open/Close, -SF7.1, -
SF7.2
38 | Danfoss A/S © 2023.09
7
5
6
7
Control and Option Installation
Mains contactor Local/Remote switch, -SFB
Emergency stop button (+ILSS), -SFG
Fan and filter cover and optional IP54 filter (+IP54)
AQ330347384398en-000201 / 139Z8096
