iC7-Automation Air-cooled Enclosed Drives
Operating Guide
1
2
3
4
5
6
7
8

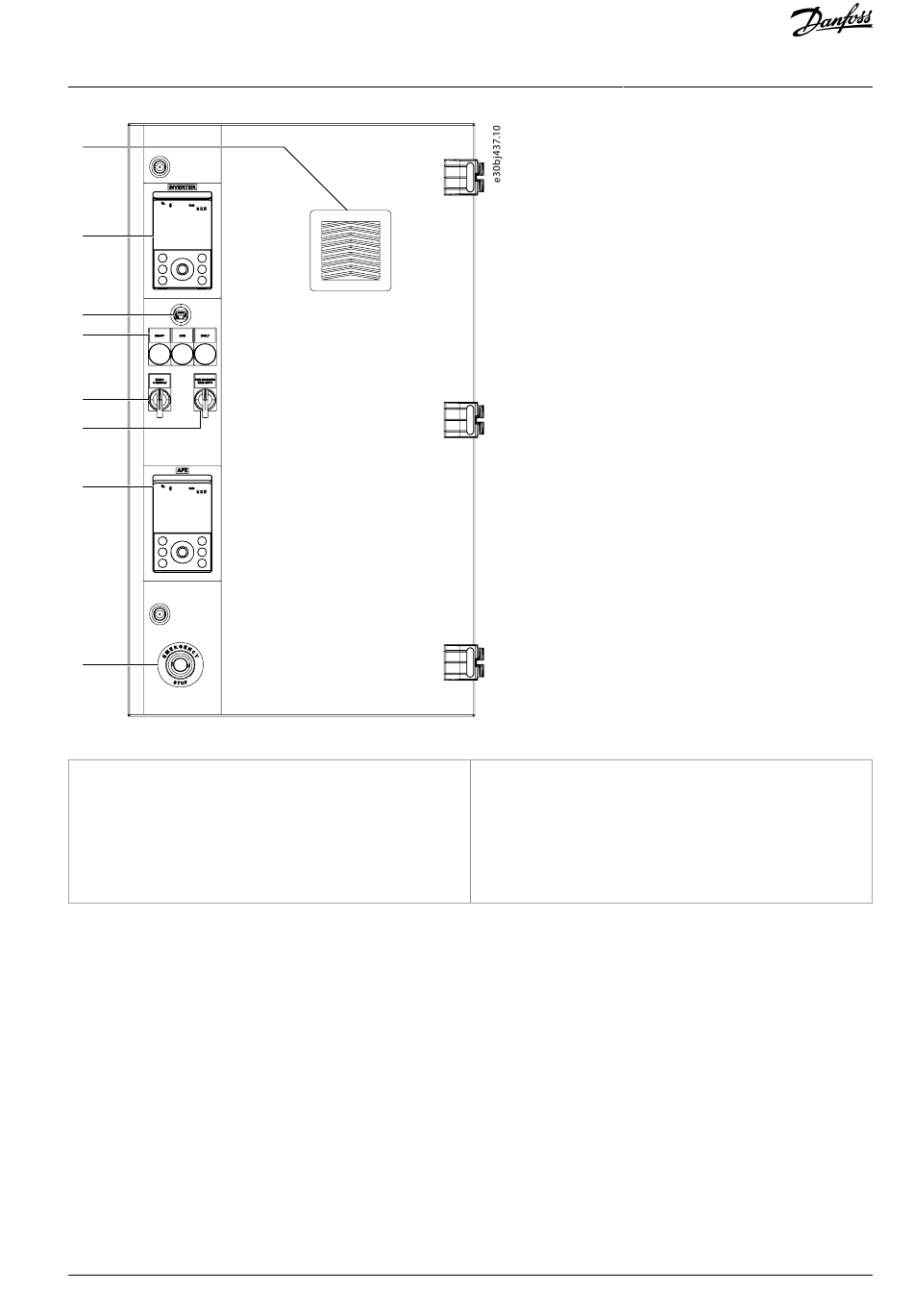

Illustration 23: Control Compartment Door Elements, AE10/11, IE10/11
1
Filter cover and optional IP54 filter (+IP54)
2
Control panel (for the INU module), -PGA
3
Ethernet port (for the inverter module), RJ45
4
Run, ready, and fault lights (+IICD), -PF3, -PF4, -PF5
Danfoss A/S © 2023.09
Control and Option Installation
5
Main switch, SF11
6
Pre-charging switch, SF12
7
Control panel (for the AFE module), -PGA2
8
Emergency stop button (+ILSS), -SFG
AQ330347384398en-000201 / 139Z8096 | 39
