Dimensions For Back-Channel Cooling, Fe9 - Danfoss iC7-60EA3N05-206A Operating Manual

iC7-Automation Air-cooled Enclosed Drives
Operating Guide
600
(23.62)

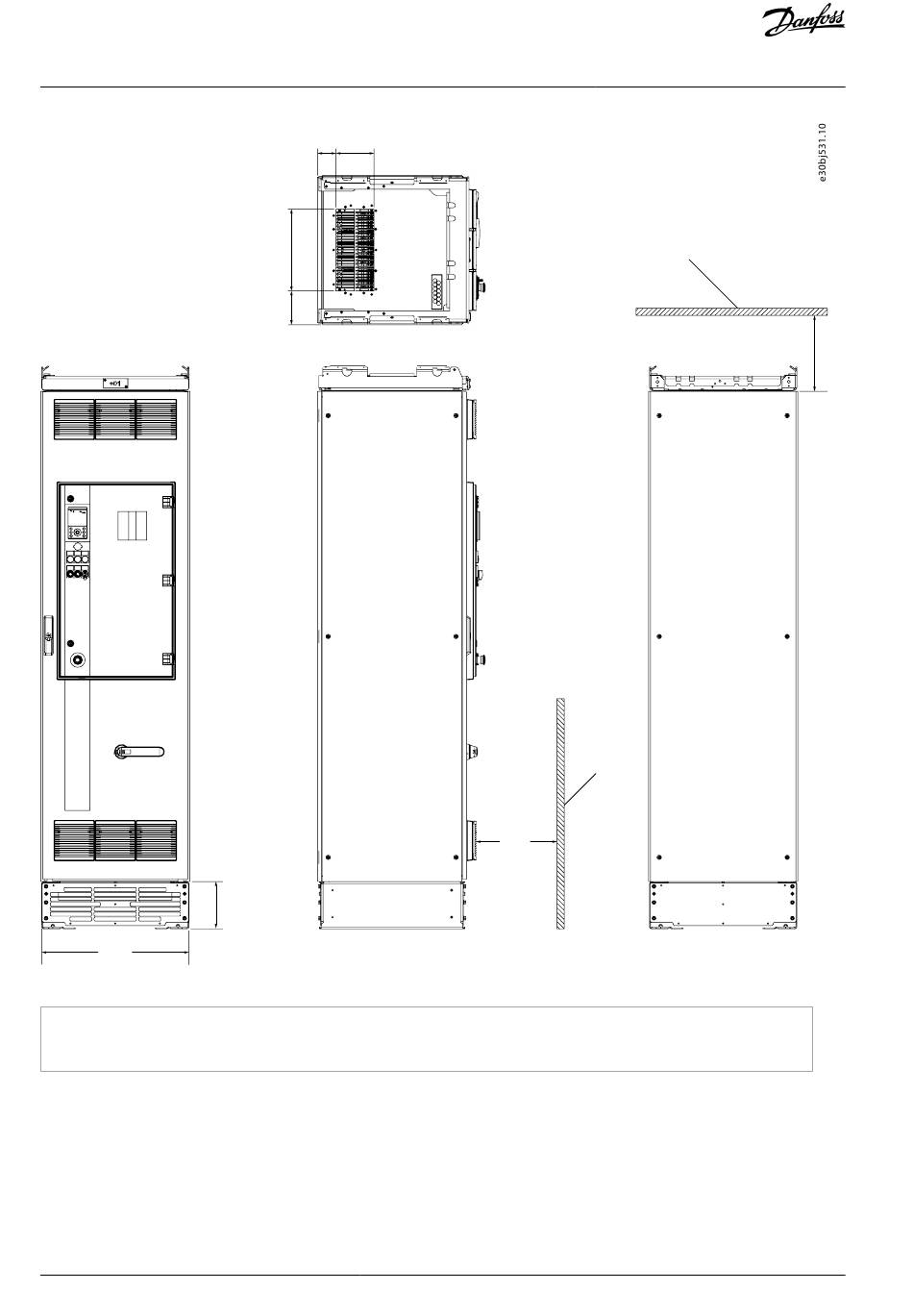

Illustration 51: Dimensions for Default Cooling, FE10, in mm (in)
1 Roof
2 Wall

10.2.6 Dimensions for Back-channel Cooling, FE9

76 | Danfoss A/S © 2023.09
75.2 155
(2.96) (6.10)
333
(13.11)
133.5
(5.26)
192
(7.56)
2
225
(8.86)
AQ330347384398en-000201 / 139Z8096
Specifications
1
225
(8.86)
