iC7-Automation Air-cooled Enclosed Drives
Operating Guide
2. Slide the lower edge of the board to the mounting plate fixing point.
1
2
3

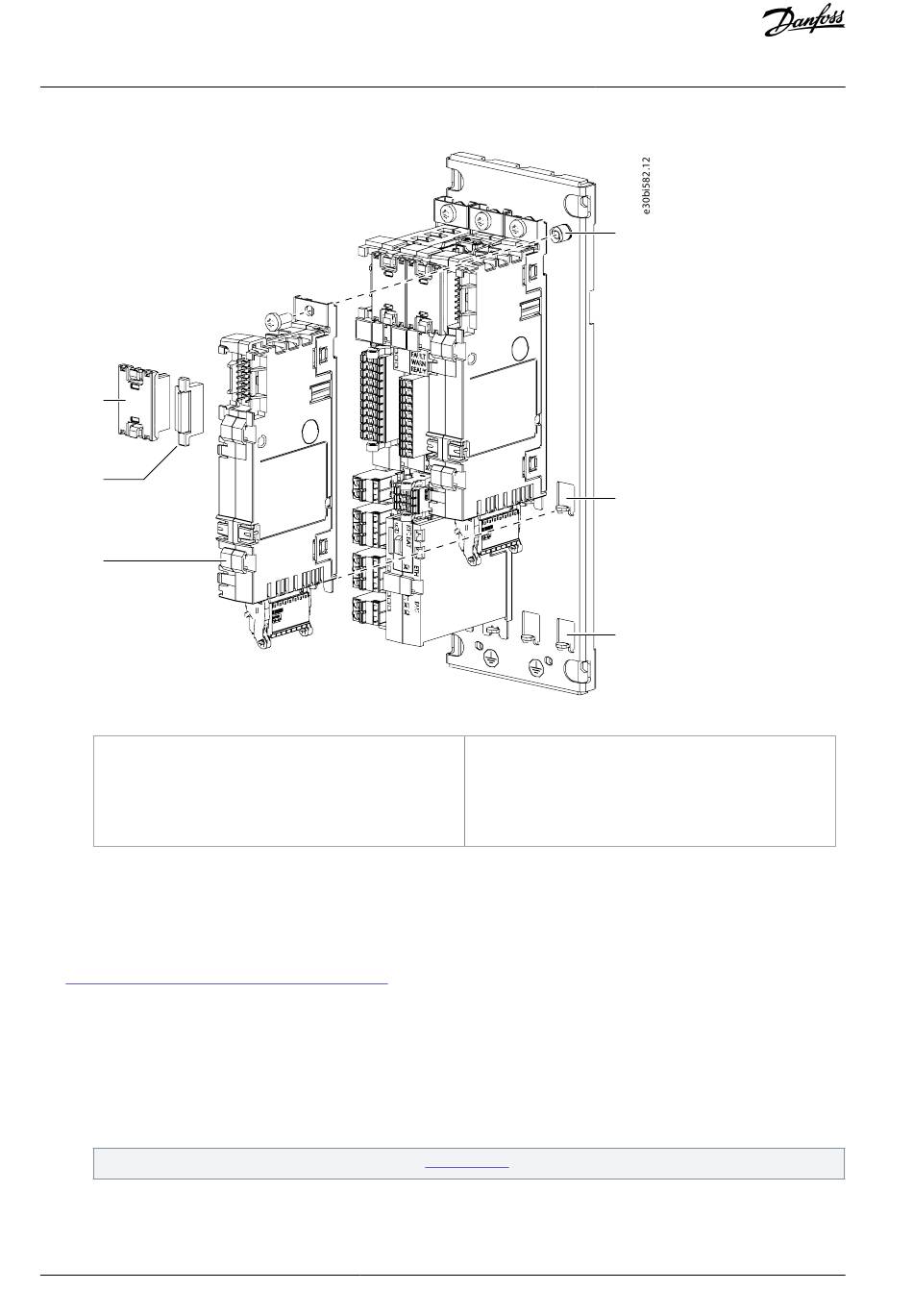

Illustration 37: Installing a Board to the Control Compartment Mounting Plate
1 Option connector
2 Option terminal cover
3 Option board
3.
Use the screw to attach the board to the fixing point at the top.
4. Attach an option connector to the newly installed board and the board next to it.
5.
Attach option terminal covers to the empty terminals.

7.10 Installing the Control Cables into the Control Terminals

See 7.1 General Information of the Control
Requirements for the control cables:
2
• Wire size: 0.25–4 mm (22–12 AWG)
• Wire size with end ferrule: 0.25–2.5 mm
• Wire stripping length: 10–12 mm (0.4–0.5 in)
Installing the control cables on the option board
1. Install the control cables into the control terminals.
See the pin numbering of the I/O and Relay Option in
58 | Danfoss A/S © 2023.09
Compartment.
2
(22–14 AWG)
Illustration
Control and Option Installation
4
5
6
4 Fixing point at the top
5 Fixing point at the middle
6 Fixing point at the bottom
27.
AQ330347384398en-000201 / 139Z8096
