Inverter frame

Remove the wooden box wrapped around the inverter frame, remove the 4 bolts fixed at the bottom anchor
bolt of the frame, and then lift the frame through the 4 lifting holes at the frame top. See Figure 3-10.

3.3.5 Installation

3.3.5.1 Installation space and heat dissipation
1. Installation requirements for A1i–A4i inverter units
Note the following requirements to ensure reliable installation and excellent heat dissipation for inverter
units using A1i–A4i frame:
The inverter unit must be installed and used in a cabinet.

A minimum ventilation clearance must be kept from the top and bottom of the inverter unit to ensure

good heat dissipation. See Figure 3-11.
Both sides of the inverter unit are designed with air baffle and sealing sponge for isolation to prevent the

hot air at the inverter unit top outlet from circulating inside the cabinet and ensure that the heat of the
inverter unit is discharged from the heat dissipation holes at the cabinet top outlet cover. See Figure
3-11.
202311 (V1.0)

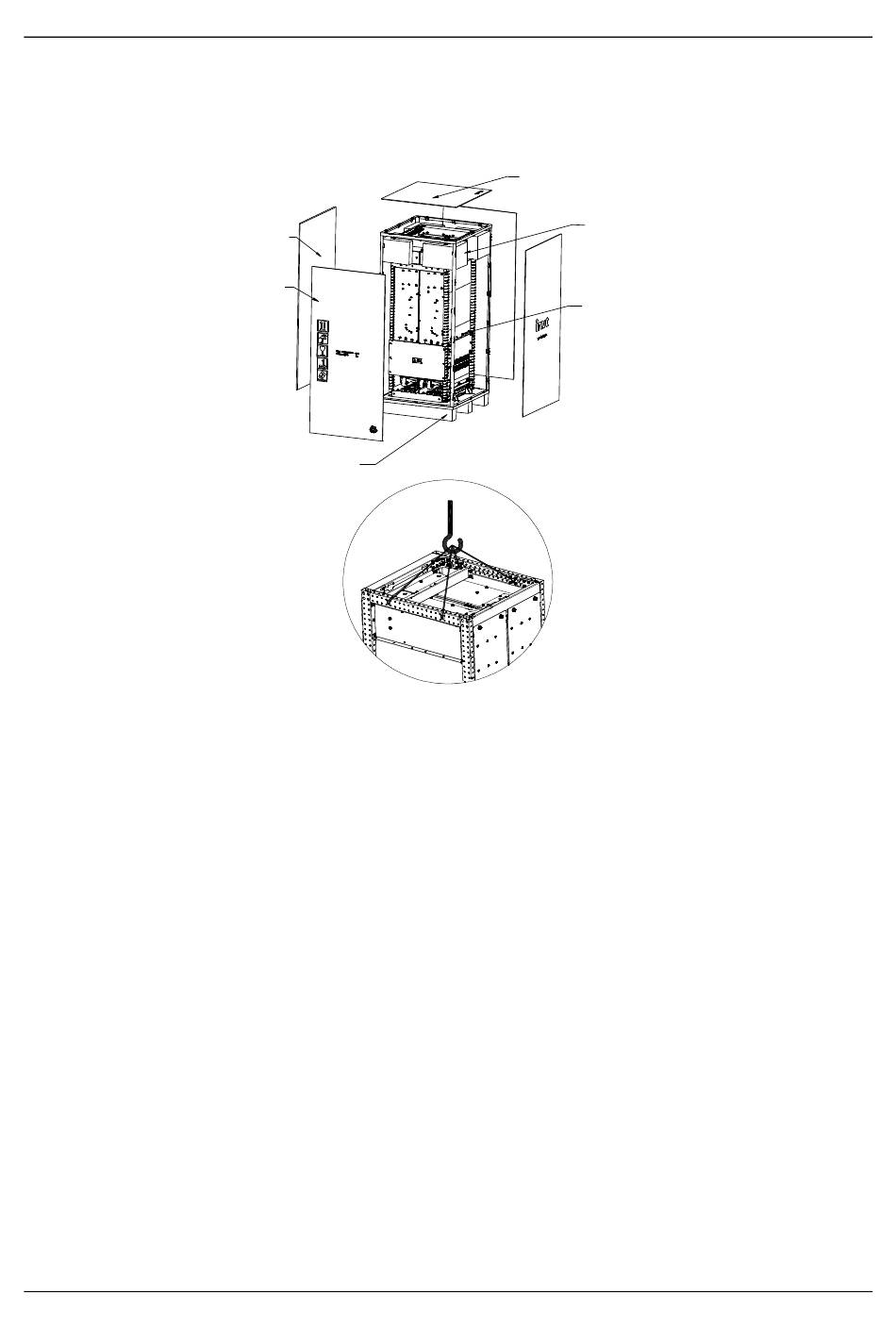

Figure 3-10 Inverter frame lifting schematic
Sideboard 1
Sideboard 2
Plate
Cover
EPE
2A8 inverter frame
Mechanical installation
30
