Goodrive880 Series Inverter Unit Hardware Manual
202311 (V1.0)

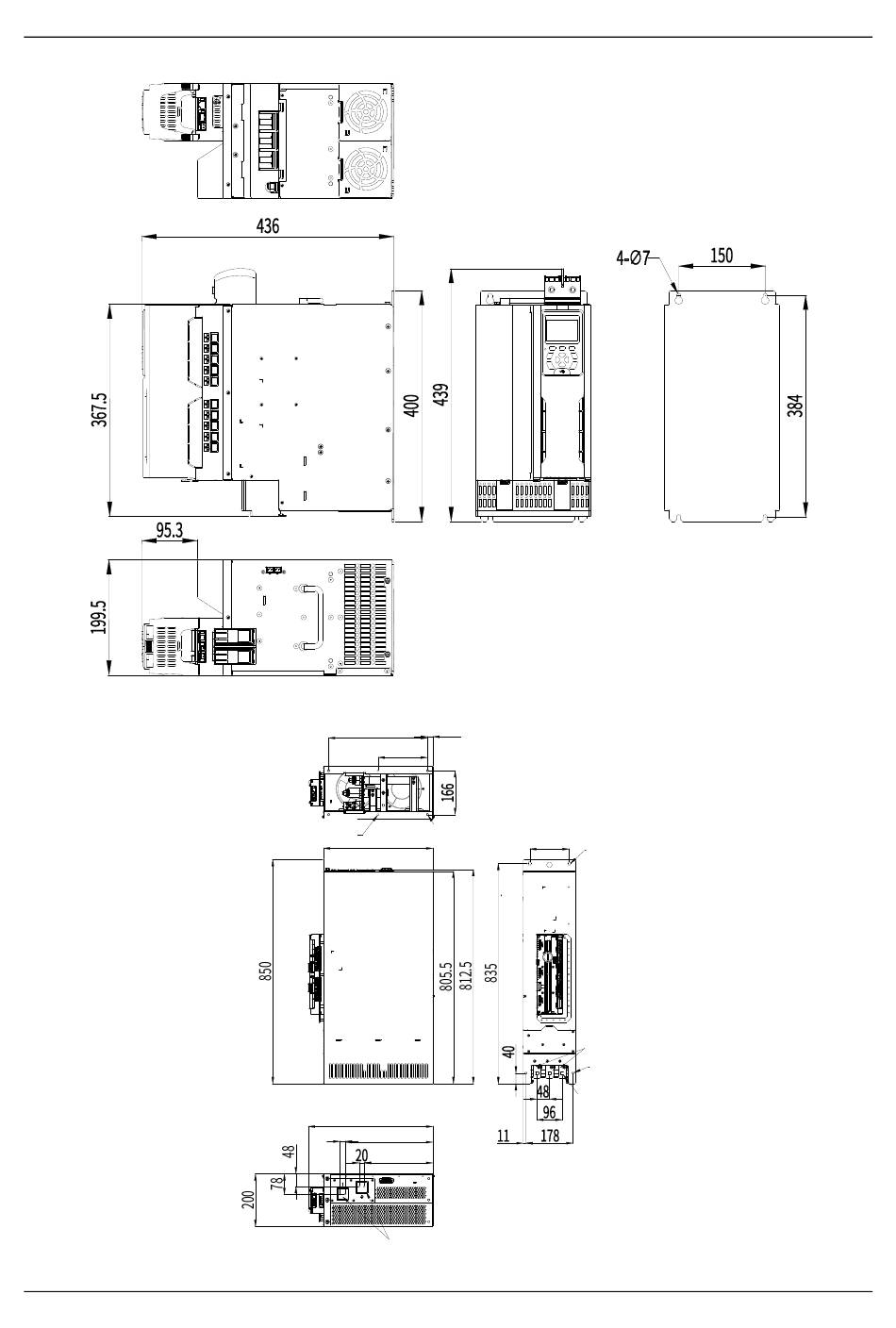

Figure B-2 A4i structure dimensions (unit: mm)
Figure B-3 A6i unit installation dimensions (unit: mm)
375
187.5
2-∅7.0
415
472.4
20
332
259.5
+, - bus copper bar
20
4-M8
150
2-10X14
(Middle hole)
U、V、W
2-M6
3-11X11
Square hole
Dimension drawings
Hole positions at the back
105
