Goodrive880 Series Inverter Unit Hardware Manual
Note the following to fold or unfold the anti-tipping stand:
Unfold the anti-tipping stand: pull down the anti-tipping stand to press the spring, wrap it around the

restraining pin and rotate it 180° to snap into the slot as shown in Figure 3-8.
Fold the anti-tipping stand: rotate the anti-tipping stand in the slot by 180° to restore the pressed spring

back to its original state to clamp the anti-tipping stand, as shown in Figure 3-9. The restraint of the pin
ensures that the anti-tipping stand will not unfold due to shaking, as shown in Figure 3-7.
202311 (V1.0)

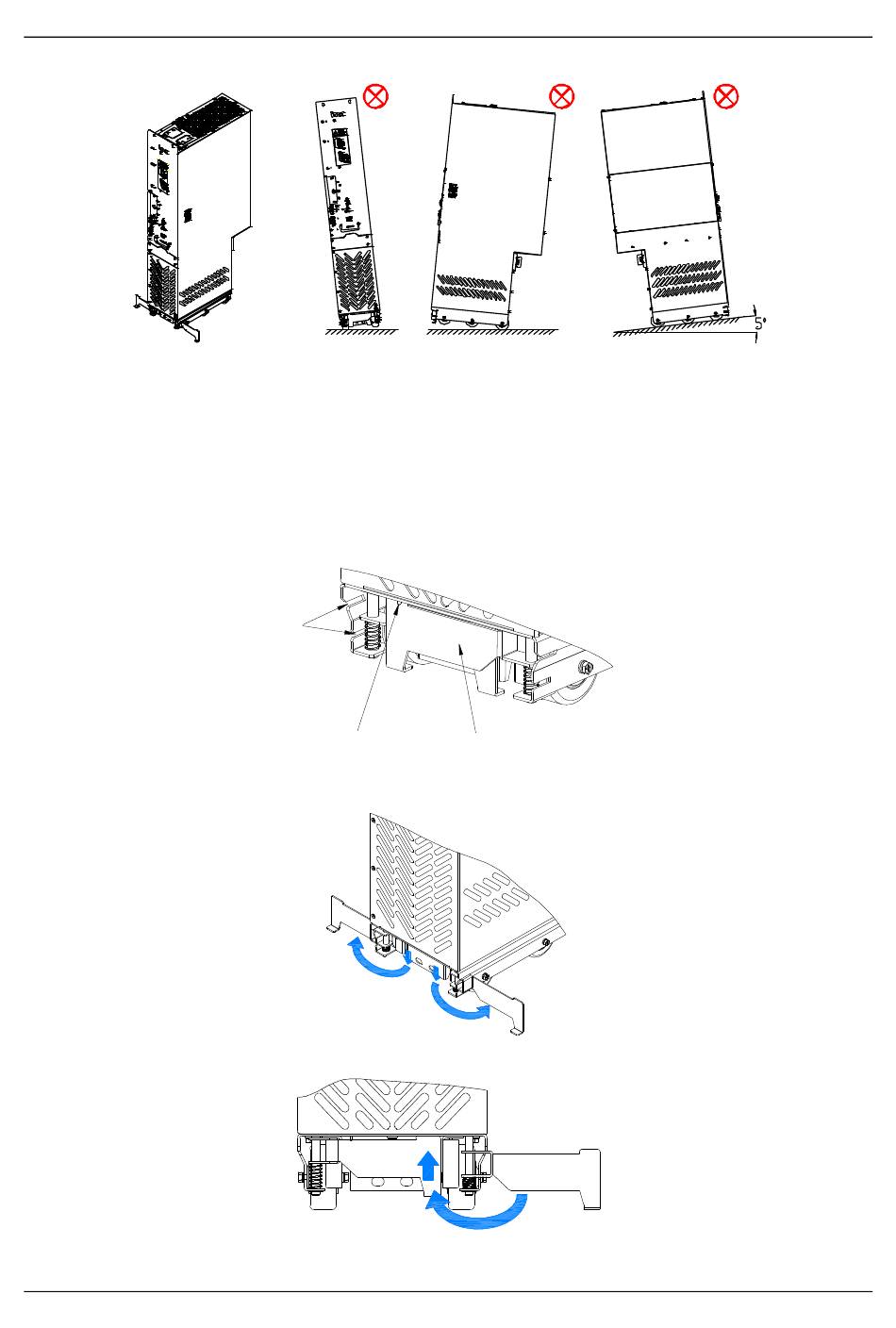

Figure 3-6 Unit placing requirements
Figure 3-7 Unit bottom structure
Stand slot
Restraint spin
Figure 3-8 Unfolding the anti-tipping stand
Figure 3-9 Folding the anti-tipping stand
Anti-tipping stand
Mechanical installation
＞
