The procedure is as follows:
Step 1 Disconnect the DC power supply of the drive system and check to ensure there is no voltage in the
equipment.
Step 2 Press and hold the snap-fits of the fan cover, and remove the fan cover.
Step 3 Pull the fan out slowly and unplug the fan power cord plug to complete the fan disassembly.
Step 4 Install the new fan in the reverse order of the disassembly steps.
2. Replacing the fan for A4i

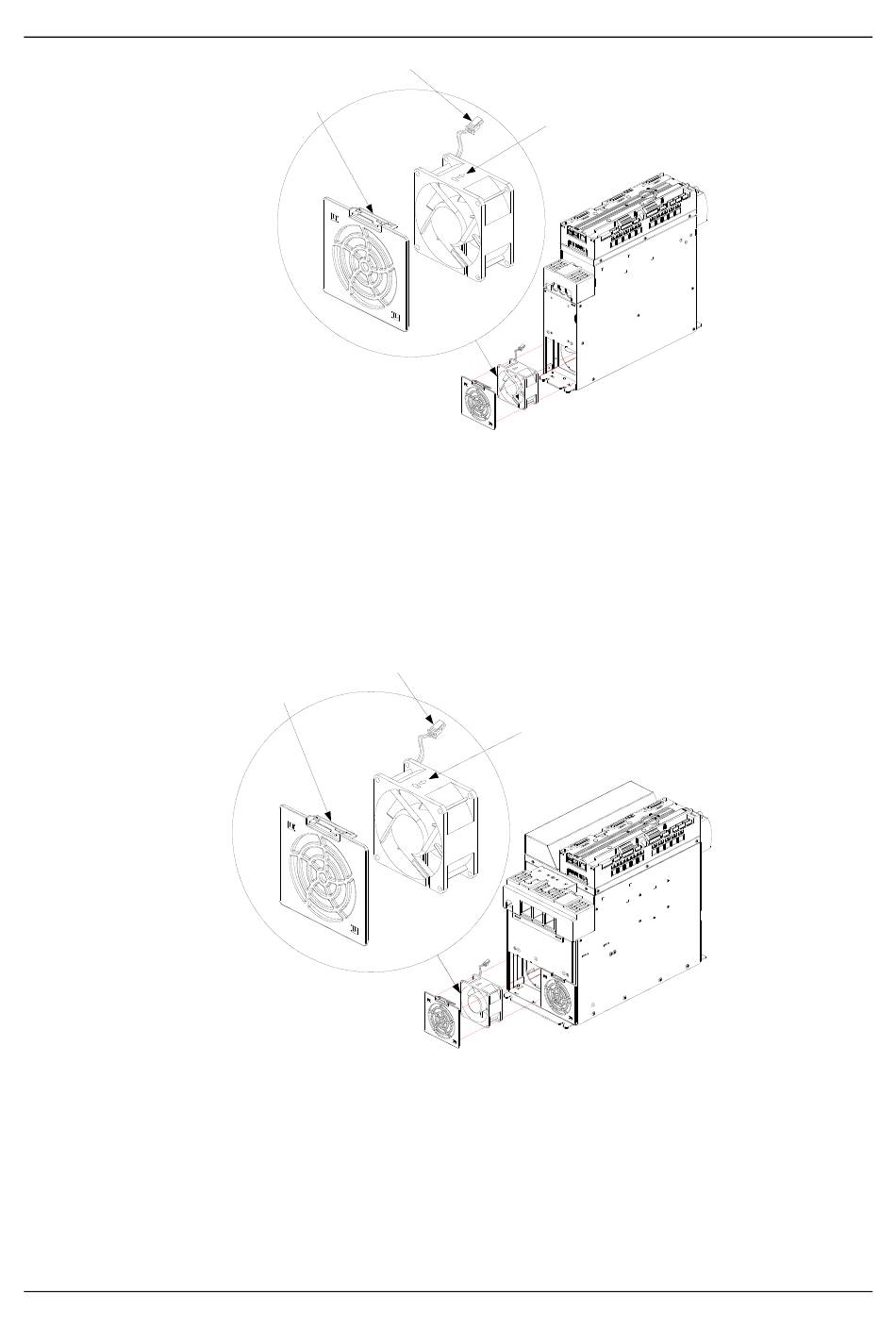

Fan cover snap-fit
The procedure is as follows:
Step 1 Disconnect the DC power supply of the drive system and check to ensure there is no voltage in the
equipment.
Step 2 Press and hold the snap-fits of the fan cover, and remove the fan cover.
Step 3 Pull the fan out slowly and unplug the fan power cord plug to complete the fan disassembly.
Step 4 Install the new fan in the reverse order of the disassembly steps.
3. Replacing the fan for A6i&A7i
202311 (V1.0)
Fan power cable
Fan cover snap-fit
Fan power cable
Fan air direction
Fan air direction
