Goodrive880 Series Inverter Unit Hardware Manual
Step 7 Pull the inverter unit to the maintenance bracket until it can be lifted or removed.
Step 8 Install the new inverter unit.
Remove (+), (-) DC input copper bars
202311 (V1.0)

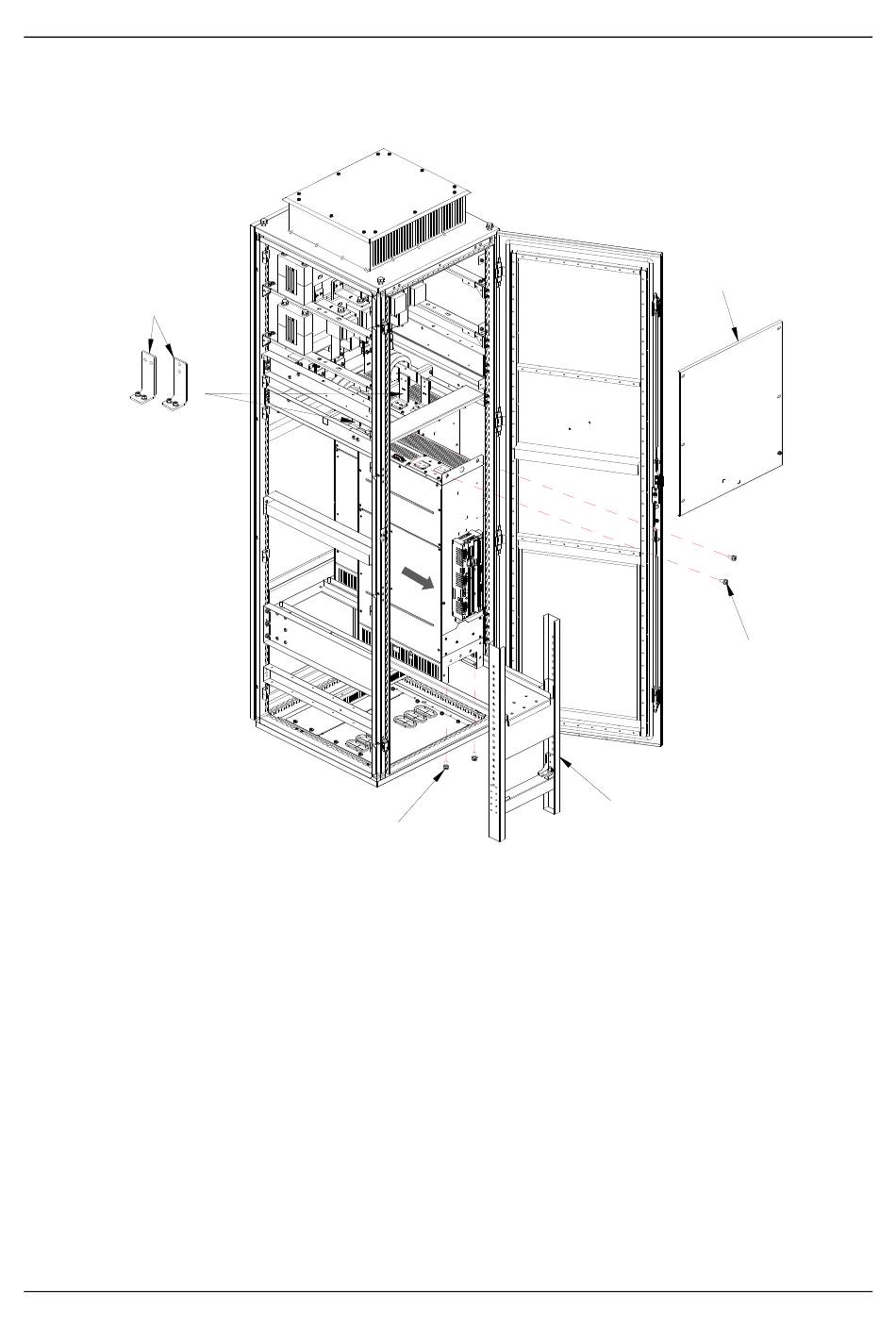

Figure 7-2 Replacing the A6i&A7i inverter units
Remove two fixing screws at the bottom of the unit
Maintenance and inspection
Remove the protective plate
Remove two fixing screws at the top of the unit
Installation and maintenance bracket
