Goodrive880 Series Inverter Unit Hardware Manual
16
2. Installation requirements for A6i and A7i inverter units
Note the following requirements to ensure reliable installation and excellent heat dissipation for inverter
units using A6i or A7i frame:
The inverter unit must be installed and used in a cabinet.

A minimum ventilation clearance must be kept from the top and bottom of each unit to ensure good heat

dissipation. For details, see Figure 3-12.
Both sides of the inverter unit are designed with air baffle and sealing sponge for isolation to prevent the

hot air at the inverter unit top outlet from circulating inside the cabinet and ensure that the heat of the
inverter unit is discharged from the heat dissipation holes at the cabinet top outlet cover. See Figure
3-12.
202311 (V1.0)

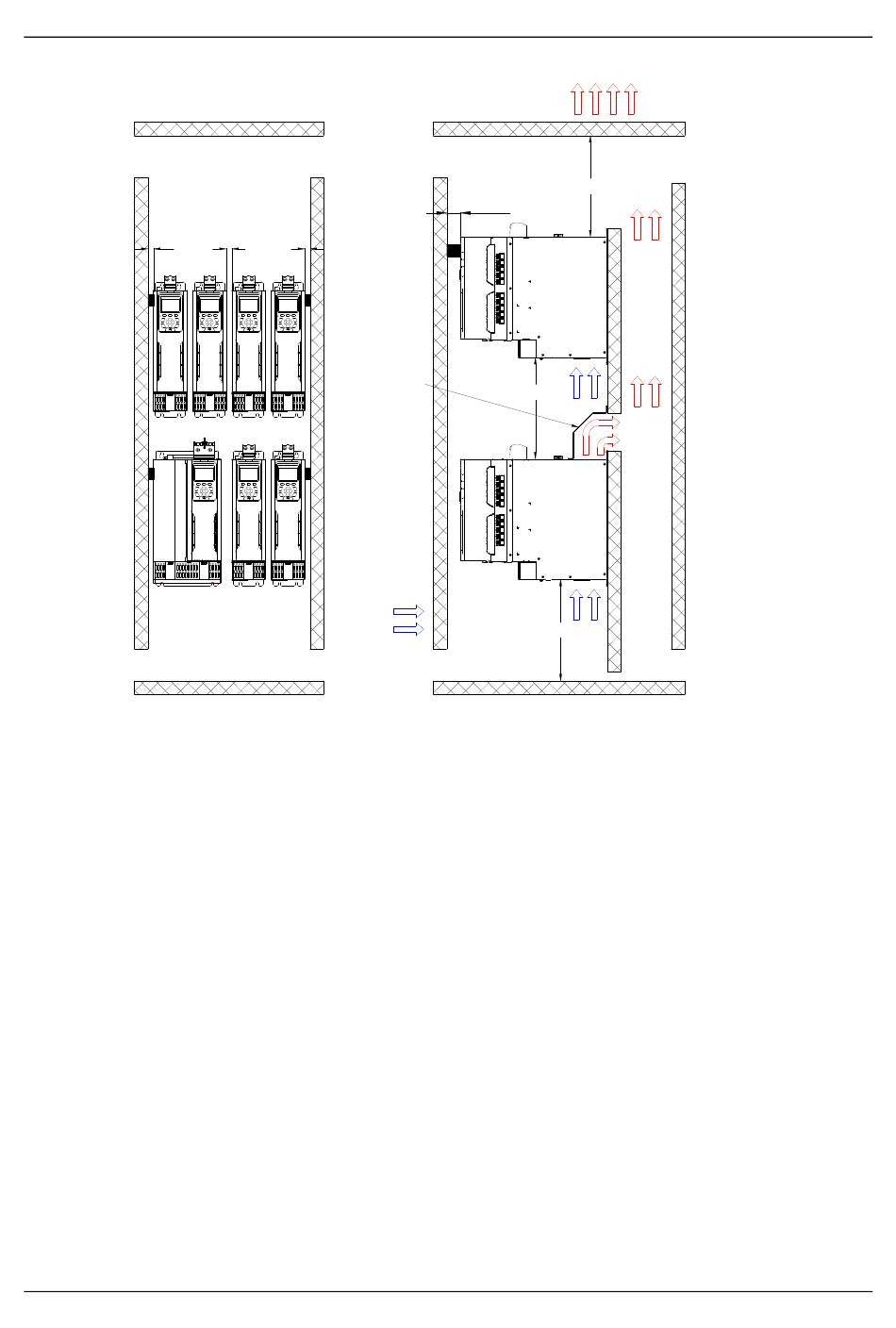

Figure 3-11 Installation space requirements for A1i–A4i inverter units
16 16
Heat baffler
Air inlet
Front view
Air outlet
≥300
≥20
≥300
≥300
Side view
Mechanical installation
31
