Goodrive880 Series Inverter Unit Hardware Manual
Without the precharge function


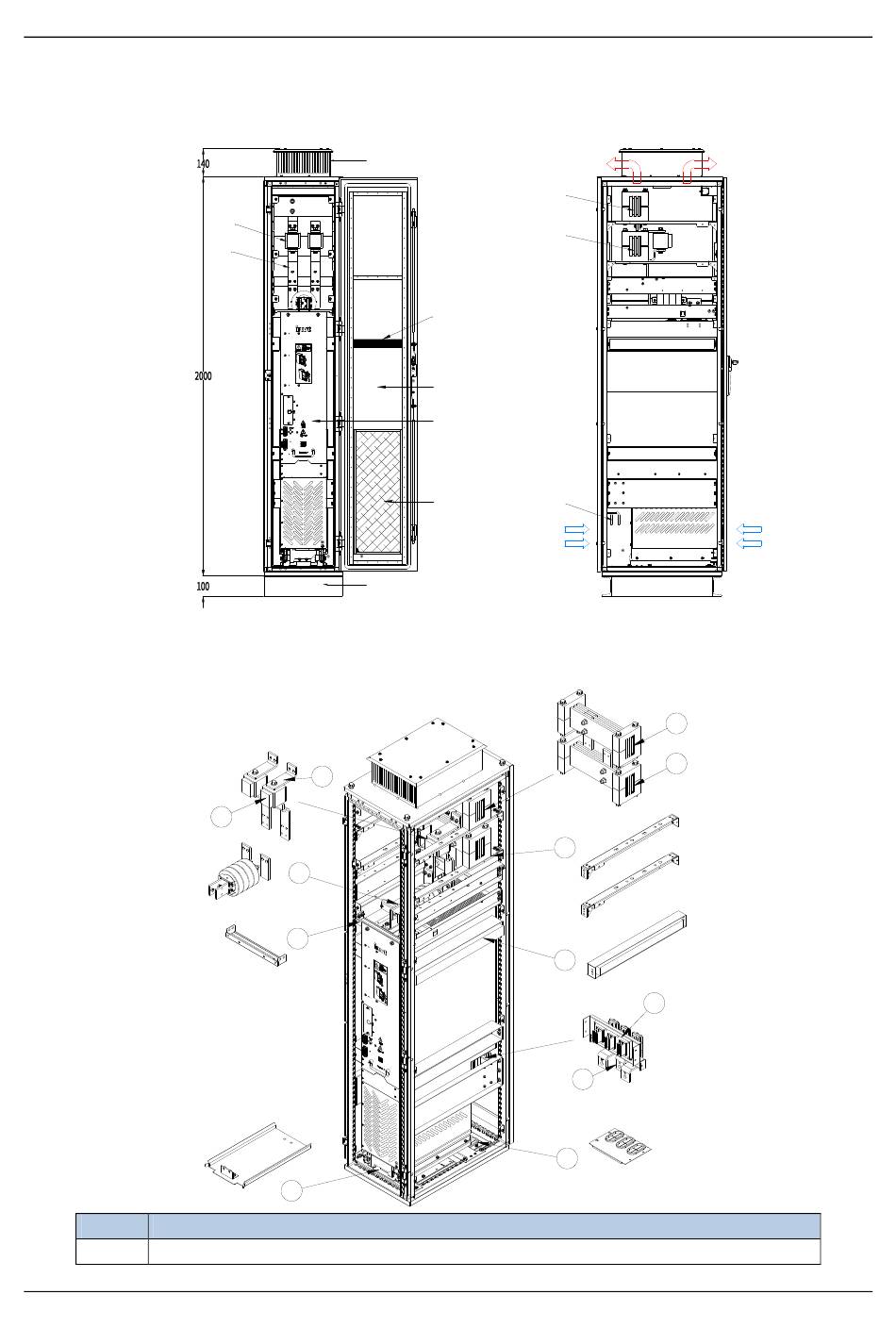

Figure 3-23 shows the cabinet layout for one A8i inverter unit without the precharge function.
Figure 3-23 400mm-wide cabinet layout for one A8i inverter unit without the precharge function
Figure 3-24 shows the installation of one A8i inverter unit without the precharge function in a cabinet.
Figure 3-24 Installing one A8i inverter unit not without the precharge function in a 400mm-wide cabinet
No.
1
202311 (V1.0)
Cabinet-top air ouelet cover
DC fuse
Input copper bar
Cabinet
Channel steel base
1
2
3
4
5
(+) bus
(-) bus
Sealing sponge
Front
Inverter unit
Output copper bar
Front-door air inlet
8
9
10
12
Name
Input copper bar
Mechanical installation
6
7
11
