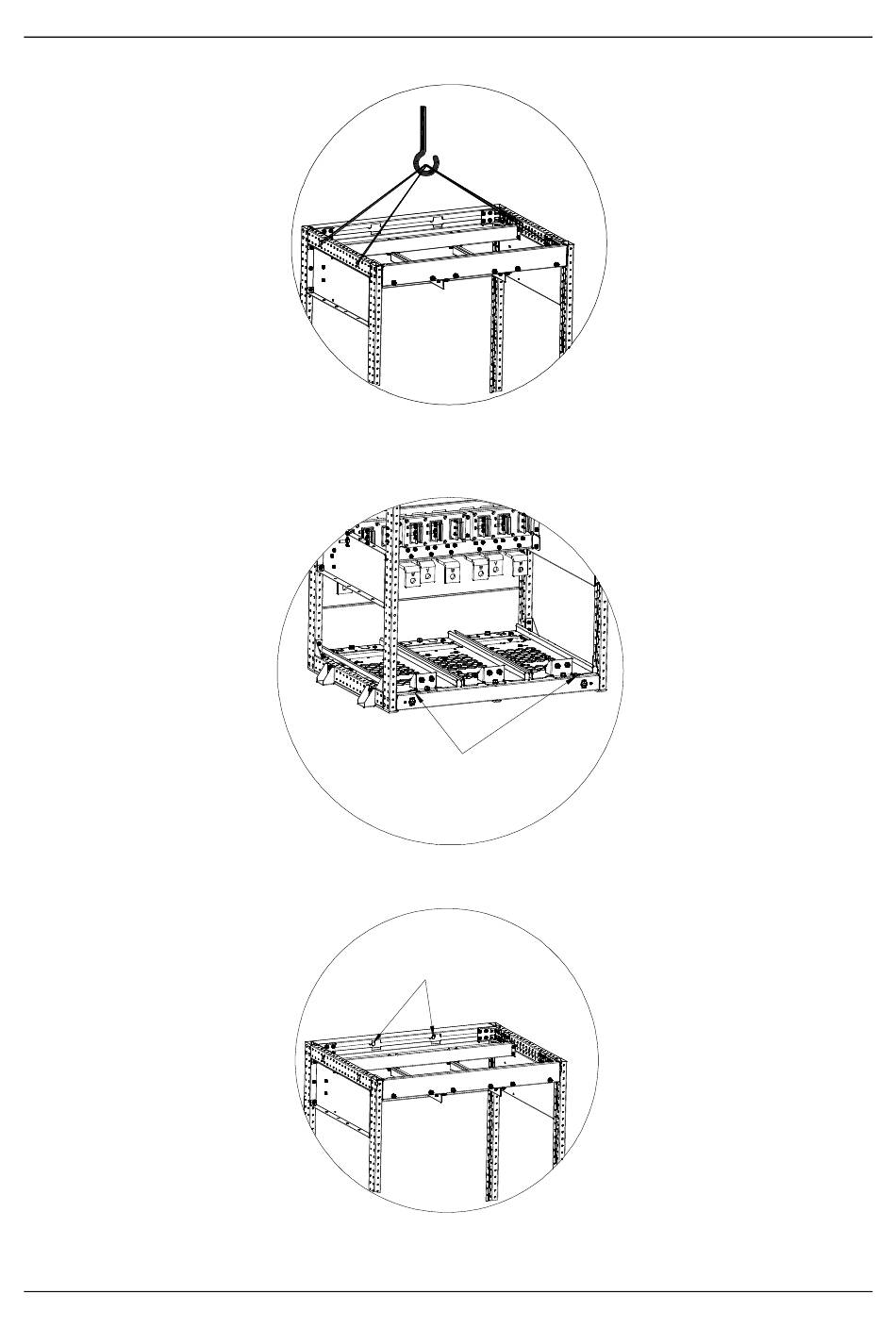

Step 3 Lift the frame.
Step 4 When the bottom of the frame is in contact with the bottom of the cabinet, manually push the
frame to the specified position and lock the bottom of the frame with four M10 screws.
Step 5 Tighten the two M8 screws at the frame top.
Step 6 Place the rail and push the A8i modules through the rail.
202311 (V1.0)
Use four M10 screws for fixing at the bottom.
(The other two are at the same locations at
the back.)
Use two M8 screws
for fixing at the top.
