Positioning hole
Positioning hole
Note:
 The ICU assembly plate must be a exposed metal plate and ensure that the metal plate can be reliably
grounded.
 The ICU housing will be connected to the cabinet housing via a grounding plate.
202311 (V1.0)

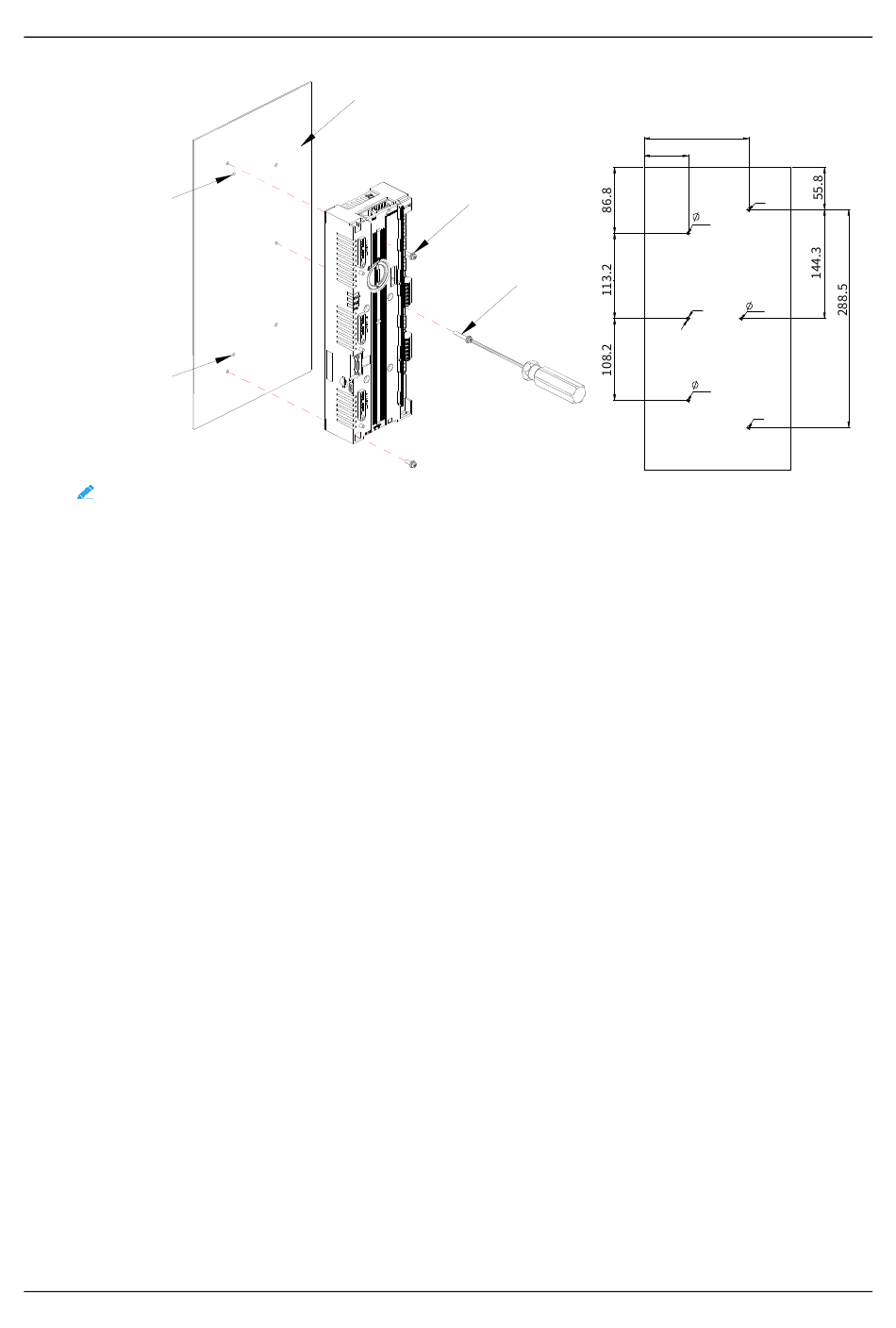

Figure 5-3 ICU installation diagram
Metal conductive plate
Two M4×12 combination screws
One M4×25 combination screw
Inverter Control Unit (ICU)
142.5
59.7
M4
3.5
M4
3.5
3.5
M4
77
