Goodrive880 Series Inverter Unit Hardware Manual
3.3.5.10 Keypad installation
The GD880-51 inverter unit is equipped with an externally mounted keypad (as shown in Figure 3-41), which
is used with a keypad bracket that can be fixed to the cabinet door or external support sheet metal, and the
keypad bracket mounting structure is shown in Figure 3-42.
202311 (V1.0)

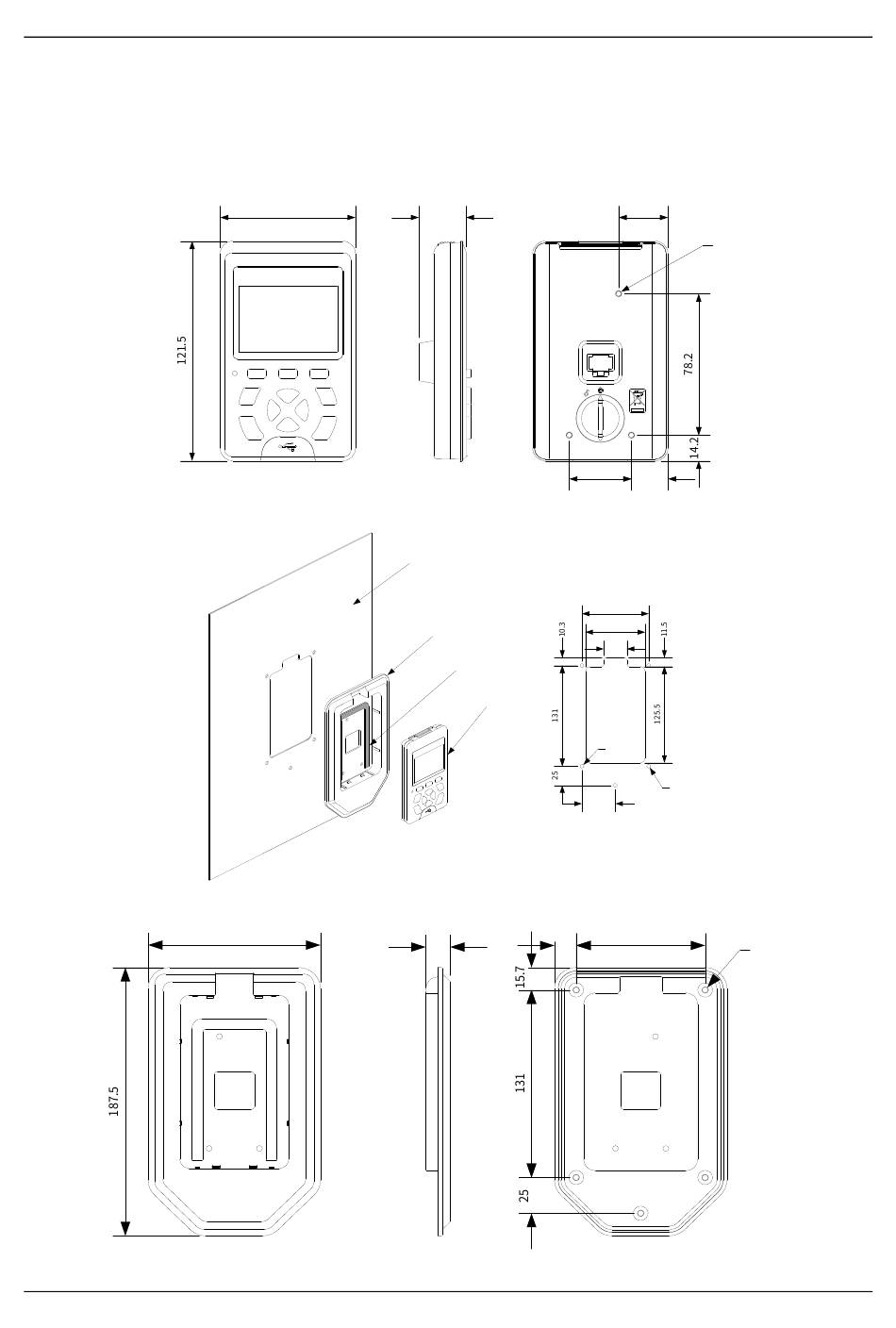

Figure 3-41 LCD keypad structure (unit: mm)
74
Figure 3-42 Mounting the keypad bracket
Figure 3-43 Keypad bracket dimensions (unit: mm)
116.3
25.8
Sheetmetal
Keypad bracket
Waterproof tape
Keypad
Recommended hole size for
keypad bracket installation
14.6
26
Mechanical installation
27
3-M3
34
20
87
78
30
4-R6
5-ø5.0
43.5
87
5-M4
57
