Note: A 40X40 sealing sponge must be used at the position corresponding to the air baffle in the
front/back door panel, which prevents air duct reflow.
3.3.5.6 Layout and mounting for three A8i units
Figure 3-29 shows the 800mm-wide cabinet layout for three A8i inverter units.
DC fuse
Input copper bar
Cabinet
202311 (V1.0)
Side air baffle assembly (with sealing sponge)

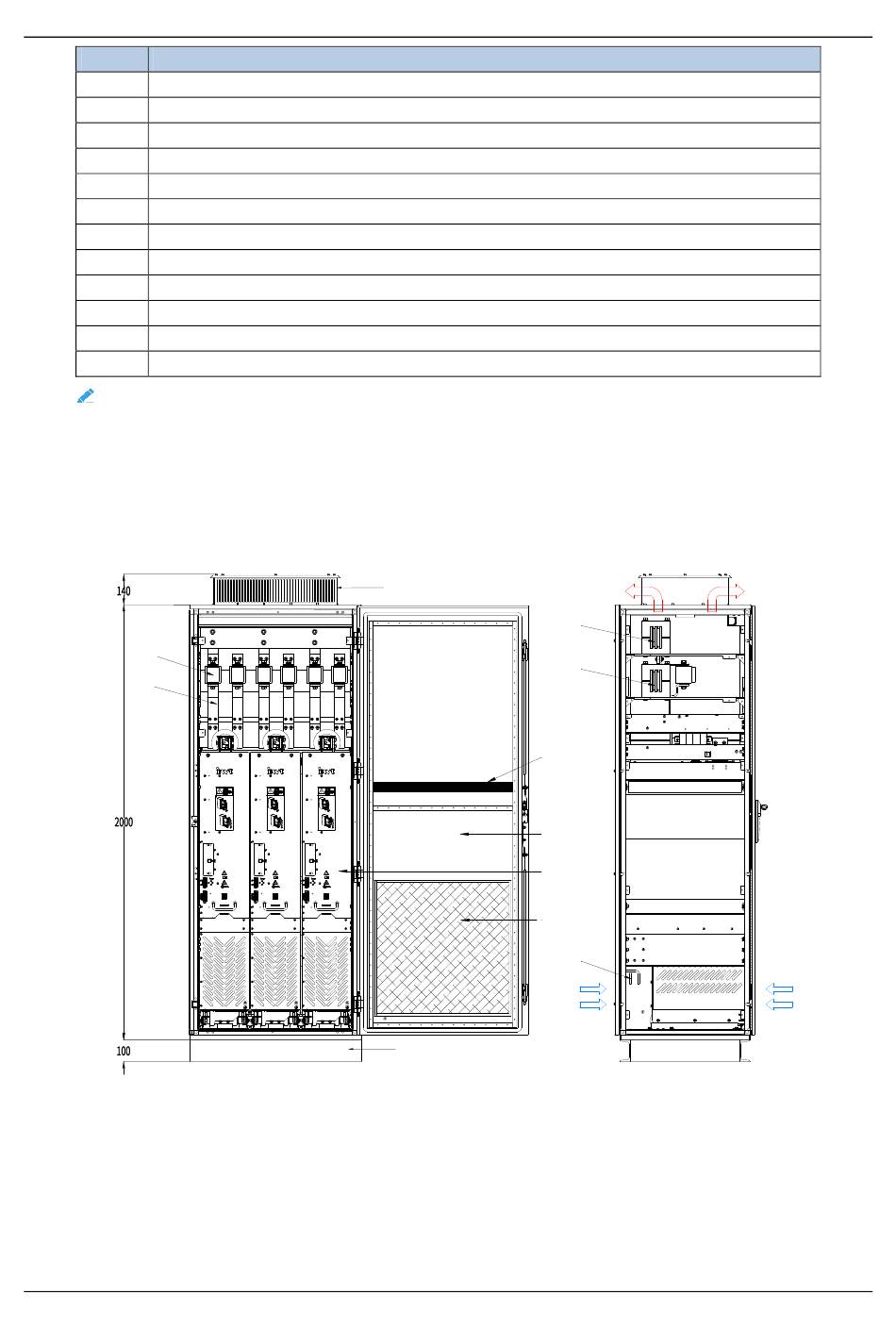

Figure 3-29 800mm-wide cabinet layout for three A8i inverter units
Name
Input copper bar
DC fuse
Magnet ring assembly
Unit top fixed beam
Unit bottom fixed plate
(+) busbar and busbar clamp
(-) busbar and busbar clamp
Busbar clamp fixed support
Output copper bar
Fast connector female end
Bottom outgoing hole
Cabinet-top air ouelet cover
Sealing sponge
Front door
Inverter unit
Front-door air inlet
Output copper bar
Channel steel base
Mechanical installation
(+) bus
(-) bus
