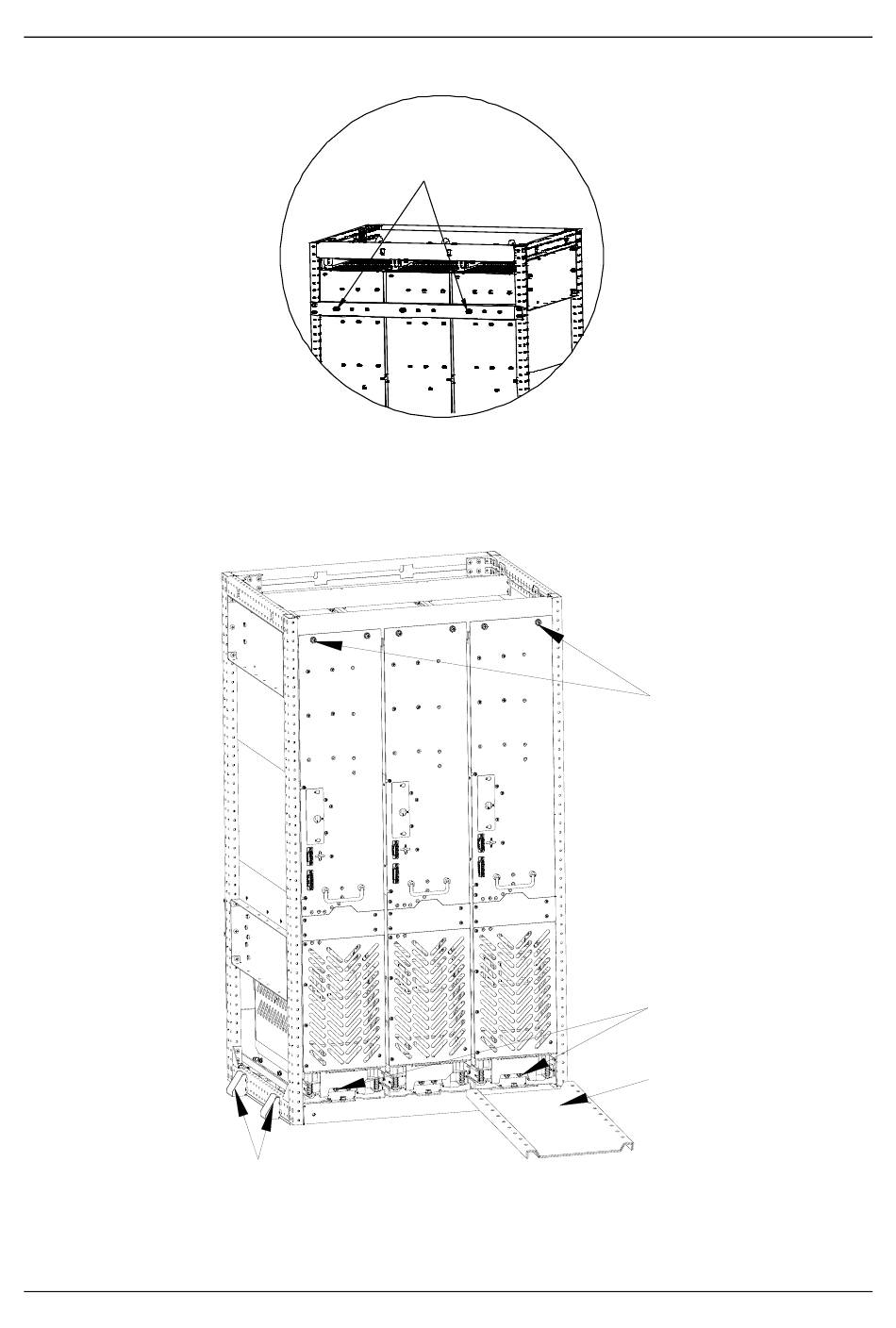

Step 1 Remove the screws for fixing during transportation from the frame back.
Step 2 Remove the four frame-fixing assemblies (b), and lift the entire frame to a level ground. Remove the
eight M8 screws from the two A8i modules, place the installation rail (c), and pull the sideward two
A8i modules out of the frame (to decrease the weight of putting the frame assembly into the
cabinet).
202311 (V1.0)
Remove the screws for
fixing the units during
transportation.
b
Mechanical installation
a
a
c
