Goodrive880 Series Inverter Unit Hardware Manual

5.3 ICU size and installation

5.3.1 Preparing

Before installation, ensure the cabinet has been powered off (excluding external power) for at least 25

minutes.
Prevent the ICU from falling or shock to avoid damage.

Do not disassemble the ICU to avoid damage.

Do not fasten with excessive torque; otherwise, terminals may be damaged.

5.3.1.1 Required tools
1# Phillips screwdriver may be required during installation.
5.3.1.2 Fastening torque
Screws are used to install the ICU with fastening torque.

5.3.2 ICU size

202311 (V1.0)
Screw
M4

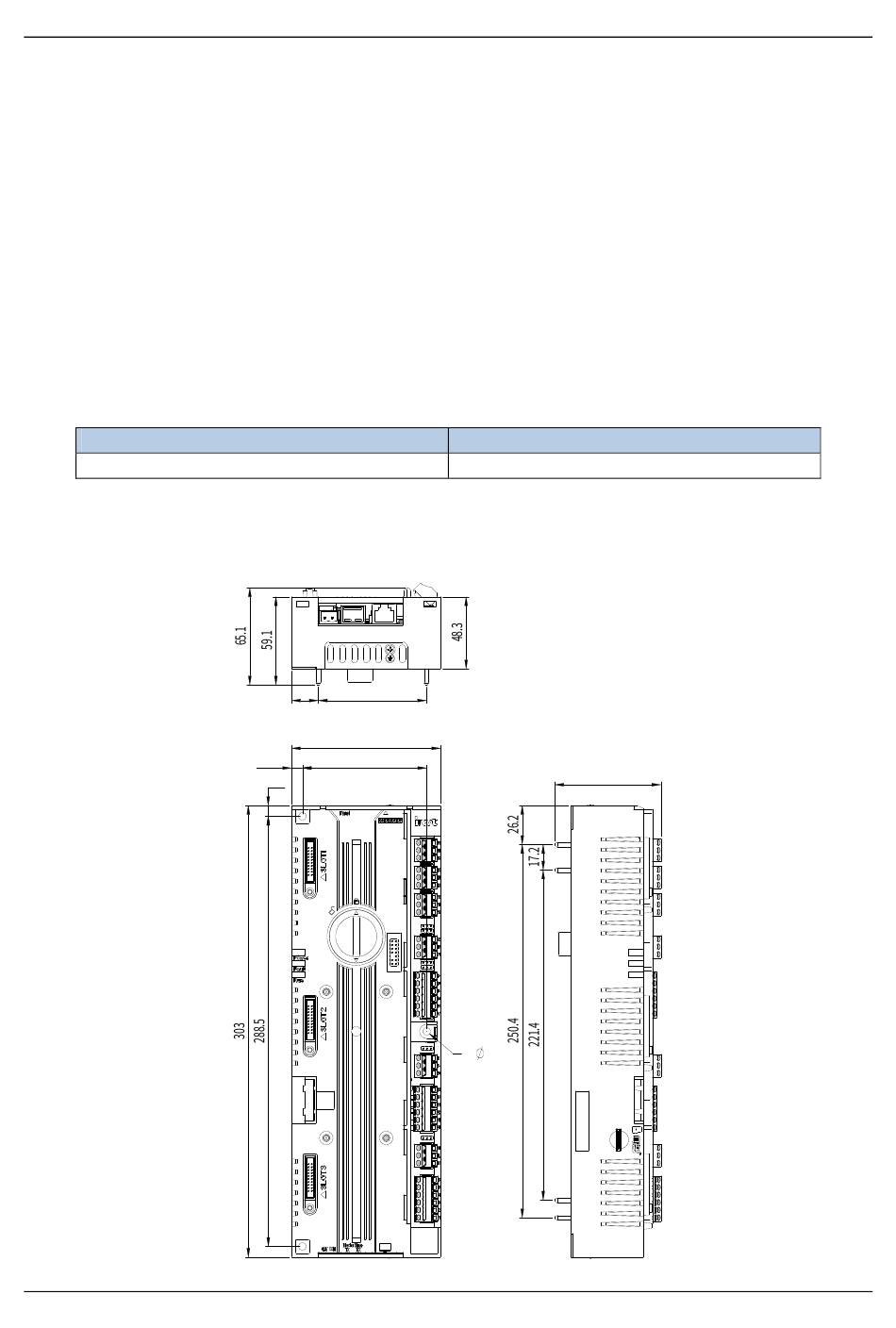

Figure 5-1 ICU dimensions (unit: mm)
17.9 72.2
99.5
7.3 83
7.3
Fastening torque
1.5N.m
70.8
3- 5.0
Inverter Control Unit (ICU)
75
