5.5.2 SLOT expansion application

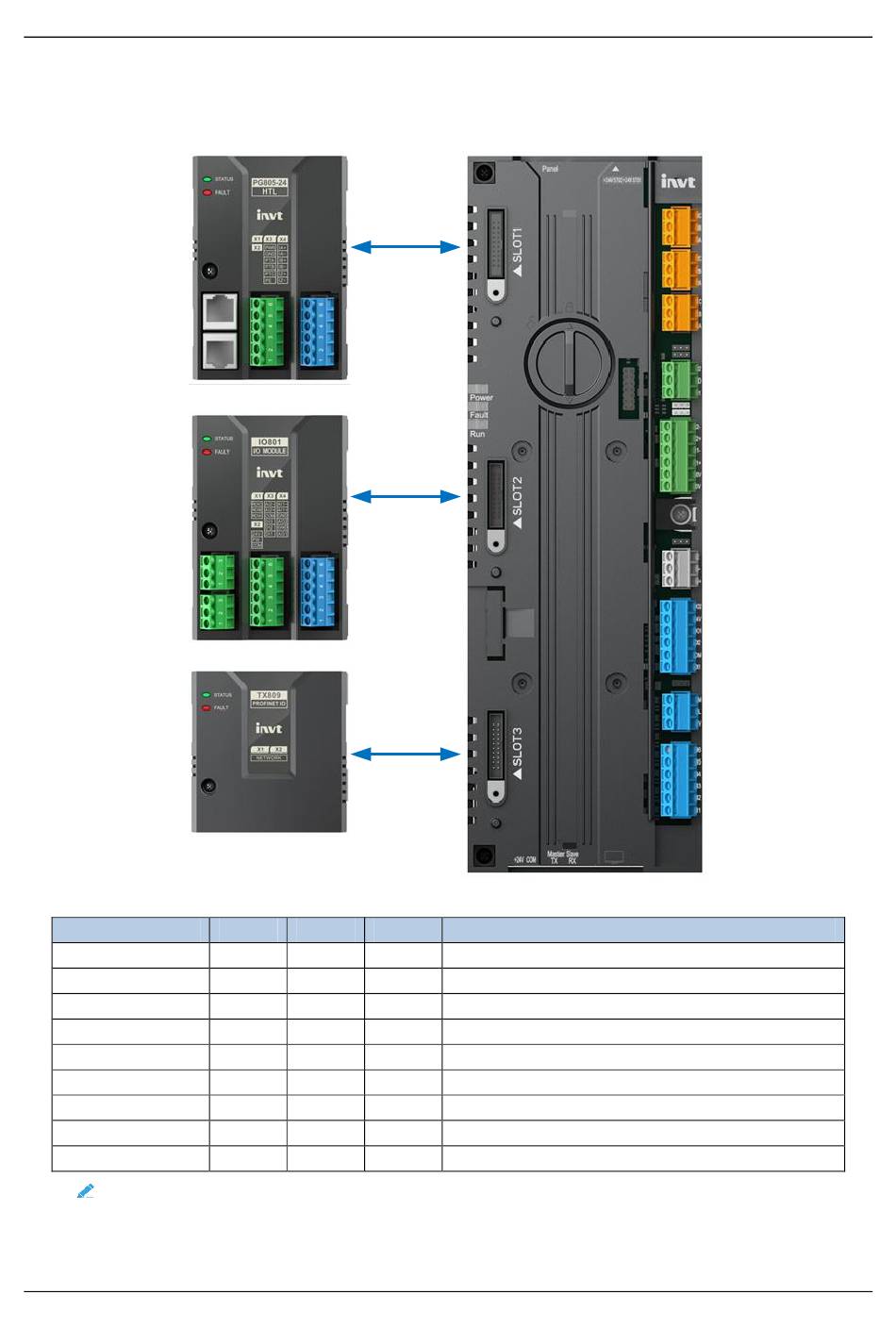

The ICU can cooperate with different functional modules, which are directly installed on the SLOT card slot
of the ICU, as shown in the following figure.
Expansion card SLOT1 SLOT2 SLOT3
EC-TX803
EC-TX805
EC-TX809
EC-TX821
EC-TX823
EC-PG805-05
EC-PG805-24
EC-PG804
EC-IO801
Note:
When SLOT2 is empty, EC-TX803 and EC-TX809 can be installed in SLOT1.

EC-TX821 and EC-TX823 can only be inserted in SLOT2 or SLOT3.

202311 (V1.0)
Table 5-3 Expansion card installation description
✓
✓ ✓ ✓
✓
✓
✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
Expansion card type
PROFIBUS-DP
CANopen
PROFINET IO
Expansion module with one optical fiber interface
Expansion module with three optical fiber interfaces
TTL PG card
HTL PG card
Resolver PG card
IO expansion card
Inverter Control Unit (ICU)
