Goodrive880 Series Inverter Unit Hardware Manual

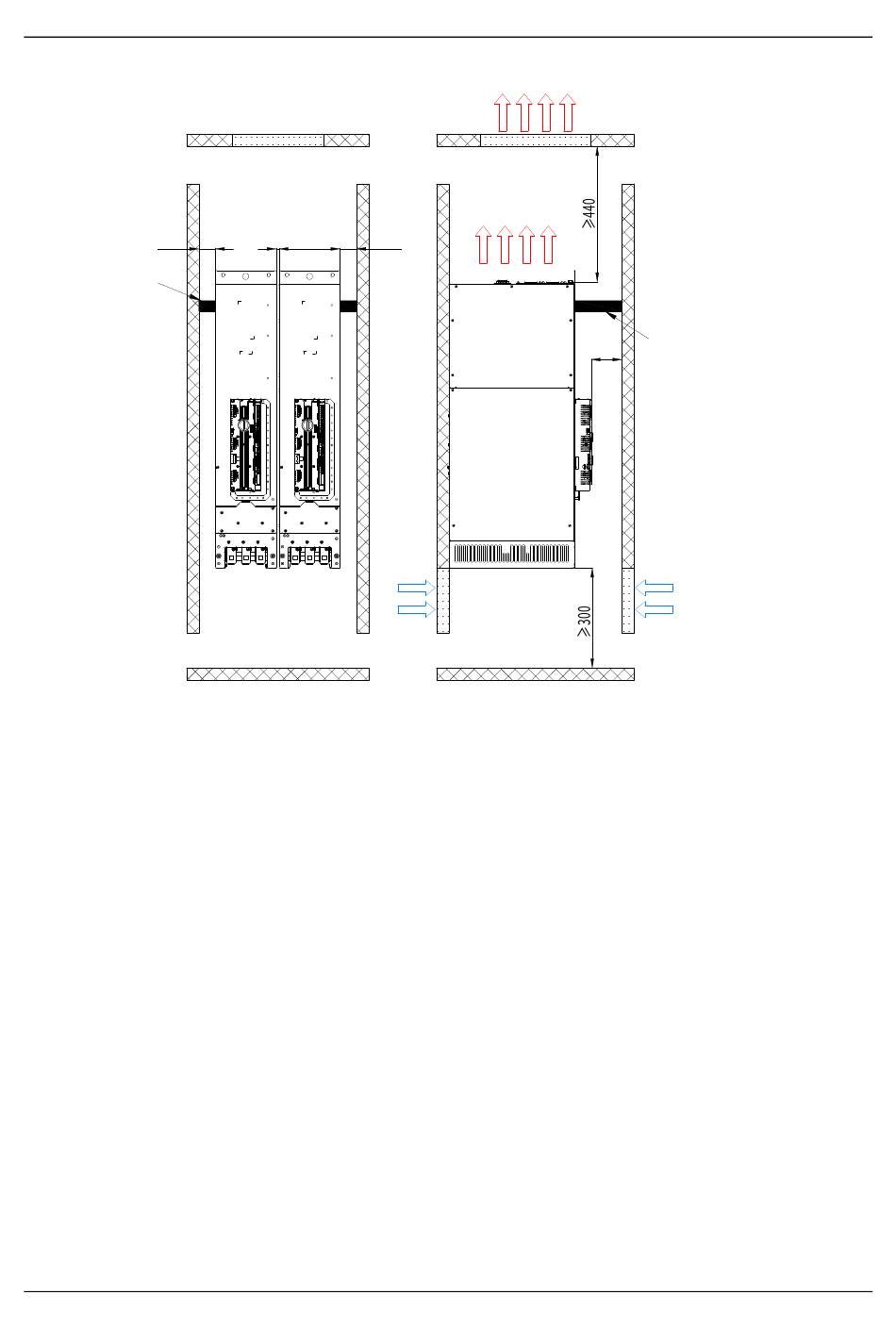

Figure 3-12 Installation space requirements for A6i and A7i inverter units
Selaing
≥20
sponge or
air baffle
3. Installation requirements for A8i inverter units
To ensure that the invert unit is installed reliably and in good heat dissipation, pay attention to the
following:
The inverter unit must be installed and used in a cabinet.

A minimum ventilation clearance must be kept from the top and bottom of each unit to ensure good heat

dissipation. For details, see Figure 3-13.
Both sides of the inverter unit are designed with air baffle and sealing sponge for isolation to prevent the

hot air at the inverter unit top outlet from circulating inside the cabinet and ensure that the heat of the
inverter unit is discharged from the heat dissipation holes at the cabinet top outlet cover. See Figure
3-13.
202311 (V1.0)
≥10 ≥20
U V W U V W
Air inlet
Front view
Air outlet
Sealing sponge or air baffle
≥50
(preventing hot air from
circulating back)
Air inlet
Side view
Mechanical installation
