Goodrive880 Series Inverter Unit Hardware Manual
Dimension drawings

Appendix B Dimension drawings

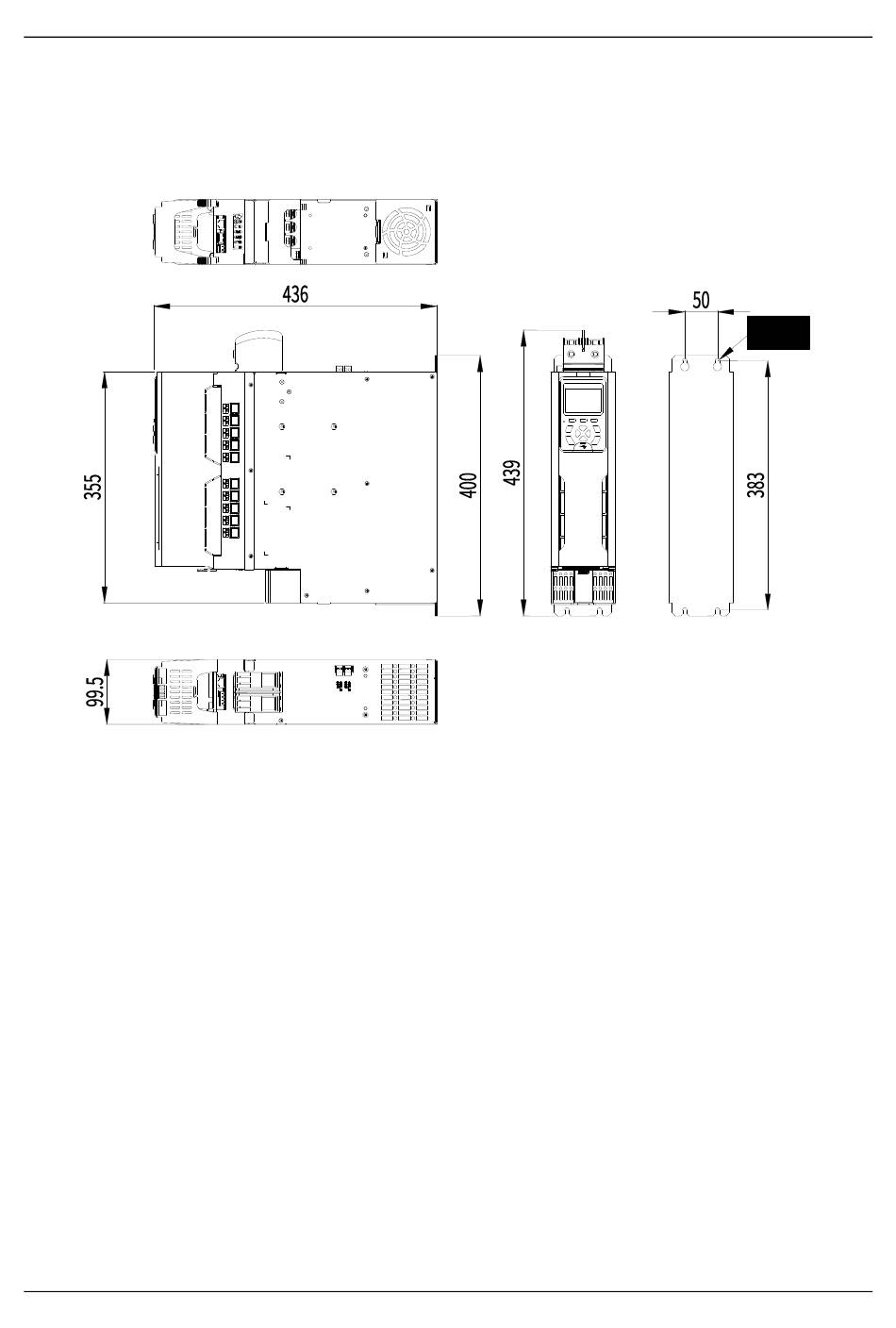

Figure B-1 A1i–A3i structure dimensions (unit: mm)
Hole positions at the back
202311 (V1.0)
