Goodrive880 Series Inverter Unit Hardware Manual
202311 (V1.0)
20
375
187.5
2-∅7.0
4-M8
415
472.4
20
332
259.5
+, - bus copper bar
150
2-10X14
(Middle hole)
U,V,W
2-M6
3-11X11
Square hole

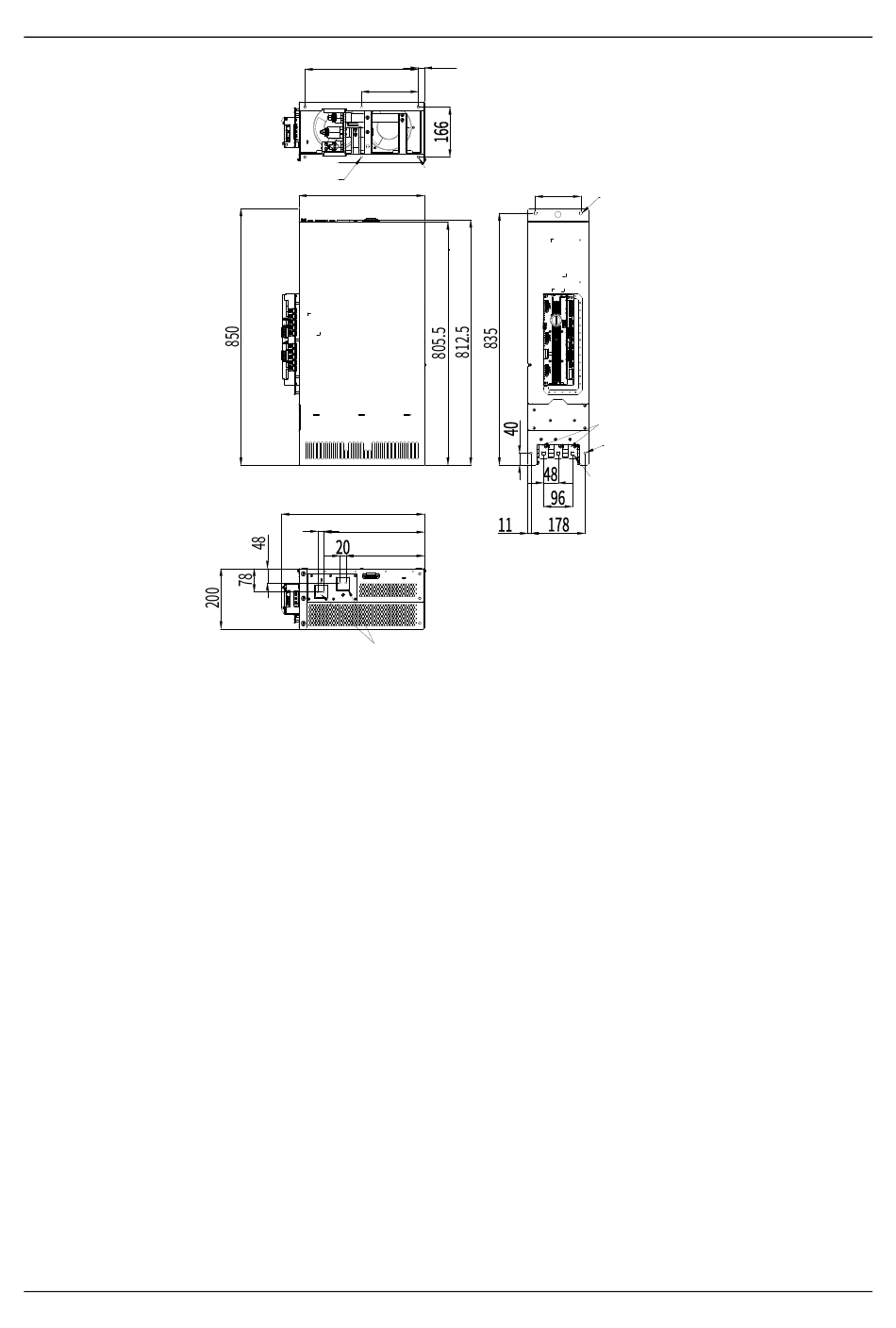

Dimension drawings
106
