Goodrive880 Series Inverter Unit Hardware Manual
A4i inverter unit

No.
1
2
3
4
5
6
7
8
9
10
11
202311 (V1.0)

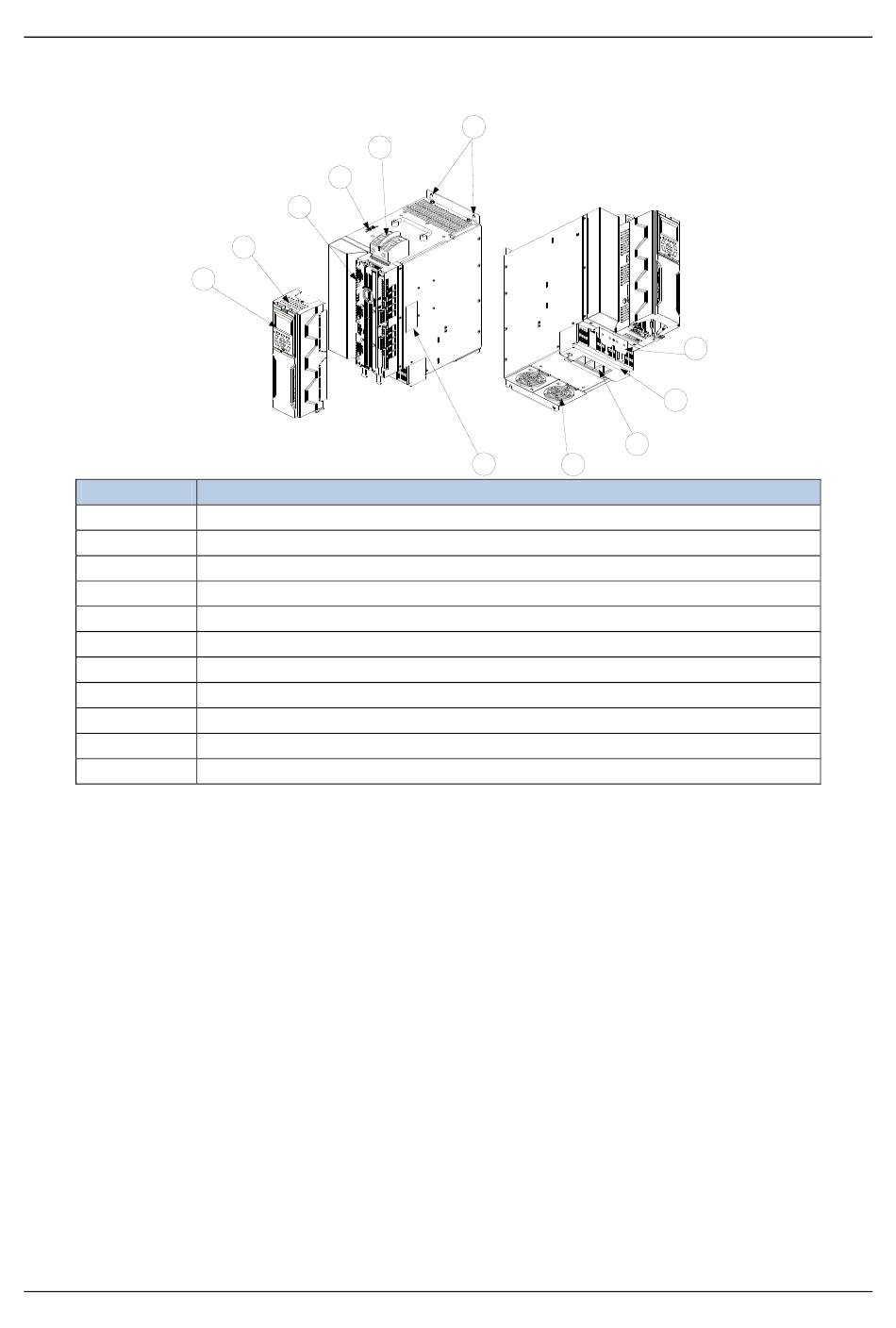

Figure 2-12 Structure of A4i unit
4
3
2
1
LCD keypad
Keypad plastic case bracket
GD880 main control box
24V auxiliary power terminal
(+) and (-) bus input terminals
Fixing holes on the back of the unit (4 in total)
Control cable grounding plate
Output terminal cover (plastic case)
UVW AC output terminals
Fan and fan cover plate
Nameplate
6
5
11
Description
7
8
9
10
Product overview
14
