3.3 Installation procedure

The installation procedure is as follows:
Step 1 Perform unpacking inspection. For details, see section
Step 2 Transport before unpacking. For details, see section
Step 3 Unpack. For details, see section
Step 4 Lift the modules. For details, see section
Step 5 Install the modules. For details, see section

3.3.1 Unpacking inspection

After receiving the product, perform the following steps to ensure the product use safety.
1. Before unpacking, check whether the product package is intact–whether the package is damaged,
dampened, soaked, or deformed.
2. Check whether the nameplate and label on the product body are consistent with the model ordered.
3. After unpacking, check whether the interior surface of the packing box is abnormal, for example, in wet
condition, and whether the equipment enclosure is damaged or cracked.
4. Check whether the parts (including the complete equipment of unit, keypad, and manual) inside the
packing box are complete.

3.3.2 Transportation

The inverter unit is shipped in a wooden box with pallets, which are heavy as a whole and must be carried
with a lifting tool, such as a forklift and crane. Operators must be professionally trained. The inverter unit
must be transported in strict accordance with the allowed ways marked on the box, and not allowed to be
transported upside down or on the sides.
202311 (V1.0)

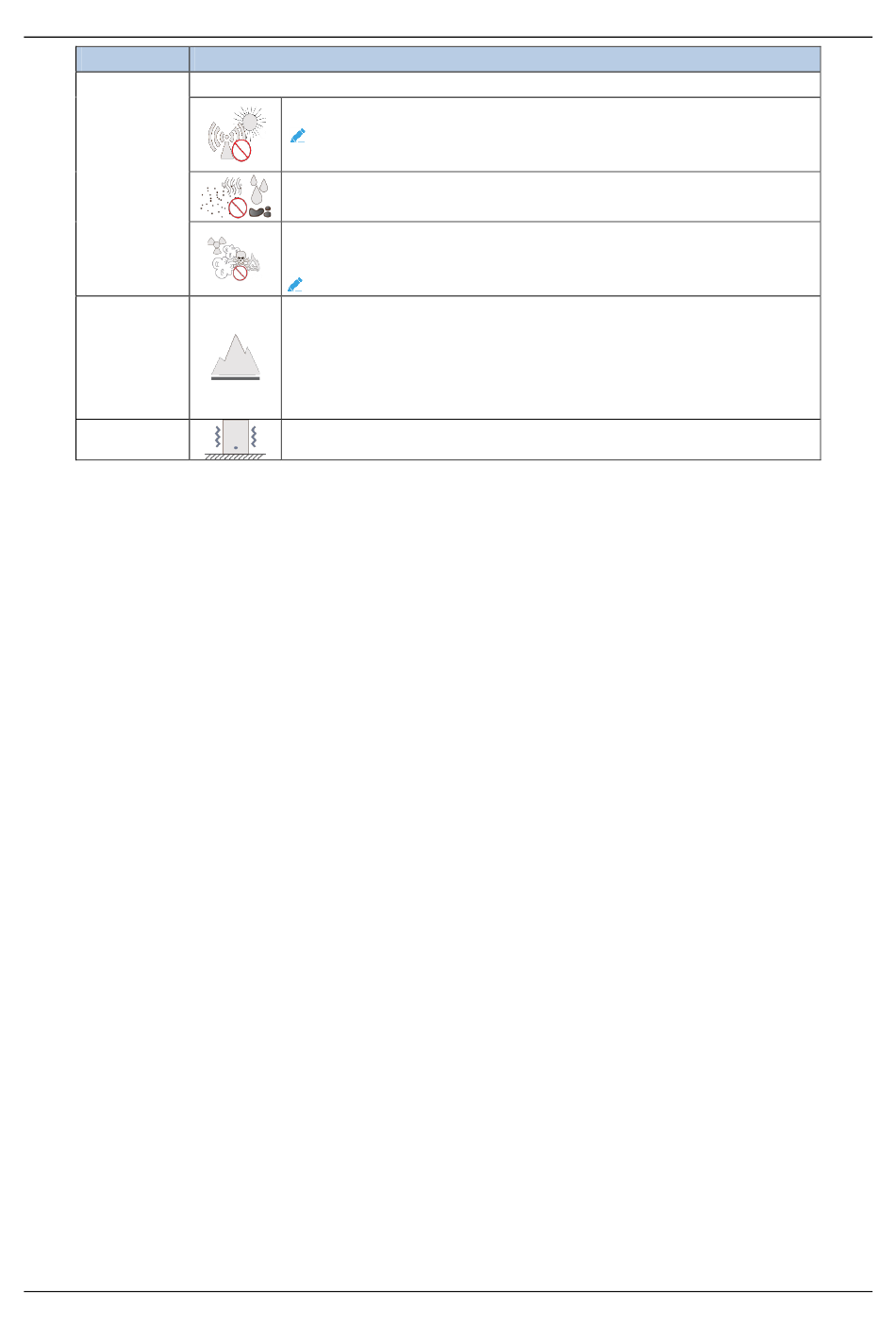

Install the inverter unit in a place:
Without electromagnetic radiation sources and direct sunlight.
Note: The unit must be installed in a clean and well-ventilated
environment based on the housing IP rating.
Without foreign objects such as oil mist, metal powder, conductive dust,
and water.
Without radioactive, corrosive, hazard, and combustible and explosive
substances.
Note: Do not install the unit onto combustible objects.
Lower than 1000 meters

When the altitude exceeds 1000m, derate by 1% for every additional

100m.
When the installation site altitude exceeds 3000m, consult the local

INVT dealer or office.
The max. ACC speed cannot exceed 5.8m/s
Condition
3.3.1 Unpacking
3.3.2
3.3.3 Unpacking.
3.3.4 Lifting.
3.3.5 Installation.
Mechanical installation
(0.6g).
2
inspection.
Transportation.
