Fingers should not
be out of this plane
to avoid pressure
injuries.
Grip the
handle firmly.
When pushing in /out
the unit, use one
foot to apply force to
the unit bottom
while holding the
handle to prevent
the unit from tipping
over.
(3) Ensure that the unit is pushed into place. See Figure 3-38.
Check whether the unit fits in place with
the fixed beam or metal sheet (recommended clearance ≤ 3mm)
202311 (V1.0)

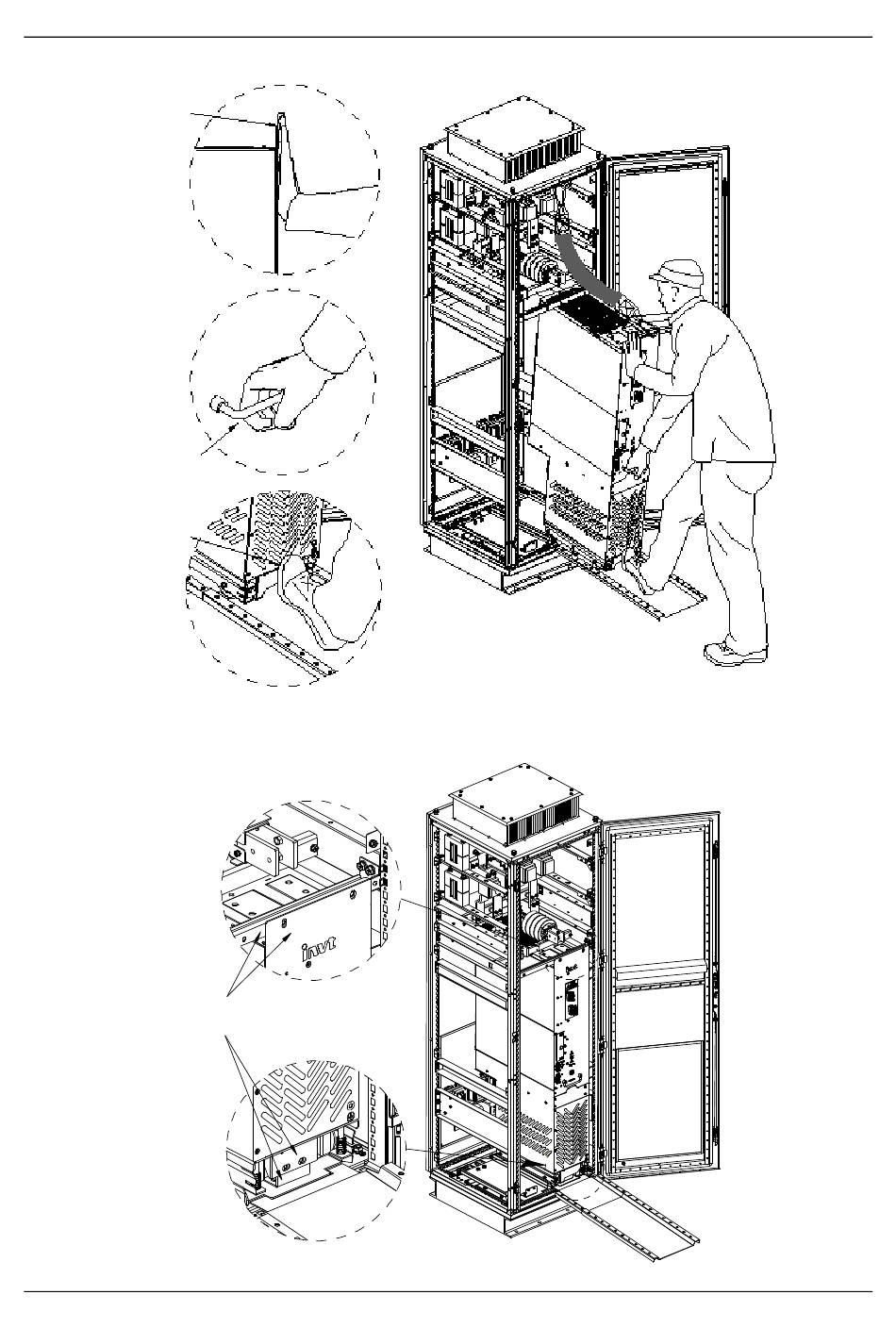

Figure 3-37 Unit entry to the cabinet
Figure 3-38 Checking whether the unit is pushed into place
View of folding the anti-tipping stand
