Goodrive880 Series Inverter Unit Hardware Manual
202311 (V1.0)

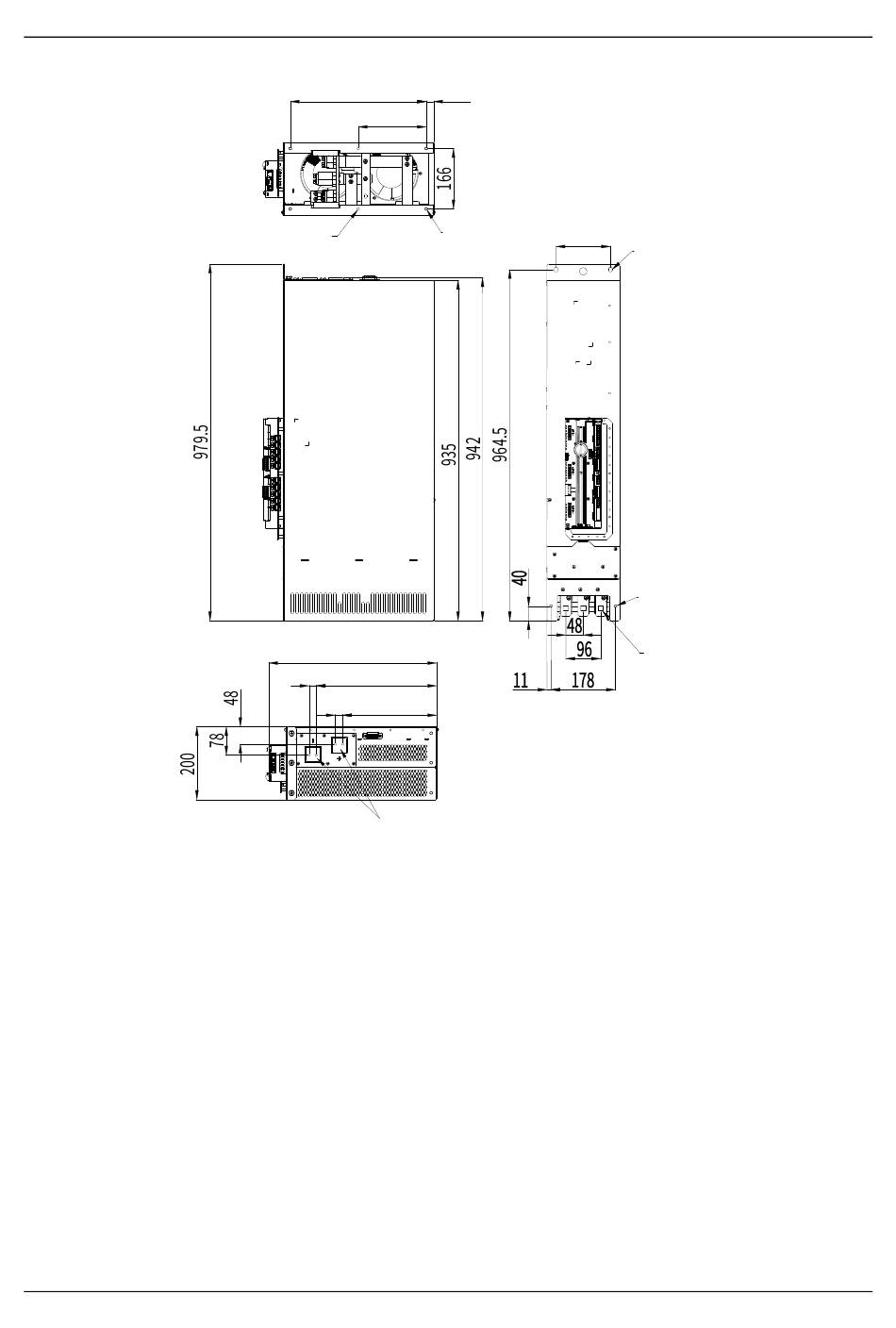

Figure B-4 A7i unit installation dimensions (unit: mm)
375
187.5
2-∅ 7.0
463.3
20
332
20
259.5
+, - bus
20
4-M8
150
U
V
W
Dimension drawings
2-10X14
(Middle hole)
2-M6
3-13X13
Square hole
107
