Goodrive880 Series Inverter Unit Hardware Manual
Step 3 After confirming that the unit is pushed into place, install the unit fixing screws and remove the unit
entry/exit guide rail.
Check whether the unit fits in place with
the fixed beam or metal sheet (recommended clearance ≤ 3mm)
Step 4 Install the (+) and (-) input copper bars of the inverter unit.
202311 (V1.0)

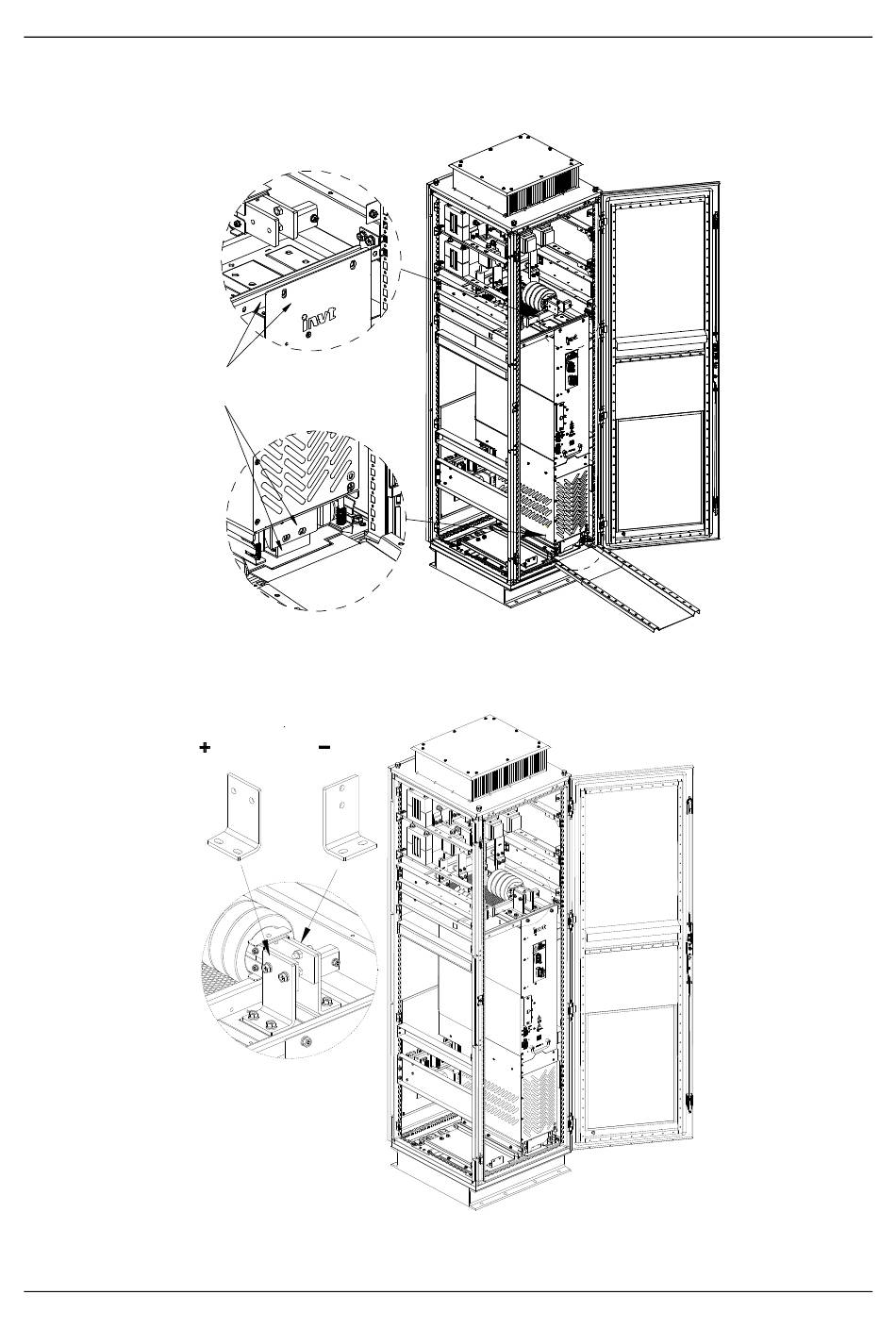

Figure 3-39 Unit fixing
View of folding the anti-tipping stand
Figure 3-40 Unit input copper bar connection
Input copper bar
Input copper bar
Mechanical installation
56
