Goodrive880 Series Inverter Unit Hardware Manual

2.8 Product structure

A1i–A3i inverter units

No.
1 LCD keypad
2 Keypad plastic case bracket
3 GD880 main control box
4 (+) and (-) bus input terminals
5 24V auxiliary power terminal
6 Fixing holes on the back of the unit (four holes)
7 Output terminal cover (plastic case)
8 UVW AC output terminals
9 Control cable grounding plate
10 Fan and fan cover plate
11 Nameplate
202311 (V1.0)

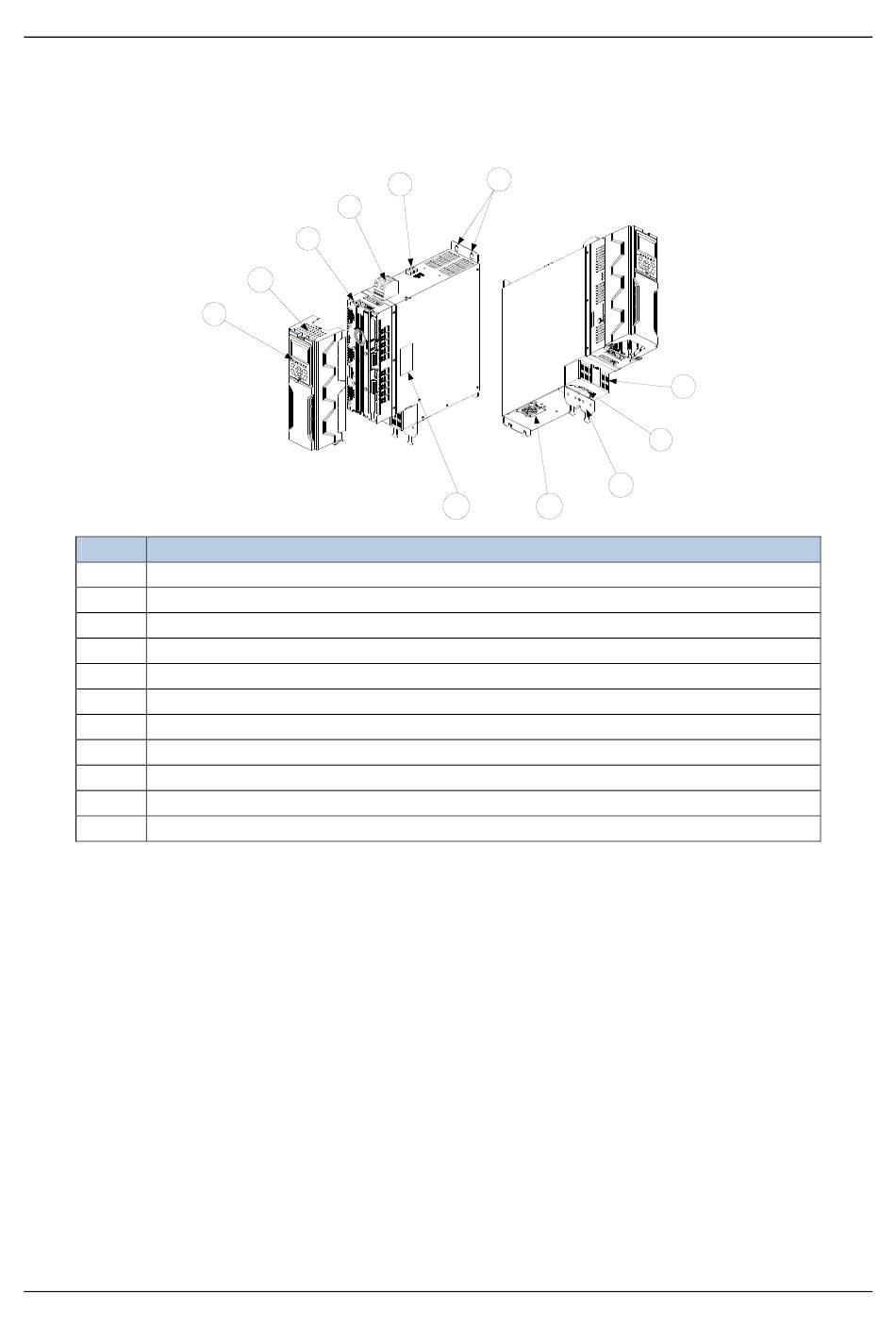

Figure 2-11 Structure of A1i–A3i units
4
3
2
1
6
5
11 10
Description
Product overview
7
8
9
13
